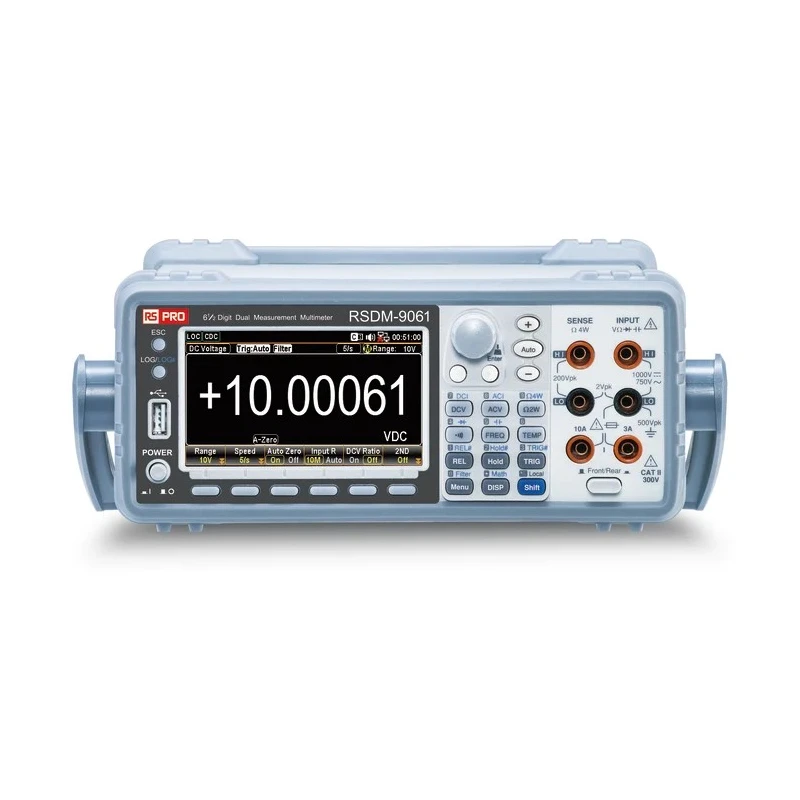

RS PRO Bench Multimeter 10 A dc True RMS Digital 4.3-inch TFT Graphic LCD Display RSDM-9061

RS PRO RSDM-9061 Bench Multimeter is a highly precise and versatile 6 ½ digit benchtop digital multimeter designed for accurate measurement of circuit parameters such as DC and AC voltage, current, resistance, temperature, and capacitance. The model RSDM-9061 features a clear and user-friendly 4.3-inch TFT graphic LCD display providing 1,200,000 counts resolution, ideal for demanding industrial, laboratory, production testing, quality inspection, and educational applications.

The device supports 12 measurement functions including DC and AC voltage and current, 2-wire and 4-wire resistance, frequency, period, diode testing, continuity, and temperature measurements. Its True RMS capability and high DC voltage accuracy of ±0.0035% ensure reliable and stable readings under various testing conditions.

Equipped with a fast sampling rate of up to 10,000 samples per second, the RSDM-9061 enables swift data acquisition with dual measurement functions allowing two parameters to be monitored simultaneously. Further enhancing its usability, the multimeter supports several communication interfaces such as USB host/device, RS-232C, LAN, digital I/O, and an optional GPIB interface for seamless integration into automated test systems.

The rugged and robust design of this benchtop multimeter makes it suitable for permanent fixture on workbenches or system racks, offering durability and stability in everyday use. Graphical analysis options including histogram, bar meter, and trend visualization assist in thorough data evaluation.

Temperature measurement capabilities include support for RTD sensors, thermistors, and thermocouples, expanding its versatility across industrial and laboratory temperature monitoring applications. The compact form factor with dimensions of 302 mm width, 267 mm length, and 107 mm height along with a weight of 3.5 kg make it a practical solution for benchtop setups.

Equipped with 6 ½ digit 1,200,000 counts display. Clear 4.3" TFT graphic LCD display for enhanced visibility. Wide array of 12 measurement functions covering electrical and temperature parameters. High-precision measurement with True RMS and excellent DC accuracy.

Multiple communication interfaces including USB, RS-232C, LAN, and optional GPIB. Fast sampling rate up to 10k samples per second for efficient testing. Graphical measurement analysis including histogram and trend modes.

Supports dual simultaneous measurements for comprehensive testing. Durable design for permanent bench or rack installation. Temperature measurement supporting RTD, thermistor, and thermocouple sensors.

This RS PRO benchtop Multimeter is an essential tool for engineers and technicians in sectors such as industrial manufacturing, laboratory research, electronics repair, and quality assurance. Its high accuracy and versatility make it suitable for detailed circuit testing, design validation, and educational laboratory experiments.
