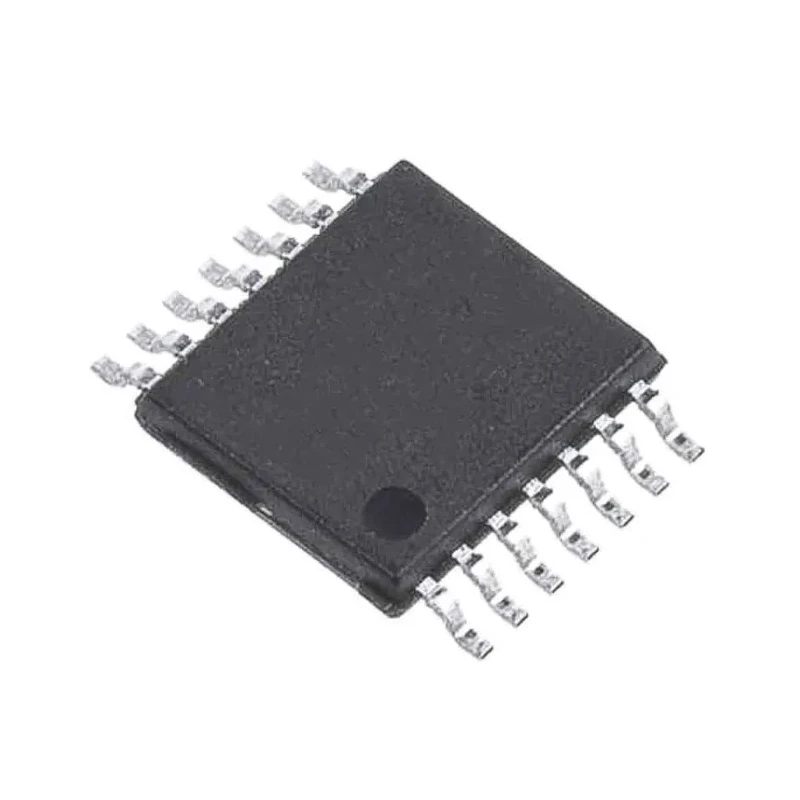

STMicroelectronics Operational Amplifier Quad 20 MHz Gain Bandwidth, Surface Mount 14-Pin TSSOP TSV994IPT
Specifications
| Country of Origin | India |
|---|---|
| Brand | STMicroelectronics |
| Height | 1.05mm |
| Length | 5.1mm |
| Model | TSV994IPT |
| Width | 4.5mm |
| Mount Type | Surface |
| Series | TSV994 |
| Output Current | 35mA |
| Maximum Operating Temperature | 125°C |
| Package Type | TSSOP |
| Minimum Operating Temperature | -40°C |
| Number Of Channels | 4 |
| Standards/Approvals | RoHS |
| Pin Count | 14 |
| Automotive Standard | AEC-Q100 |
| Maximum Supply Voltage | 5.5V |
| Minimum Supply Voltage | 2.5V |
| GBP - Gain Bandwidth Product | 20MHz |
| Input Bias Current | 100 pA |
| Vos - Input Offset Voltage | 7.5 mV |
| Slew Rate | 10V/μs |
| Low input offset voltage | 1.5 mV max. (A grade) |
Key Features
- Quad channel operational amplifier optimizes circuit design efficiency.
- Gain bandwidth product of 20 MHz supports high-speed analog processing.
- Operates at low supply voltages from 2.5 V up to 5.5 V.
- Input offset voltage is low at 7.5 mV ensuring accuracy.
- Supports high output current of up to 35 mA for driving loads.
- Wide operating temperature range from -40°C to +125°C for reliability.
- Compact TSSOP package with 14 pins offers easy PCB integration.
- Low input bias current of 100 pA suitable for sensitive sensor circuits.
Product Description
STMicroelectronics TSV994IPT is a quad operational amplifier designed for surface mounting in a 14-pin TSSOP package. It provides a 20 MHz gain bandwidth product making it suitable for high-frequency analog circuit applications. The device operates on dual supply voltages ranging from 2.5 V to 5.5 V, which supports use in battery-operated and portable electronic systems.
Featuring low input offset voltage of 7.5 mV and low input bias current of 100 pA, the amplifier ensures high precision performance. The slew rate of 10 V/μs and capability to drive output currents up to 35 mA allow it to handle demanding signal conditioning tasks with fast response.
The wide operating temperature range from -40°C to 125°C ensures robustness under varied environmental conditions, including automotive-grade applications as certified by AEC-Q100. The package dimensions (5.1 mm length, 4.5 mm width, 1.05 mm height) facilitate compact PCB layouts.
Ideal uses include sensor signal amplification, active filtering, and portable instrumentation requiring low power consumption (maximum 1.1 mA at 5 V) and precision performance. The TSV994 series is renowned for its stability over capacitive loads, making it a versatile choice for analog front end designs.
Quad channel Operational Amplifier optimizes circuit design efficiency. Gain bandwidth product of 20 MHz supports high-speed analog processing. Operates at low supply voltages from 2.5 V up to 5.5 V. Input offset voltage is low at 7.5 mV ensuring accuracy.
Supports high output current of up to 35 mA for driving loads. Wide operating temperature range from -40°C to +125°C for reliability. Compact TSSOP package with 14 pins offers easy PCB integration. Low input bias current of 100 pA suitable for sensitive sensor circuits.
Includes automotive standard AEC-Q100 certification for automotive applications. Explore our Electronics & Electricals category for more Semiconductor Amplifiers suited for Industrial, Automotive, and Laboratory applications.
Looking to purchase in bulk?
- Purchase item in bulk quantity
- Get best price for your business
Frequently Asked Questions
The gain bandwidth product of this operational amplifier is 20 MHz, making it suitable for high-speed analog processing applications.
The input offset voltage is low at 7.5 mV, ensuring accurate performance in various applications.
It can drive output currents of up to 35 mA, allowing it to handle demanding signal conditioning tasks.
This model operates on dual supply voltages ranging from 2.5 V to 5.5 V, suitable for battery-operated and portable systems.
The operational amplifier has a wide operating temperature range from -40°C to +125°C, ensuring reliability under varied conditions.
It comes in a compact TSSOP package with dimensions of 5.1 mm length, 4.5 mm width, and 1.05 mm height, facilitating easy PCB integration.
The slew rate of this operational amplifier is 10 V/μs, allowing for fast response in signal processing applications.
Yes, it includes AEC-Q100 certification, making it suitable for automotive applications.
The input bias current is low at 100 pA, which is suitable for sensitive sensor circuits.
This operational amplifier features four channels, optimizing circuit design efficiency.
It complies with RoHS standards, ensuring it meets environmental regulations for hazardous substances.
It is ideal for applications such as sensor signal amplification, active filtering, and portable instrumentation requiring low power consumption and precision performance.
