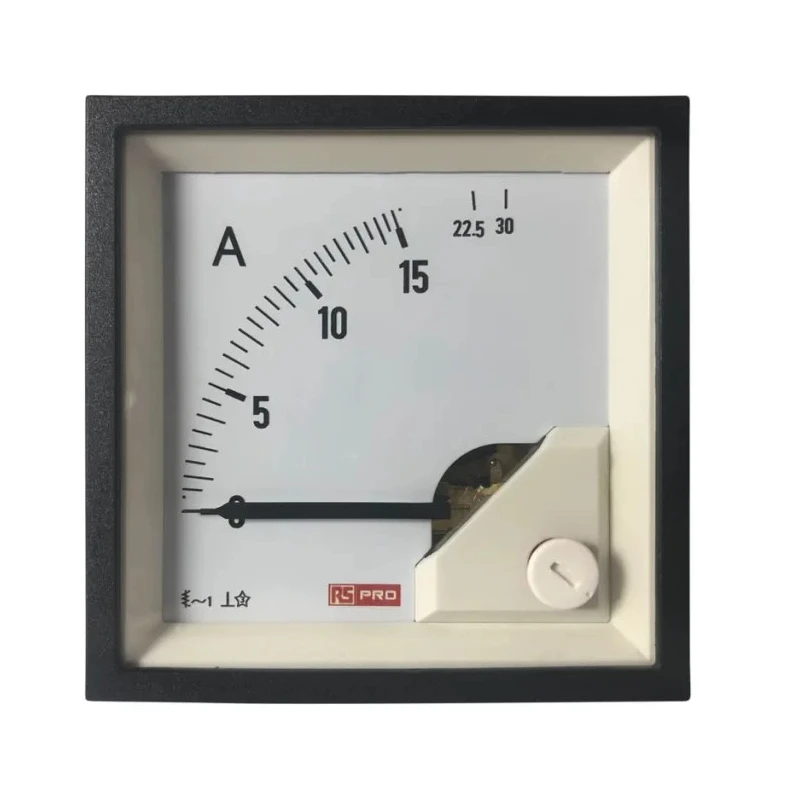

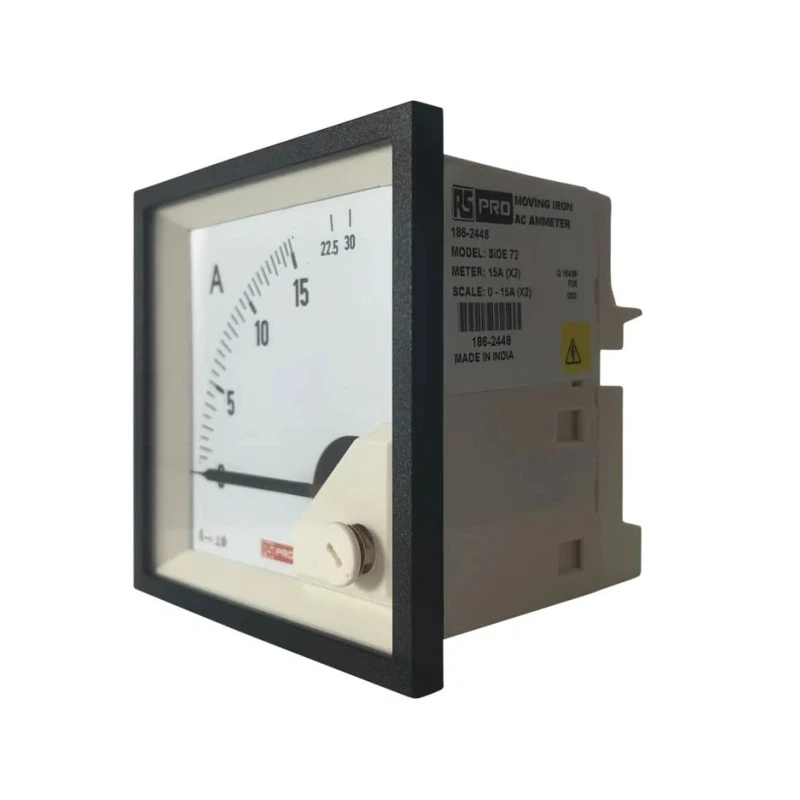

RS PRO Analogue Panel Ammeter 30 A AC, Moving Iron, 68 mm x 68 mm, 1% Accuracy, Model 186-2448

RS PRO 186-2448 Analogue Panel Ammeter is a high-precision instrument designed for AC current measurement up to 30A with a moving iron pointer mechanism. Featuring a 68 mm x 68 mm cut-out dimension, this panel meter is well-suited for installation in control panels, machinery consoles, and switchgear applications within industrial, laboratory, and manufacturing environments.

The meter provides 1% accuracy and true RMS value indication, substantially independent of waveform shape. Scales are calibrated down to 10% with options for overload scales up to six times nominal current, allowing effective monitoring of motor inrush currents. Its knife-edge pointer deflection ranges from 0° to 90°, offering clear and precise reading.

Constructed with a moulded polycarbonate case, the device offers robust mechanical shock resistance up to 15g and is rated to operate reliably between -10°C and 65°C ambient temperature ranges with less than 75% annual average relative humidity (noncondensing). It conforms to multiple international standards including DIN 43701, IEC51/DINEN60051, UL 94 V-0, IEC 529, EN 61010, VDE/VDI 3540, and IEC 61010, and is CE certified with EMC and low voltage directives compliance.

This Analogue Panel Ammeter is ideal for precision AC current monitoring in industrial automation, process control, HVAC systems, electrical testing, and various commercial and manufacturing applications. It enhances operational safety and efficiency by providing accurate real-time current readings in diverse electrical setups.

Measurement ranges from 0A to 30A AC using a moving iron mechanism. Accurate to within 1% and suitable for true RMS value indication. Compact 68 mm x 68 mm cut-out size compatible with DIN style panels. Operating temperature range spans -10°C to 65°C for diverse environments.

Shock resistant design withstands 15g pulse duration for robust industrial use. Overload capability up to twice nominal continuous current for motor inrush monitoring. Polycarbonate moulded square case fits control and switchgear panels securely.
