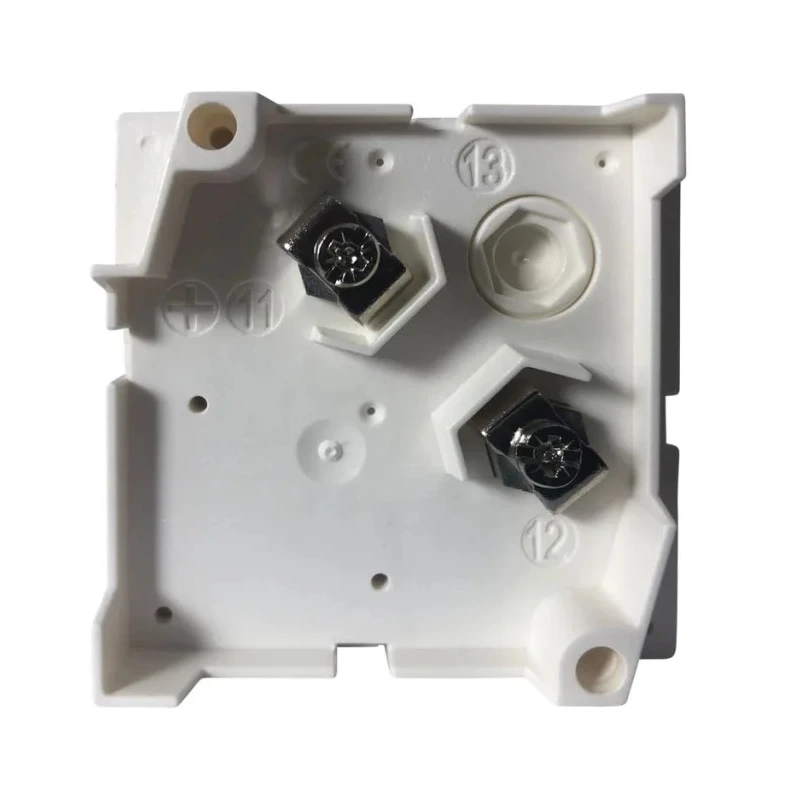

RS PRO Analogue Panel Ammeter 3 A AC, 68 mm x 68 mm, 1 % Moving Iron 186-2441
Specifications
| Country of Origin | India |
|---|---|
| Relative Humidity | Less than 75% annual average (noncondensing) |
| Brand | RS PRO |
| Model | 186-2441 |
| Depth | 54mm |
| Maximum Operating Temperature | 65°C |
| Current Type | AC |
| Pointer | Knife-edge type |
| Meter Accuracy | 1 % |
| Minimum Operating Temperature | -10°C |
| Shock Resistance | 15g for pulse duration 11 milliseconds |
| Overload | 2 times nominal current (continuous) |
| Standards/Approvals | VDE 0100-410:2018-10, DIN 43718, IEC 61010, DIN 43802, DIN 43807, IEC51/DINEN60051, DIN IEC 61554, IEC 529, UL 94 V-0, ISO 20653:2006-08, DIN 43701, EN 61010 |
| Cutout Height | 68mm |
| Cutout Width | 68mm |
| Maximum Measurement | 3 A |
| Moving Element | Moving Iron |
| Maximum Ampere Value | 3 A |
| Pointer deflection | 0° to 90° |
| VDE 0100-410 | 2018-10 approved |
| ISO 20653 | 2006-08 |
| Nominal range of use | 100mA to 100A direct connection |
| Standards/Approvals VDE 0100-410 | 2018-10, DIN 43718, IEC 61010, DIN 43802, DIN 43807, IEC51/DINEN60051, DIN IEC 61554, IEC 529, UL 94 V-0, ISO 20653:2006-08, DIN 43701, EN 61010 |
Key Features
- Measures AC current with 1% accuracy using moving iron technology.
- Nominal current range from 100mA to 100A direct connection.
- Compact moulded polycarbonate case sized 68 mm x 68 mm for panel mounting.
- True RMS measurement provides accurate readings regardless of system waveform.
- Operating temperature range from -10°C to 65°C for varied environments.
- Overload capacity up to 2 times nominal current for continuous operation.
- Knife-edge pointer with 0° to 90° deflection ensures clear readouts.
- Shock resistant to 15g pulses lasting 11 milliseconds.
Product Description
RS PRO 186-2441 Analogue Panel Ammeter 3 A AC is a high-precision electrical measuring instrument designed for industrial, laboratory, and process control applications. It features a robust moving iron mechanism housed in a durable moulded polycarbonate case with a 68 mm by 68 mm cutout size, tailored for easy panel installation.
This ammeter measures AC currents from 0 to 3 A with 1% accuracy, offering true RMS readings that ensure measurement reliability across varied system waveforms. The scale calibration down to 10% and overload scales allow monitoring motor inrush currents effectively, which is critical in industrial motor control and diagnostics.
The device operates efficiently across a temperature range of -10°C to 65°C, withstanding mechanical shocks up to 15g and is rated IP52 for resistance against dust ingress and water drips, making it suitable for demanding industrial environments. Its knife-edge pointer and 0° to 90° deflection provide clear, precise visual feedback to operators.
Multiple certifications including VDE 0100-410, IEC 61010, UL 94 V-0, and compliance with EMC and low voltage directives underscore its safety and quality standards. This ammeter supports frequency operations between 15 Hz and 400 Hz, broadening its utility across electrical installation applications.
Ideal for electrical panel mounting, process control systems, and automation setups, this instrument enhances monitoring accuracy and operational safety in electrical and industrial automation environments.
Measures AC currents with 1% accuracy using a moving iron mechanism. Compact 68 mm x 68 mm panel cutout for seamless integration. True RMS measurement independent of waveform variations. Robust polycarbonate casing with IP52 rating for durability.
Shock resistant and temperature rated for industrial conditions. Supports overload up to twice the nominal current continuously. Clear knife-edge pointer with 0° to 90° scale deflection. Compliant with multiple international standards ensuring safety and reliability.
Suitable for automation, manufacturing, process control, and laboratory usage. Explore more industrial and automation measurement instruments at EnvMart.
Looking to purchase in bulk?
- Purchase item in bulk quantity
- Get best price for your business
Frequently Asked Questions
This model measures AC currents from 100 mA to 3 A with a maximum capacity of 3 A for direct connection.
It has an accuracy rating of 1%, ensuring reliable measurements.
It uses moving iron technology to measure AC currents.
The operating temperature range is from -10°C to 65°C, making it suitable for various environments.
The cutout size required for panel mounting is 68 mm x 68 mm.
It can handle an overload of up to 2 times the nominal current continuously.
It features a knife-edge type pointer for clear readouts.
This unit is rated IP52 for protection against dust ingress and water drips.
It complies with multiple standards including VDE 0100-410, IEC 61010, and UL 94 V-0.
It is shock resistant to 15g for pulse durations lasting 11 milliseconds.
This ammeter is suitable for electrical panel mounting, process control systems, and automation setups.
It supports frequency operations between 15 Hz and 400 Hz.
