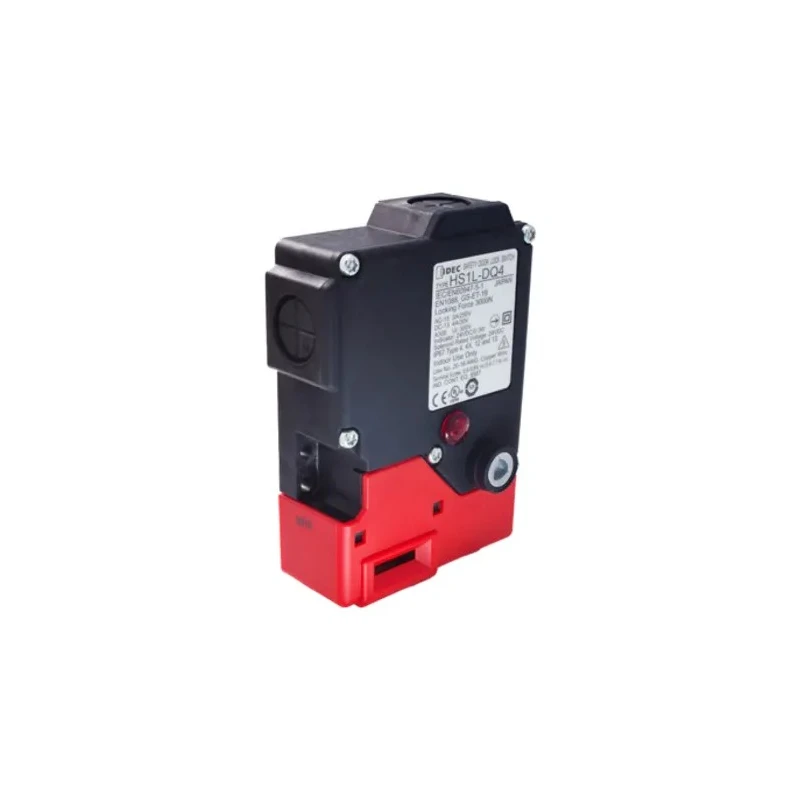

Idec HS1L Series Solenoid Interlock Switch Actuator Included IP67 10A 30V DC 250V AC HS1L

Idec HS1L Series Solenoid Interlock Switch with actuator included offers reliable locking and monitoring solutions for industrial safety applications. Rated IP67, this switch supports a contact current of 10A with a contact voltage of 30V DC and 250V AC, making it suitable for robust electrical environments.

The device provides impressive locking strength of 3000N, the largest in its class, ensuring secure control for large and heavy doors. It shares the same actuator as the HS1E series and has identical dimensions (63mm width, 104mm length, 129mm depth) and mounting hole layouts for easy replacement or installation.

Featuring six contacts in a compact housing, it enables monitoring of door open, closed, and locked statuses for versatile safety automation systems. The solenoid unit is energy-efficient, consuming 32% less current than the HS1E model, enhancing operational economy.

Standard features include a manual unlock key for emergency access during power failure or maintenance, and an independent LED indicator circuit for diverse signaling purposes. The switch supports two locking mechanisms: spring lock which unlocks with energized solenoid, and solenoid lock which locks with energized solenoid, allowing tailored safety strategies.

Wiring is facilitated through M3 terminal screws ensuring secure and reliable electrical connections. The product operates efficiently within a wide temperature range from - 20°C to +55°C. It complies with standards such as cULus, CCC, CE, and TUV, although it lacks hazardous area certification.

This solenoid interlock switch finds application in industrial automation, electrical safety systems, manufacturing plants, and other hazardous machinery monitoring scenarios where door status control is critical. The robust IP67 rating ensures dust and water ingress protection for demanding industrial environments.

Locking strength of 3000N suitable for large, heavy doors. Compact housing with six contacts matching HS1E dimensions and mounting. Energy-efficient solenoid unit consumes 32% less current than predecessor HS1E. Manual unlock key and LED indicator standard for improved functionality.

Two locking mechanisms available: spring lock and solenoid lock with energized solenoid control. Wide operating temperature range from - 20°C to +55°C. M3 terminal screws enable secure wiring connections. Explore more Solenoid Interlock Switches and safety automation components at EnvMart for industrial and commercial electrical protection solutions.
