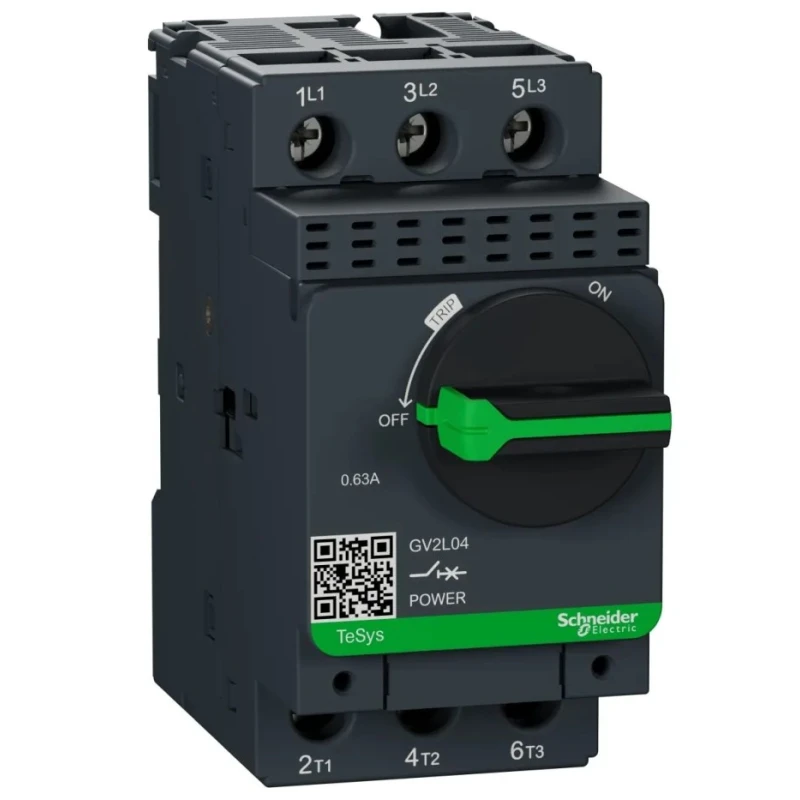

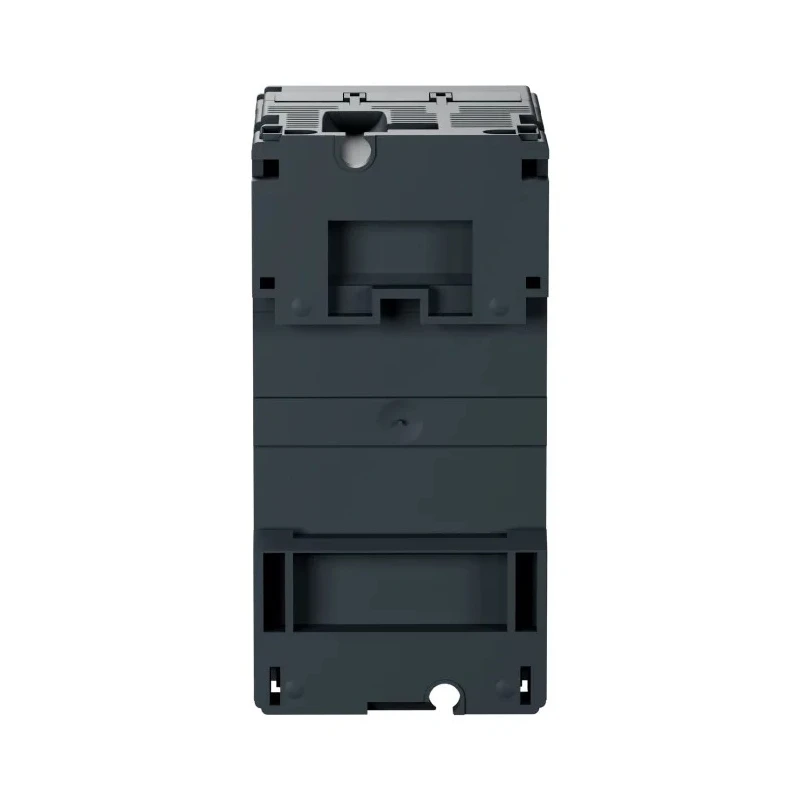

Schneider Electric Motor Protection Circuit Breaker 1.6A, 32 A, 690V AC, Magnetic Trip, 3 Poles GV2L04

Schneider Electric GV2L04 Motor Protection Circuit Breaker, part of the TeSys GV2 series, offers reliable and efficient protection for motors. With a current rating ranging from 1.6A to 32A and a supply voltage of 690V AC, this device is ideal for industrial motor control and protection applications.

The circuit breaker supports 3 poles and features magnetic sensing technology, ensuring sensitive trip operation and robust motor protection. Its compact dimensions - 89mm length, 45mm width, and 97mm depth - allow installation in space-constrained electrical panels.

Designed to operate effectively over a temperature range of -20°C to 60°C, the GV2L04 has an IP20 rating, making it suitable for panel mounting with protection against solid objects.

Certified to international standards including UL 60947-4-1, EN/IEC 60947-4-1, EN/IEC 60947-2, and CSA C22.2 No 60947-4-1, this circuit breaker ensures safety and compliance in demanding environments. The mechanical durability rating of up to 100000 cycles guarantees a long service life.

The rotary knob control enables straightforward operation, and the device forms part of Schneider Electric’s TeSys Island range, offering digital load management compliant with Industry 4.0 standards. This allows for enhanced diagnostics, system optimization, and integration with various fieldbus communications including Ethernet/IP, Modbus TCP, PROFINET, and PROFIBUS.

Designed for motor protection with magnetic trip technology. Supports 3 poles with a supply voltage of 690V AC. Suitable for operating temperatures from -20°C to 60°C. Compact dimensions with 89 mm length, 45 mm width, and 97 mm depth.

Conforms to UL 60947-4-1, EN/IEC 60947-4-1, EN/IEC 60947-2 standards. IP20 rated for dust protection in electrical panels. Mechanical durability up to 100000 cycles ensures long life. Includes rotary knob control for easy operation.

Integrates with Schneider Electric’s TeSys Island system for advanced motor and load management. Compatible with fieldbus protocols such as Ethernet/IP, Modbus TCP, PROFINET, and PROFIBUS.

This Motor Protection Circuit Breaker is widely used in industrial automation, manufacturing, electrical panels, HVAC systems, and other settings that require reliable motor load control. Schneider Electric's GV2L04 ensures enhanced safety, efficiency, and integration capabilities for modern electrical systems.
