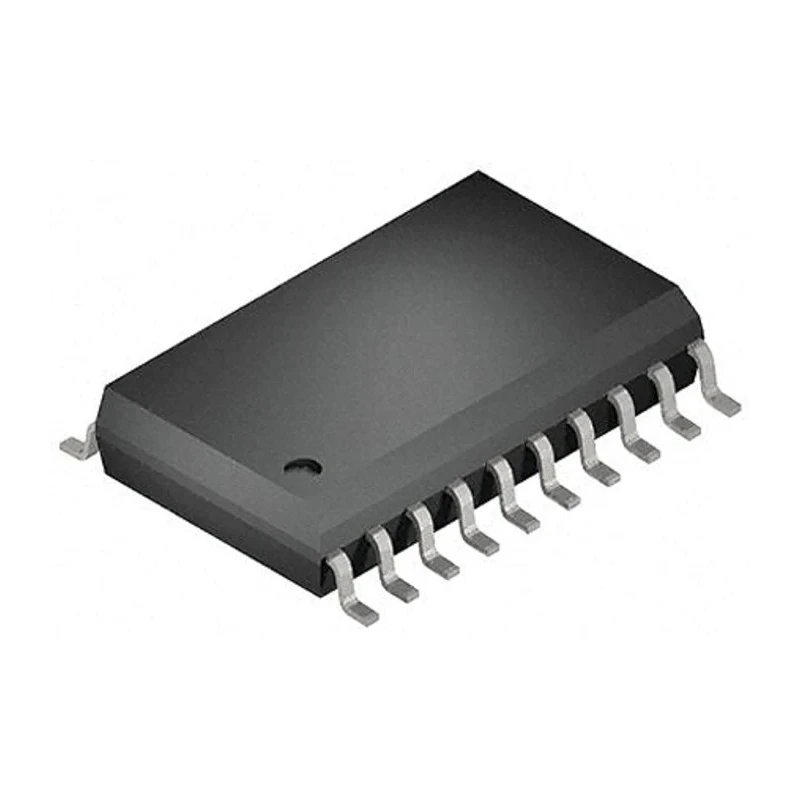

Toshiba 8-Bit Octal D Type Latch Transparent D Type Flip-Flop 20-Pin SOIC 74HC573D

Toshiba 74HC573D is an advanced 8-bit octal D type latch featuring transparent latch mode and D type flip-flop outputs in a 20-pin SOIC surface mount package. It operates efficiently with a supply voltage range from 2V to 6V, suitable for diverse industrial, electronic, and embedded system applications.

This high-speed CMOS latch employs silicon gate C2MOS technology delivering fast switching speeds with typical propagation delay (tpd) of 13 ns at 6.0V, providing rapid data latch and release capability essential for timing-critical digital circuits.

The device includes a latch enable (LE) input to control data latching and an output enable (OE) input that places all outputs in a high-impedance state when activated, facilitating easy bus sharing in complex electronics.

Low quiescent power consumption rated at 4.0 μA max at room temperature aids in designing energy-efficient systems. Protection circuits on inputs guard against static discharge and transient voltage spikes ensuring robust operation and longevity.

With a balanced propagation delay between rising and falling edges, timing skew is minimized which is crucial in synchronized digital logic implementations.

The package is designed for surface mounting in compact printed circuit boards with dimensions length 13.1 mm and height 2.25 mm, making it suitable for space-constrained environments.

Operating temperature range spans from -40°C to 85°C, securing functionality in harsh industrial or automotive conditions. This component is ideal for industrial digital systems, embedded controllers, instructional electronics projects, and commercial applications requiring dependable logic ICs.

This device features a high speed CMOS octal latch with 3-STATE outputs for efficient digital control. Operates over a wide voltage range from 2V to 6V ensuring flexibility in circuit design. The latch enable (LE) and output enable (OE) inputs provide precise control over data flow and output state.

Low power dissipation of 4.0 μA max at 25°C supports energy-efficient applications. Outputs enter high impedance state when OE is high, ideal for bus-oriented systems. Equipped with input protection against static and transient voltages for device reliability.

Balanced propagation delays ensure minimal timing differences between output transitions for consistency. Suitable for surface mount applications with a compact SOIC 20-pin package measuring 13.1mm length and 2.25mm height.

Wide operating temperature from -40°C to 85°C supports industrial and commercial environments. Explore more electronics components and semiconductor products in the EnvMart catalog for comprehensive industrial solutions.
