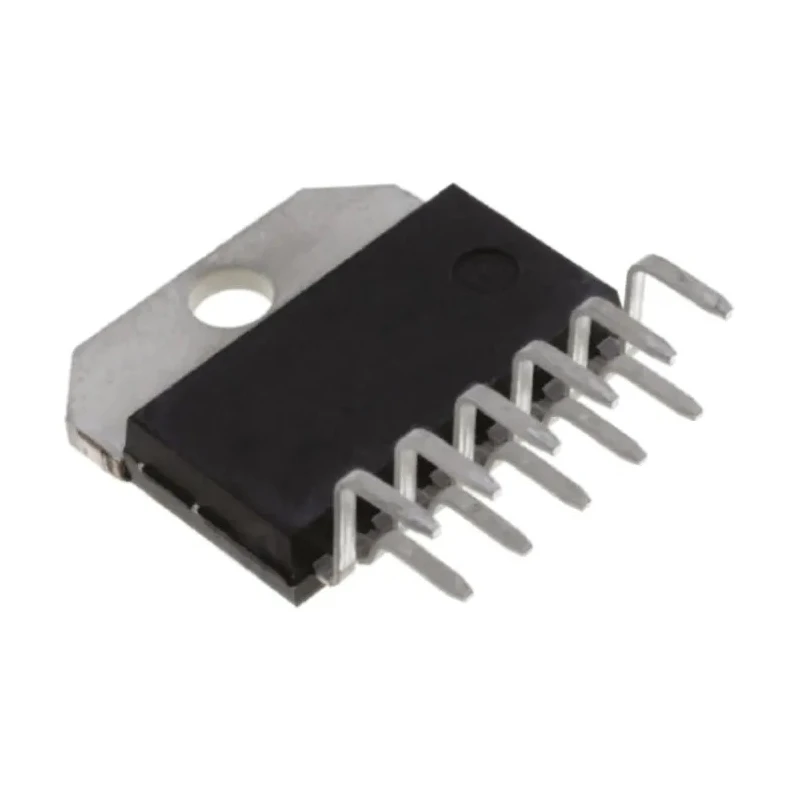

Texas Instruments Operational Amplifier, 1.4 MHz Gain Bandwidth, 35V, 11-Pin Through Hole MLPP Package OPA2544T
Specifications
| Country of Origin | India |
|---|---|
| Brand | Texas Instruments |
| Height | 4.5mm |
| Length | 20.02mm |
| Model | OPA2544T |
| Width | 10.7mm |
| Mount Type | Through Hole |
| Series | OPA2544 |
| Output Current | 2A |
| Maximum Operating Temperature | 85°C |
| Package Type | MLPP |
| Minimum Operating Temperature | -40°C |
| Number Of Channels | 2 |
| Standards/Approvals | RoHS |
| Pin Count | 11 |
| Maximum Supply Voltage | 35V |
| Minimum Supply Voltage | -35V |
| GBP - Gain Bandwidth Product | 1.4MHz |
| Input Bias Current | ±50 pA |
| Vos - Input Offset Voltage | ±5 mV |
| Slew Rate | 8V/μs |
Key Features
- Dual channel operational amplifier designed for high voltage and high current applications.
- Suitable for driving low impedance and difficult loads with 2 amp output current.
- Wide supply voltage range from -35V to 35V supports versatile power configurations.
- Slew rate of 8 V/μs ensures fast response time for control systems.
- Operating temperature range from -40°C to 85°C for reliable industrial use.
- Compact dimensions of 20.02mm length, 10.7mm width, and 4.5mm height for space-constrained PCB designs.
- RoHS compliant, ensuring environmental safety standards.
- Typical uses include motor speed controllers, servo amplifiers, power supplies, and bridge amplifiers.
Product Description
Texas Instruments OPA2544T is a high voltage, dual channel operational amplifier designed for demanding industrial and electronic applications. Featuring a gain bandwidth product of 1.4 MHz and capable of handling supply voltages from -35V to 35V, this op amp is suited for driving challenging low impedance loads with output currents up to 2 amps.
The device is packaged in an 11-pin MLPP through-hole mount package, combining compact size with mechanical durability. Its slew rate of 8 V/μs provides rapid signal response, ideal for servo amplifiers, motor speed control, and power supply systems.
Operating reliably in temperatures ranging from -40°C to 85°C, this amplifier facilitates performance in extreme environmental conditions. The input bias current and input offset currents are maintained at ±50 pA, ensuring precision in sensitive measurement and signal chain designs.
The OPA2544T meets RoHS standards, adhering to environmental and safety regulations. It is widely applied in industrial machinery controls, bridge amplifier circuitry, instrumentation, and high current driver stages.
Dual channel high voltage operational amplifier. Wide supply voltage margin for flexible applications. Robust 11-pin MLPP through-hole package. Fast slew rate of 8 V/μs for dynamic signal processing. Low input bias and offset currents for accuracy.
Certified RoHS compliant and suitable for industrial temperatures.
This Operational Amplifier is a trusted component in electronics design, from laboratory instrumentation to automotive power amplifiers and motor controllers. Browse more Texas Instruments amplifiers and related semiconductor components in the EnvMart catalog.
Looking to purchase in bulk?
- Purchase item in bulk quantity
- Get best price for your business
Frequently Asked Questions
The gain bandwidth product of this operational amplifier is 1.4 MHz.
It can handle a maximum output current of 2 amps.
The supply voltage range is from -35V to 35V.
The dimensions are 20.02 mm in length, 10.7 mm in width, and 4.5 mm in height.
The operating temperature range is from -40°C to 85°C.
It is packaged in an 11-pin MLPP through-hole mount package.
The slew rate is 8 V/μs.
Yes, it meets RoHS standards, ensuring compliance with environmental safety regulations.
This operational amplifier features two channels.
The input bias current is maintained at ±50 pA.
It is suitable for applications such as motor speed controllers, servo amplifiers, and power supplies.
The input offset voltage is ±5 mV.
