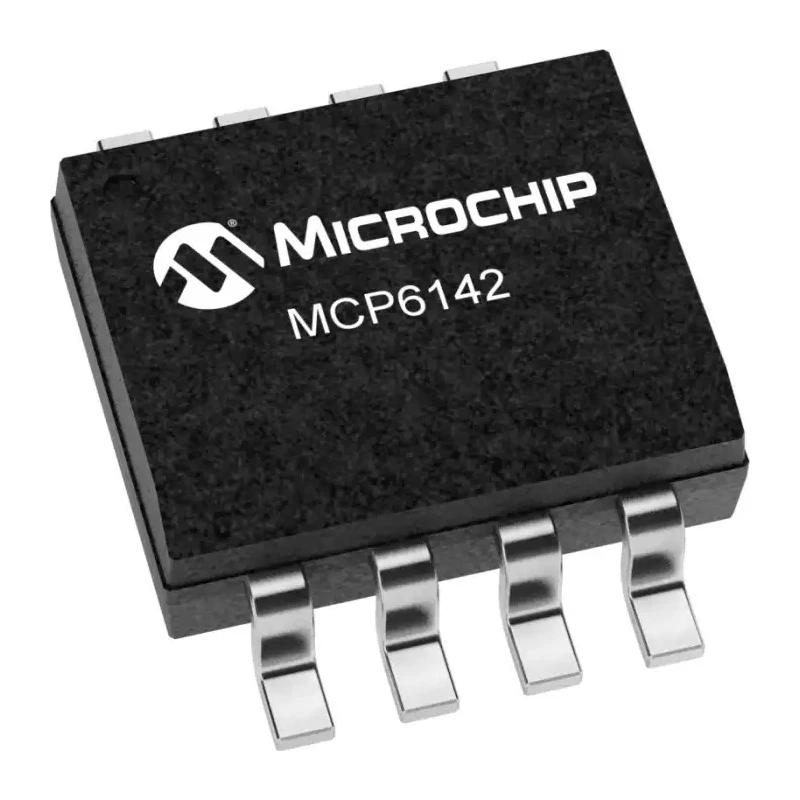

Microchip Non-Unity Gain Stable Operational Amplifier 100 kHz, 8-Pin SOIC, 6V MCP6142T-I/SN
Specifications
| Country of Origin | India |
|---|---|
| Brand | Microchip |
| Height | 1.75mm |
| Length | 4.9mm |
| Model | MCP6142T-I/SN |
| Width | 6mm |
| Mount Type | Surface |
| Series | MCP6142 |
| Output Current | 20mA |
| Maximum Operating Temperature | 85°C |
| Package Type | SOIC |
| Minimum Operating Temperature | -40°C |
| Number Of Channels | 2 |
| Standards/Approvals | RoHS |
| Pin Count | 8 |
| Maximum Supply Voltage | 6V |
| Minimum Supply Voltage | 1.4V |
| GBP - Gain Bandwidth Product | 100kHz |
| Input Bias Current | 1 pA |
| Vos - Input Offset Voltage | 3 mV |
| Slew Rate | 24V/ms |
Key Features
- Operates from 1.4V up to 6V supply voltage.
- Features ultra-low quiescent current consumption below 1 μA per amplifier.
- Supports rail-to-rail input and output operation for battery-powered devices.
- Offers a low input offset voltage of 3 mV and input bias current as low as 1 pA.
- Designed to handle output current up to 20 mA.
- Stable for gains of 10 V/V and higher.
- Operating temperature range from -40°C to +85°C suitable for industrial environments.
- Compact surface-mount package with dimensions 4.9 mm x 6 mm x 1.75 mm.
Product Description
Microchip MCP6142T-I/SN is a low-power, non-unity gain stable operational amplifier optimized for precision analog and portable electronics applications. It delivers a gain bandwidth product of 100 kHz, making it suitable for moderate speed signal conditioning.
This device operates with a wide supply voltage range from 1.4V to 6V, drawing less than 1 μA quiescent current per amplifier which extends battery life in handheld instruments. Its rail-to-rail input and output capability ensures maximum signal swing close to supply rails, ideal for single-supply systems without the need for additional voltage rails.
The MCP6142T-I/SN features low input offset voltage (3 mV) and exceptionally low input bias current (1 pA) supporting high-accuracy applications such as sensor interfaces and precision measurement.
The amplifier outputs currents up to 20 mA, sufficient for driving modest loads directly. It is stable for gains above 10 V/V ensuring consistent performance across applications.
Packaged in a space-saving 8-pin SOIC surface-mount package with compact dimensions, it fits small form-factor PCBs for industrial, laboratory instrumentation, consumer electronics, and automotive sensors applications.
Additionally, the MCP6142T series complies with RoHS standards for environmental safety and is rated for operation over the industrial temperature range of -40°C to +85°C. Operates on single supply voltage from 1.4V to 6V.
Low quiescent current typically 600 nA per amplifier. Rail-to-rail input and output operation. Input offset voltage 3 mV and bias current 1 pA. Output current capability 20 mA to drive loads directly. Stable for gain ≥10 V/V.
Industrial temperature range (-40°C to +85°C). RoHS compliant 8-pin SOIC package.
This operational amplifier is well-suited for precision sensor amplification, portable measurement instruments, industrial controls, and battery-powered devices requiring low power consumption and high accuracy. Explore more Microchip Operational Amplifiers and components with EnvMart to meet your circuit design needs.
Looking to purchase in bulk?
- Purchase item in bulk quantity
- Get best price for your business
Frequently Asked Questions
This operational amplifier operates with a supply voltage range from 1.4V to 6V.
It features a low quiescent current consumption of less than 1 μA per amplifier, typically around 600 nA.
The gain bandwidth product for this operational amplifier is 100 kHz, making it suitable for moderate speed signal conditioning.
It can handle output currents up to 20 mA, allowing it to drive modest loads directly.
This model has a low input offset voltage of 3 mV, which supports high-accuracy applications.
The MCP6142T-I/SN is rated for operation over an industrial temperature range of -40°C to +85°C.
It has compact dimensions of 4.9 mm in length, 6 mm in width, and 1.75 mm in height.
This operational amplifier is packaged in an 8-pin SOIC surface-mount package.
The input bias current is exceptionally low at 1 pA, which is beneficial for precision applications.
Yes, this operational amplifier complies with RoHS standards for environmental safety.
It utilizes a surface mount type, suitable for compact PCB designs.
It is well-suited for precision sensor amplification, portable measurement instruments, and battery-powered devices requiring low power consumption.
