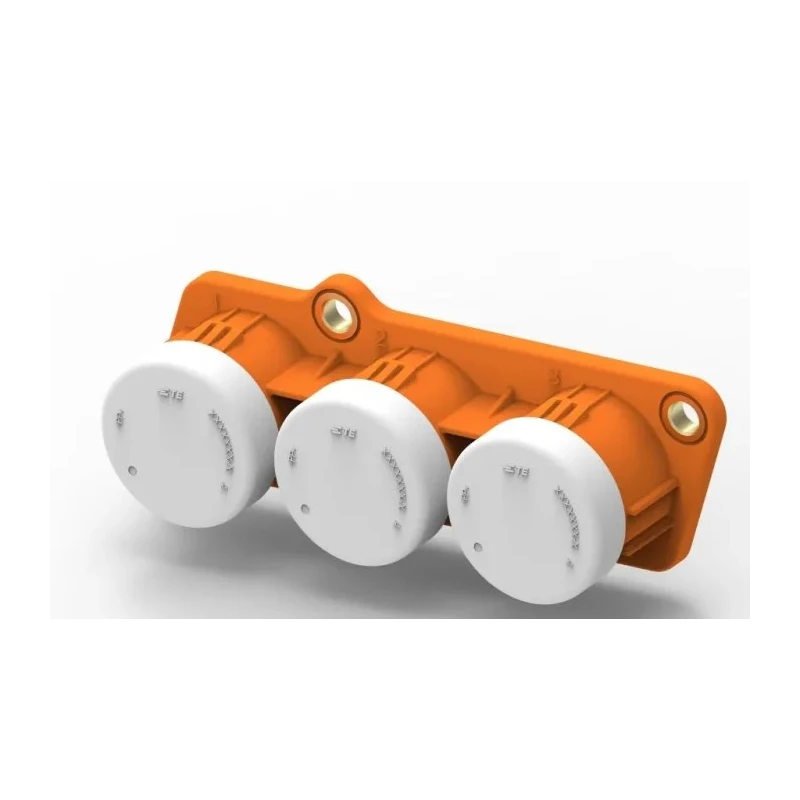

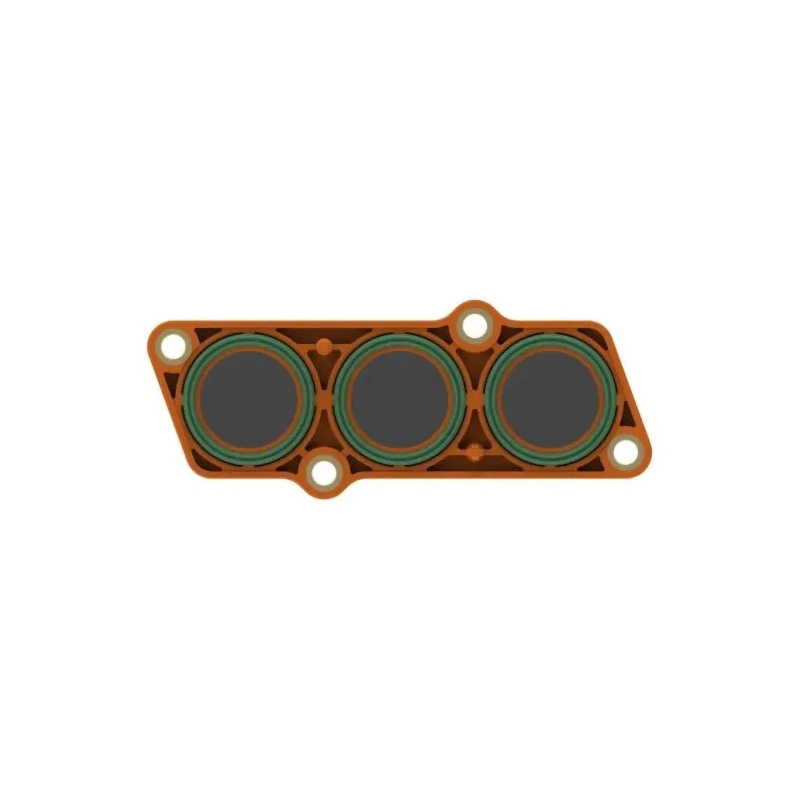

TE Connectivity IPT-HD EV Connector Male/Female 300A 1500V Crimp Termination Panel Mount IP6K9K IP69 IP67 2355146-1
Specifications
| Country of Origin | China |
|---|---|
| Brand | TE Connectivity |
| Colour | Orange |
| Orientation | Straight |
| Current | 300A |
| Height | 53mm |
| Depth | 45.9mm |
| IP Rating | IP6K9K, IP69, IP67 |
| Width | 134mm |
| Mount Type | Panel |
| Series | IPT-HD |
| Termination Type | Crimp |
| Maximum Operating Temperature | 105°C |
| Minimum Operating Temperature | -55°C |
| Number of Rows | 3 |
| Operating Voltage | 1500V |
| Number of Contacts | 3 |
| Contact Gender | Male/Female |
| Connector Gender | Male/Female |
| Better World Claim | Renewable Energy Solution |
Key Features
- Supports current rating of 300 amps for heavy-duty electrical circuits.
- Operates at a maximum voltage of 1500 volts ensuring high voltage compatibility.
- Features a crimp termination type for secure and reliable wire connections.
- Designed with IP6K9K, IP69, and IP67 ratings for excellent dust and water resistance.
- Constructed with orange color-coded housing and panel mount type for easy installation.
- Suitable for MCU, e-axle, and e-motor applications in electric vehicles.
- Wide operating temperature range from -55°C to 105°C for harsh environments.
- Includes 3-pole configuration with male/female connector gender and straight orientation.
Product Description
TE Connectivity 2355146-1 IPT-HD EV Connector Male/Female 300A 1500V is engineered to deliver exceptional electrical performance in automotive and renewable energy vehicle applications. This power bolt high-voltage connector features a crimp termination type with male/female contacts arranged in a 3-position straight orientation, providing secure and efficient connections for motor control units, e-axles, and e-motors.
The connector housing in durable orange color includes panel mounting capability and meets stringent IP6K9K, IP69, and IP67 ingress protection standards, ensuring robust sealing against dust and water under extreme conditions. It operates reliably across a temperature range of -55°C to 105°C, suitable for engine-level vibrations and demanding environmental scenarios.
Designed with 3 rows and contacts, it supports a current rating of 300 amps and maximum operating voltage of 1500 volts, delivering stable high-power transmission with low contact resistance. The connector adheres to ISO LV216 compliance and supports renewable energy solutions, enhancing system efficiency while maintaining durability in harsh environments.
The IPT-HD series connectors are valuable for applications in industrial, automotive electric powertrain, and renewable energy sectors, addressing the need for flexible assembly, enhanced shielding, and reliable electrical performance in EV power systems.
Supports current rating of 300 amps for heavy-duty electrical circuits. Operates at a maximum voltage of 1500 volts ensuring high voltage compatibility. Features a crimp termination type for secure and reliable wire connections.
Designed with IP6K9K, IP69, and IP67 ratings for excellent dust and water resistance. Constructed with orange color-coded housing and panel mount type for easy installation. Suitable for MCU, e-axle, and e-motor applications in electric vehicles.
Wide operating temperature range from -55°C to 105°C for harsh environments. Includes 3-pole configuration with male/female connector gender and straight orientation. Complies with ISO standard LV216 for automotive electrical connectors.
Ensures low contact resistance and vibration resistance to maintain connection integrity. Explore the wide range of TE Connectivity EV Connectors at EnvMart for reliable automotive electrical connection solutions.
Looking to purchase in bulk?
- Purchase item in bulk quantity
- Get best price for your business
Frequently Asked Questions
It supports a current rating of 300 amps, making it suitable for heavy-duty electrical circuits.
The maximum operating voltage is 1500 volts, ensuring compatibility with high voltage applications.
It features a crimp termination type, which provides secure and reliable wire connections.
The connector is designed with IP6K9K, IP69, and IP67 ratings, ensuring excellent dust and water resistance.
It operates within a wide temperature range from -55°C to 105°C, suitable for harsh environments.
This model includes 3 contacts arranged in a male/female configuration.
It is designed for panel mounting, facilitating easy installation.
The width of this connector is 134mm.
It is suitable for motor control units (MCU), e-axles, and e-motor applications in electric vehicles.
The connector features an orange color-coded housing.
The contacts are arranged in a straight orientation.
It complies with ISO standard LV216 for automotive electrical connectors.
