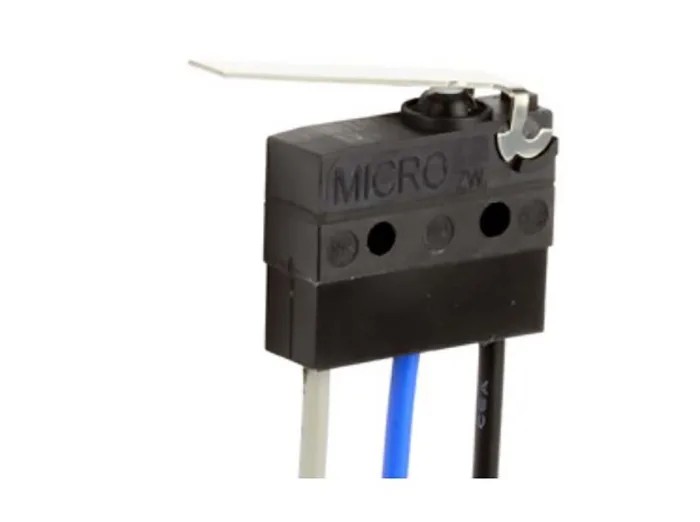

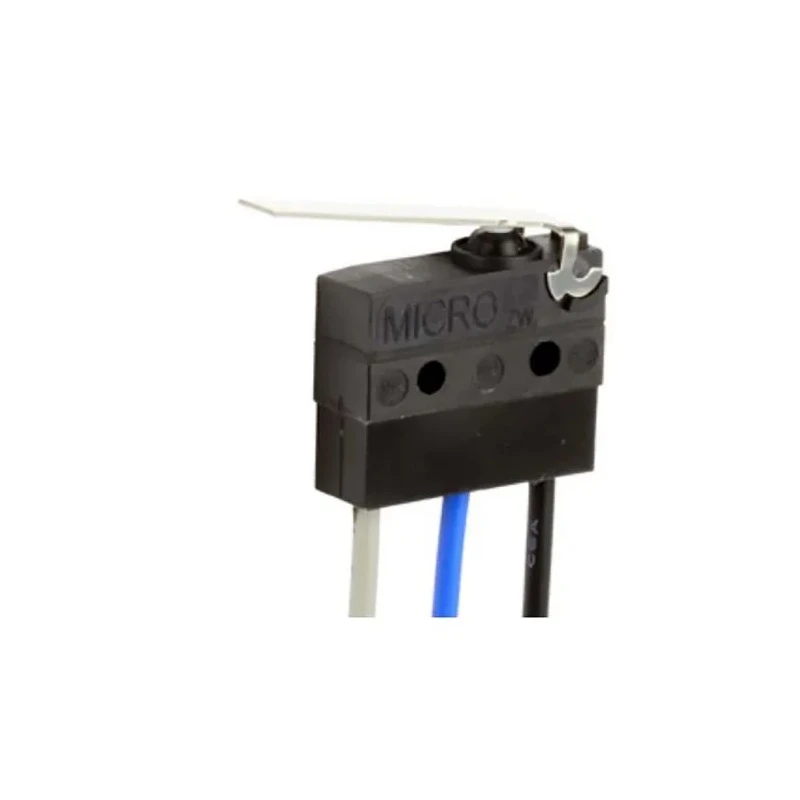

Honeywell Technologies Long Straight Lever Micro Switch, Solder Terminal, 100mA, 250 V AC, SPDT, IP00 ZW10E15DD1

Free Delivery in India | Lowest Global Shipping Charges

Honeywell Technologies Long Straight Lever Micro Switch, Solder Terminal, 100mA, 250 V AC, SPDT, IP00 ZW10E15DD1

Name: Honeywell Technologies Long Straight Lever Micro Switch, Solder Terminal, 100mA, 250 V AC, SPDT, IP00 ZW10E15DD1
Brand: Honeywell
SKU: 278178
Price: 19.34 USD
Availability: InStock



Category Micro Switch Brand Honeywell Condition New

Specifications

Country of Origin	Taiwan
Brand	Honeywell
Length	19.8mm
Model	ZW10E15DD1
Depth	9.25mm
IP Rating	IP00
Width	6.4mm
Housing Material	Polybutylene Terephthalate
Series	ZW
Maximum Operating Temperature	120°C
Contact Configuration	SPDT
Actuator Type	Long Straight Lever
Minimum Operating Temperature	-40°C
Terminal type	Solder
Hazardous Area Certification	UL, RoHS, ENEC, cUL, CQC
Standards/Approvals	UL, RoHS, ENEC, cUL, CQC
Switch Contact Current	100mA
Operating Force	150g
Mechanical Life	1000000min
Contact AC Voltage	250V ac
Microswitch Type	Subminiature

Key Features

The switch features a durable long straight lever actuator for precise mechanical input.
It has a single-pole double-throw (SPDT) contact configuration suited for versatile switching applications.
Solder terminals allow secure and stable PCB or wiring connections.
Rated for 250 V AC contact voltage and 100 mA contact current, suitable for low current mains circuits.
The housing is made of polybutylene terephthalate, offering thermal stability and electrical insulation.
Mechanical life expectancy is 1,000,000 cycles, ideal for high-usage environments.
Operating temperature range spans from -40°C to 120°C, supporting cold storage and elevated-temperature use cases.
Specified with IP00 ingress protection rating, requiring installation where dust and moisture are controlled.

Product Description

Honeywell ZW10E15DD1 Long Straight Lever Micro Switch, featuring solder terminals, 100mA switch contact current, and 250 V AC contact voltage, is designed for reliable electromechanical switching in industrial and automation systems.

This subminiature micro switch employs a long straight lever actuator that converts mechanical motion into electrical signals with high precision. The solder terminal design facilitates secure wiring and PCB mounting, making it suitable for control panel applications and limit-switching tasks.

Constructed with a polybutylene terephthalate housing, the switch withstands thermal stress, offering durability and electrical insulation in demanding environments. It operates effectively across a wide temperature range from -40°C to 120°C, allowing usability in cold storage and elevated temperature zones.

The device is rated for 250 V AC and 100mA current, suitable for low-current mains signalling and automation circuits. Mechanical endurance is rated for 1,000,000 actuation cycles, ensuring long service life in industrial and manufacturing setups.

The IP00 rating indicates no protection against dust or moisture, so mounting should consider environmental exposure accordingly. Safety and compliance certifications include UL, RoHS, ENEC, cUL, and CQC, affirming adherence to international safety standards.

Durable long straight lever actuator for precise mechanical actuation. Single-pole double-throw (SPDT) contact configuration for versatile switching. Solder terminals for secure electrical and PCB connections. Polybutylene terephthalate housing ensures thermal and electrical resilience.

Operates within -40°C to 120°C temperature range suitable for diverse industrial settings. Mechanical life rated for one million cycles supporting high-frequency use. 100mA contact current and 250 V AC voltage rating for low-current mains applications.

Ingress protection IP00 requires suitable environmental installation. Certified to UL, RoHS, ENEC, cUL, and CQC standards for quality assurance. Operating force of 150 g for consistent tactile feedback in control mechanisms.

This micro switch is ideal for applications such as limit switching in automation assemblies, position sensing in electromechanical devices, and use in control panels requiring reliable soldered micro switches. It is suited for industrial, manufacturing, electrical, and HVAC environments demanding precise and durable switching components.

Explore Honeywell Micro Switches and other high-quality electrical control components available at EnvMart for advanced industrial automation solutions.

Looking to purchase in bulk?

Purchase item in bulk quantity
Get best price for your business

Comments (0)

No customer reviews for the moment.

Frequently Asked Questions

This model features a single-pole double-throw (SPDT) contact configuration, making it suitable for versatile switching applications.

The maximum operating temperature for this micro switch is 120°C, allowing it to function effectively in elevated temperature environments.

It is rated for a contact current of 100mA and a contact voltage of 250V AC, suitable for low-current mains circuits.

The housing is made of polybutylene terephthalate, which provides thermal stability and electrical insulation.

The mechanical life expectancy is rated for 1,000,000 cycles, making it suitable for high-usage environments.

The dimensions of the micro switch are 19.8mm in length, 9.25mm in depth, and 6.4mm in width.

It features solder terminals, allowing for secure and stable connections to PCBs or wiring.

The operating force for this model is 150g, providing consistent tactile feedback during operation.

This unit has an IP00 ingress protection rating, indicating no protection against dust or moisture, and should be installed in controlled environments.

It is certified to UL, RoHS, ENEC, cUL, and CQC standards, ensuring compliance with international safety standards.

The minimum operating temperature is -40°C, allowing it to be used in cold storage applications.

This model is suitable for limit switching in automation assemblies, position sensing in electromechanical devices, and control panels requiring reliable soldered micro switches.
