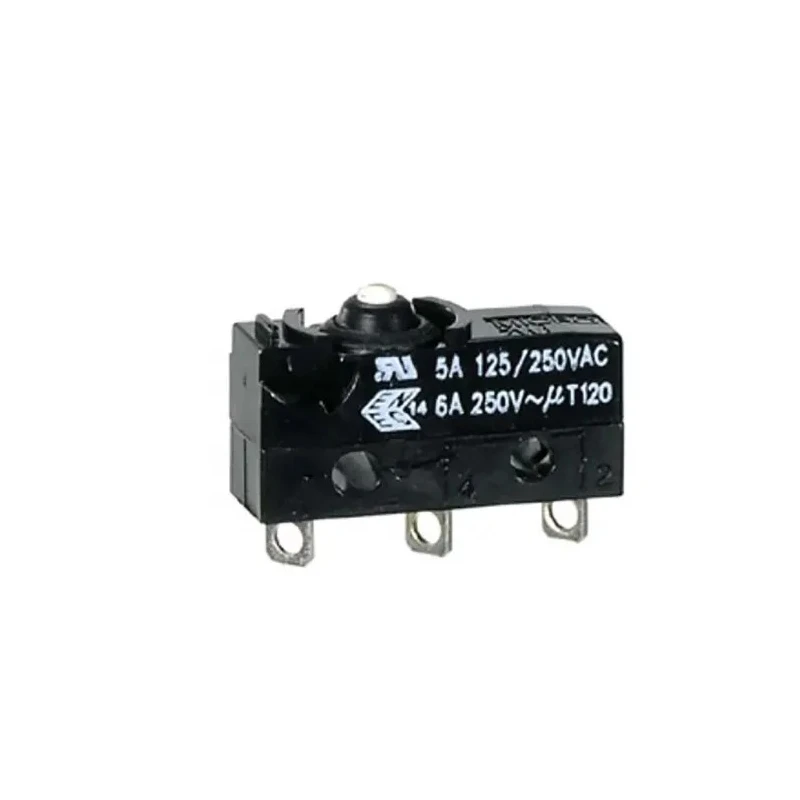

Honeywell Technologies Pin Plunger Micro Switch, Solder Terminal, 6A, 250 V AC, SPDT, IP00 ZW50F15AD1
Specifications
| Country of Origin | Taiwan |
|---|---|
| Brand | Honeywell |
| Length | 19.8mm |
| Model | ZW50F15AD1 |
| Depth | 9.25mm |
| IP Rating | IP00 |
| Width | 6.4mm |
| Housing Material | Polybutylene Terephthalate |
| Series | ZW |
| Maximum Operating Temperature | 120°C |
| Contact Configuration | SPDT |
| Actuator Type | Pin Plunger |
| Minimum Operating Temperature | -40°C |
| Terminal type | Solder |
| Hazardous Area Certification | CQC, cUL, UL, ENEC, RoHS |
| Standards/Approvals | CQC, UL, RoHS, ENEC, cUL |
| Switch Contact Current | 6A |
| Operating Force | 203g |
| Mechanical Life | 1000000min |
| Contact AC Voltage | 250V ac |
| Microswitch Type | Subminiature |
Key Features
- Durable polybutylene terephthalate housing ensures good thermal stability and electrical insulation.
- Subminiature design ideal for compact industrial and electronic assemblies.
- Operating force is 203 grams for consistent actuation sensitivity.
- Mechanical life rated for 1,000,000 cycles ensuring extended durability.
- Wide operating temperature range from -40°C to 120°C for tough environments.
- Solder terminal type enables secure permanent PCB or wiring connections.
- Approved to multiple standards including UL, ENEC, CQC, and cUL ensuring regulatory compliance.
- Single pole double throw (SPDT) contact configuration for versatile wiring options.
Product Description
Honeywell ZW50F15AD1 Pin Plunger Micro Switch is a compact subminiature electromechanical switch designed for reliable detection of mechanical movement and electrical state changes in control and signalling systems. Featuring a solder terminal actuator, it supports a contact current of 6A at 250 V AC, making it suitable for moderate-current applications within industrial, automation, and electronic equipment.
The rugged polybutylene terephthalate housing provides excellent thermal stability and electrical insulation, allowing operation between -40°C and 120°C. The device offers a mechanical life expectancy of 1 million cycles, ensuring dependable performance in demanding environments.
The switch is equipped with a pin plunger actuator delivering an operating force of 203 grams for consistent and sensitive actuation. The SPDT (single-pole double-throw) contact configuration allows for flexible wiring and switching control in various automation and control panel applications.
Engineered with solder terminals, this micro switch is optimized for permanent or low-profile PCB connections. It carries multiple approvals including UL, ENEC, CQC, and cUL, affirming compliance with regional certification standards and material directives.
This micro switch is ideal for limit sensing in industrial automation machinery, control panel interfaces, safety interlocks in electrical equipment, and compact actuator detection in consumer appliances.
Durable polymer housing for thermal and electrical protection. Compact subminiature size for space efficiency. High mechanical endurance for long service life. Wide temperature tolerance for varied environments. Secure solder terminal connections.
Versatile SPDT contact configuration. Certified to multiple international safety standards. Suitable for industrial automation and consumer appliances. Precise actuator force for reliable switching. Explore more Micro Switches and related control components on EnvMart for industrial, laboratory, and manufacturing applications.
Looking to purchase in bulk?
- Purchase item in bulk quantity
- Get best price for your business
Frequently Asked Questions
The maximum contact current for this model is 6A.
It operates within a temperature range of -40°C to 120°C.
This micro switch features a pin plunger actuator.
The mechanical life of this switch is rated for 1,000,000 cycles.
The housing is made of polybutylene terephthalate, providing good thermal stability and electrical insulation.
The IP rating is IP00, indicating it is not protected against water or dust ingress.
The contact configuration is single pole double throw (SPDT), allowing for versatile wiring options.
It features solder terminals for secure permanent PCB or wiring connections.
It is approved to multiple standards including UL, ENEC, CQC, and cUL.
The dimensions are 19.8mm in length, 6.4mm in width, and 9.25mm in depth.
It is suitable for limit sensing in industrial automation, control panel interfaces, and safety interlocks in electrical equipment.
The operating force required for actuation is 203 grams.
