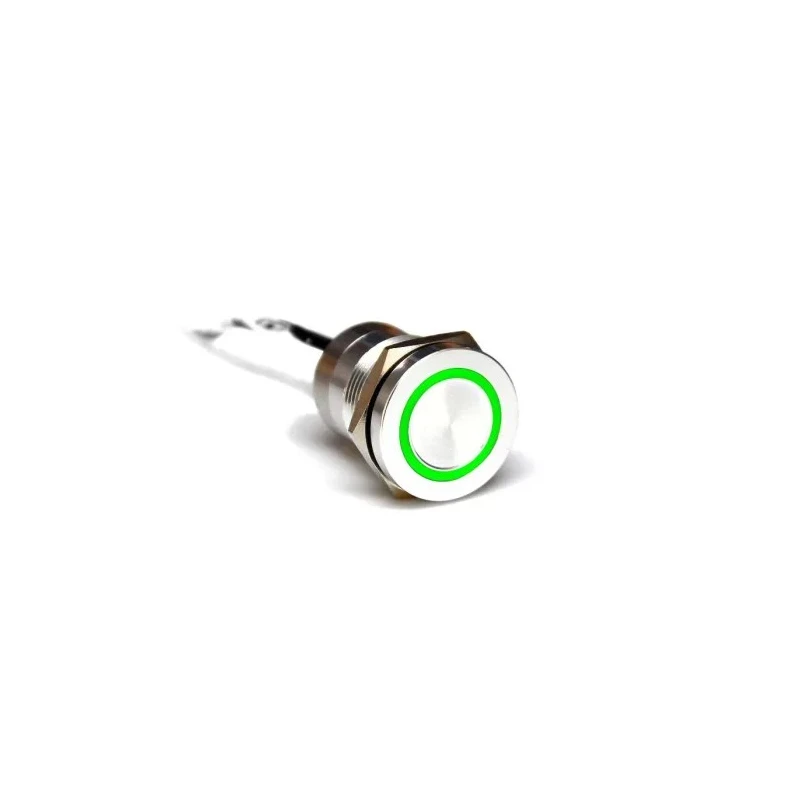

Bulgin Capacitive Switch Momentary NO Illuminated Red Green On-Off IP68 Stainless Steel MC19MOSRG
Specifications
| Country of Origin | China |
|---|---|
| Brand | Bulgin |
| Height | 31.2mm |
| Model | MC19MOSRG |
| Depth | 32mm |
| IP Rating | IP68 |
| Width | 25.2mm |
| Housing Material | Aluminium |
| Contact Material | Stainless Steel |
| Current Rating | 500mA |
| Switch Type | Capacitive |
| Output type | On-Off |
| Series | MC19 |
| Maximum Operating Temperature | 55°C |
| Minimum Operating Temperature | -25°C |
| Maximum Input Voltage | 24V dc |
| Standards/Approvals | RoHS |
| Minimum Input Voltage | 12V dc |
| LED Colour | Red, Green |
| Switch Operation | Momentary |
| Actuator Colour | Red |
| Housing Colour | Silver |
Key Features
- The switch operates momentarily with a normally open (NO) contact function.
- Features red and green LED illumination for clear indication.
- Rated for a maximum input voltage of 24V DC and a current rating of 500mA.
- Sealed to IP68 and IP69K standards for water and dust resistance.
- Suitable for harsh environments with operating temperature ranging from -25°C to 55°C.
- Compact dimensions with width 25.2mm, height 31.2mm, and depth 32mm.
- Housed in silver aluminium with a red actuator colour and stainless steel contact material for durability.
- Certified RoHS compliant, ensuring environmental safety.
Product Description
Bulgin MC19MOSRG capacitive switch is a high-quality momentary normally open (NO) switch featuring illuminated red and green LED indicators. Housed in robust aluminium with stainless steel contact parts, this switch is engineered for demanding industrial and automation environments.
The switch offers reliable performance up to 24V DC input voltage and a current rating of 500mA, while its IP68 and IP69K sealing ensures exceptional protection against water, dust, and other contaminants. Its operational temperature range from -25°C to 55°C makes it suitable for a variety of harsh environments.
Designed with a compact form factor (25.2mm width, 31.2mm height, 32mm depth), the silver-coloured aluminium housing paired with a red actuator provides both durability and aesthetic appeal. The touch-activated capacitive technology enhances ease of use and maintenance, as the switch can be activated by a simple finger touch and is easy to clean.
This switch is RoHS-certified, confirming its compliance with environmental standards. It is ideally suited for applications in electrical systems, industrial automation, and control panels requiring highly durable, responsive, and visible switching mechanisms.
The switch operates momentarily with a normally open contact function. Red and green LED illumination provides clear operating status. Stainless steel contact material ensures high durability and corrosion resistance. Compact dimensions and robust housing design enable easy integration in control systems.
Water and dust proofing at IP68 and IP69K levels protect against extreme environments. RoHS compliance guarantees environmental safety and product quality. Operating temperature range supports diverse industrial applications.
Touch-sensitive activation improves user convenience and hygienic operation. Suitable for diverse electrical and automation applications requiring precise switching. Explore EnvMart for more premium Capacitive Switches and electrical components to enhance industrial and automation projects.
Looking to purchase in bulk?
- Purchase item in bulk quantity
- Get best price for your business
Frequently Asked Questions
The maximum input voltage for this model is 24V DC.
This switch has a current rating of 500mA.
It operates within a temperature range of -25°C to 55°C.
The dimensions are 25.2mm in width, 31.2mm in height, and 32mm in depth.
This model is rated IP68 and IP69K for water and dust resistance.
The housing is made of aluminium, and the contact material is stainless steel.
It features red and green LED illumination for clear indication of its operating status.
Yes, it is certified RoHS compliant, ensuring it meets environmental safety standards.
This switch operates momentarily with a normally open (NO) contact function.
The actuator is red, while the housing is silver.
It is suitable for applications in electrical systems, industrial automation, and control panels.
It uses touch-sensitive activation, allowing it to be activated by a simple finger touch.
