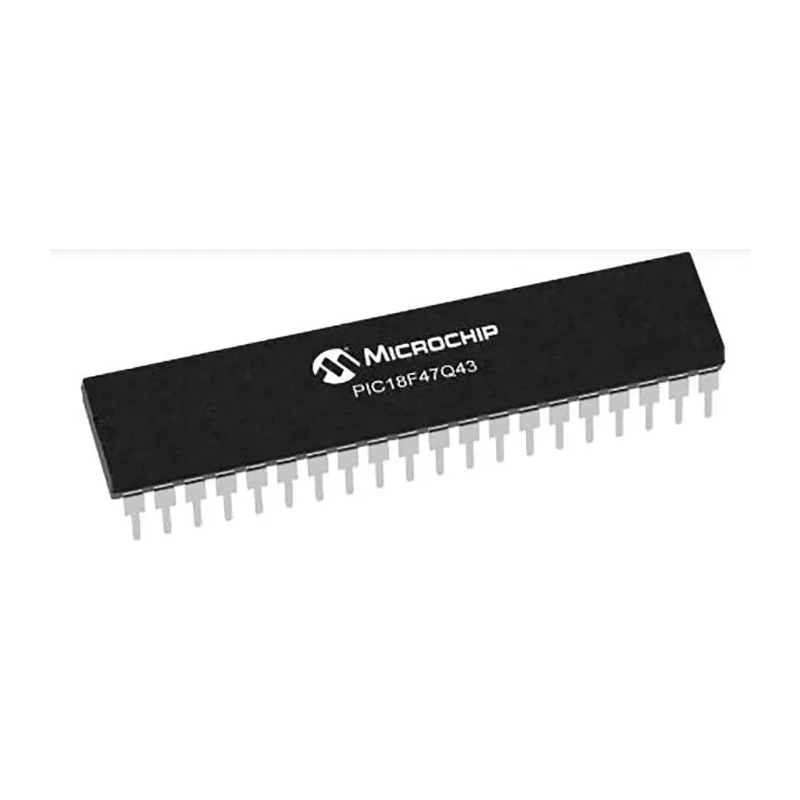

Microchip 8-bit PIC18 Microcontroller 32 MHz 128kB FLASH 40-Pin PDIP PIC18F47Q43-I/P

Microchip PIC18F47Q43-I/P is an 8-bit PIC18 microcontroller designed for sophisticated embedded systems requiring real-time control with high reliability. It operates at a maximum clock frequency of 32 MHz and features a sizable 128kB FLASH program memory to accommodate complex firmware. This microcontroller is housed in a 40-pin PDIP surface mount package, making it compatible with standard through-hole and socket applications in industrial and laboratory environments.

Equipped with 8192 bytes of data SRAM and 1024 bytes of data EEPROM, the device supports efficient data handling and persistent storage. It integrates a 12-bit ADC with advanced computation capabilities, including capacitive touch sensing, averaging, filtering, oversampling, and threshold comparison. This makes it suitable for capacitive interface applications in automotive, commercial, and industrial control systems.

The microcontroller supports low-power features such as low-current power-on reset, brown-out reset, and an optional low-power brown-out reset to ensure energy-efficient operation in battery-powered devices. Operating at supply voltages ranging from 1.8V to 5.5V, it is adaptable for different power environments.

With three to four timers and two analogue comparators, this PIC18 microcontroller offers versatile timing and signal comparison functions critical for automation and control applications. The instruction set follows a RISC architecture, providing efficient instruction execution and low power consumption.

Designed to operate reliably in harsh conditions, it supports a wide temperature range from -40°C to 85°C without sacrificing performance. The 40-pin configuration allows for various input/output connections for embedded system designs in industrial machinery, consumer electronics, and automotive controls.

Overall, the Microchip PIC18F47Q43-I/P microcontroller is a robust solution for embedded system developers needing reliable, high-performance 8-bit processing with advanced peripheral integrations for capacitive sensing and power management.

Features a 12-bit ADC with computation for capacitive touch sensing. Includes 8192 bytes of data SRAM and 1024 bytes of data EEPROM. Supports low-current power-on reset and brown-out reset. Operates at supply voltages from 1.8V to 5.5V.

Provides 3 to 4 timers and two analogue comparators. Program memory is of FLASH type with a maximum size of 128kB. Designed for operating temperatures between -40°C and 85°C. Instruction set architecture is RISC, ideal for real-time control applications.

Surface mount package suitable for advanced embedded system design. Pin count of 40 allows flexible interfacing options.
