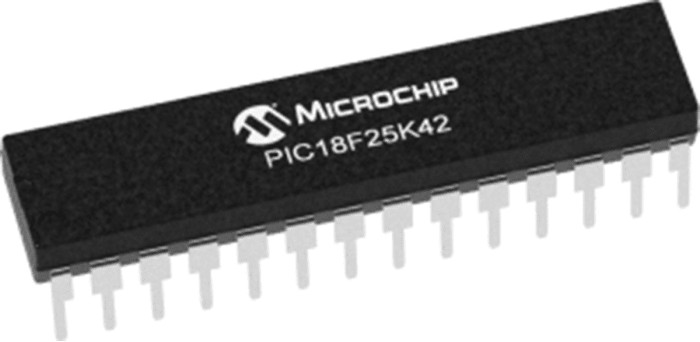

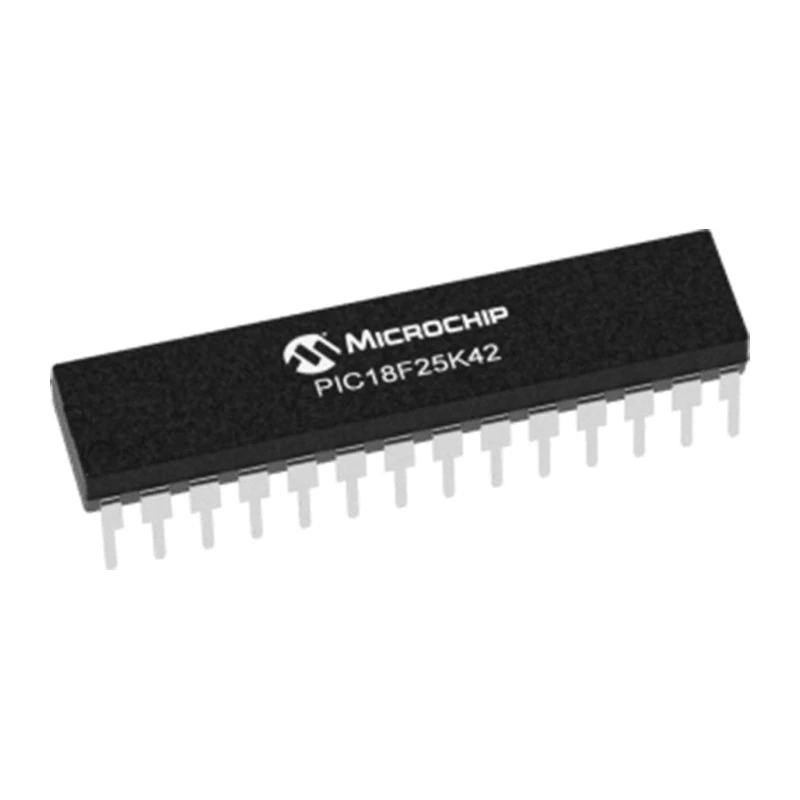

Microchip PIC18F25K42-I/SP 8 Bit CPU PIC18 Microcontroller 64 MHz 32kB FLASH 28-Pin SPDIP
Specifications
| Country of Origin | India |
|---|---|
| Brand | Microchip |
| Height | 3.81mm |
| Length | 35.56mm |
| Model | PIC18F25K42-I/SP |
| Width | 7.49mm |
| Mount Type | Through Hole |
| Series | PIC18 |
| Maximum Operating Temperature | 85°C |
| Package Type | SPDIP |
| Minimum Operating Temperature | -40°C |
| Ram size | 256bit |
| Interface Type | SPI |
| Standards/Approvals | RoHS |
| Pin Count | 28 |
| Maximum Supply Voltage | 5.5V |
| Maximum Power Dissipation Pd | 800mW |
| Minimum Supply Voltage | 1.8V |
| Device Core | 8 Bit CPU |
| Program Memory Size | 32kB |
| Maximum Clock Frequency | 64MHz |
| Number of Programmable I/Os | 25 |
| Analogue Comparators | 2 |
| Number of Timers | 3 |
| Instruction Set Architecture | RISC |
| ADCs | 24 x 12 Bit |
| Program Memory Type | FLASH |
| DACs | 1 x 5 Bit |
Key Features
- Operates at a maximum supply voltage of 5.5V and supports a minimum supply voltage of 1.8V.
- Features 256bit RAM and 32kB of program memory of FLASH type for efficient data processing.
- Equipped with up to 25 programmable I/Os and 3 timers to manage multiple operations.
- Includes 2 analogue comparators and 1 DAC with 5-bit resolution for advanced peripheral control.
- Has 24 ADC channels with 12-bit resolution for precise analog-to-digital conversion.
- Designed for operation from -40°C up to 85°C ensuring reliability in industrial environments.
- Built with RISC instruction set architecture for high performance and low power consumption.
- Complies with RoHS standards ensuring environmental and safety compliance.
Product Description
Microchip PIC18F25K42-I/SP is an advanced 8-bit microcontroller designed for embedded control applications requiring high performance and low power consumption. It integrates a PIC18 CPU core that operates at a maximum clock speed of 64 MHz with a program memory size of 32kB FLASH and 256bit RAM, offering ample resources for complex tasks.
This microcontroller includes 25 programmable input/output pins and 3 dedicated timers, delivering flexible control for industrial, automotive, and consumer electronics applications. Two analogue comparators and a 5-bit DAC enable precise analog interfacing, while 24 channels of 12-bit ADC enhance measurement accuracy.
Operating across a wide temperature range from -40°C to 85°C and supporting supply voltages from 1.8V up to 5.5V, this device is suitable for robust environment conditions. Its RISC architecture provides an efficient instruction set that optimizes processing speed and power usage.
The PIC18F25K42-I/SP comes in a through-hole 28-pin SPDIP package measuring 35.56mm in length, 7.49mm in width, and 3.81mm in height. It conforms to RoHS standards, making it environmentally friendly for industrial and commercial deployments.
Maximum clock frequency of 64 MHz for fast processing. 32kB FLASH program memory for application code storage. 256bit RAM for rapid data access and execution. 25 programmable I/O pins provide versatile interfacing. Three timers allow accurate timing and event handling.
Integrated 2 analogue comparators and 5-bit DAC enhance peripheral control. 24-channel 12-bit ADC for precise sensor data acquisition. Wide operating temperature range from -40°C to 85°C suitable for demanding conditions.
Compact 28-pin SPDIP package suitable for through-hole PCB mounting. RoHS-compliant ensuring environmental safety and standards adherence.
This microcontroller is ideal for use in industrial controls, automotive electronics, home automation, and general embedded system applications where reliability, speed, and flexibility are critical. Microchip's PIC18F25K42-I/SP combines performance and adaptability to meet diverse design challenges.
Explore more Microcontrollers and related components on EnvMart for comprehensive project solutions and systems integration needs.
Looking to purchase in bulk?
- Purchase item in bulk quantity
- Get best price for your business
Frequently Asked Questions
The maximum clock frequency of this microcontroller is 64 MHz, allowing for fast processing capabilities.
It features a program memory size of 32kB FLASH, providing ample space for application code storage.
This model includes 25 programmable I/O pins, offering versatile interfacing options for various applications.
The operating temperature range is from -40°C to 85°C, making it suitable for demanding industrial environments.
It has 24 channels of 12-bit ADC, enabling precise analog-to-digital conversion for accurate sensor data acquisition.
The microcontroller supports a minimum supply voltage of 1.8V and a maximum supply voltage of 5.5V.
It comes in a 28-pin SPDIP package, suitable for through-hole PCB mounting.
This microcontroller is equipped with 256 bits of RAM, allowing for rapid data access and execution.
It utilizes a RISC instruction set architecture, which optimizes processing speed and power consumption.
It includes 3 dedicated timers for accurate timing and event handling in applications.
Yes, it complies with RoHS standards, ensuring environmental safety and compliance.
The maximum power dissipation is 800 mW, which helps in managing thermal performance during operation.
