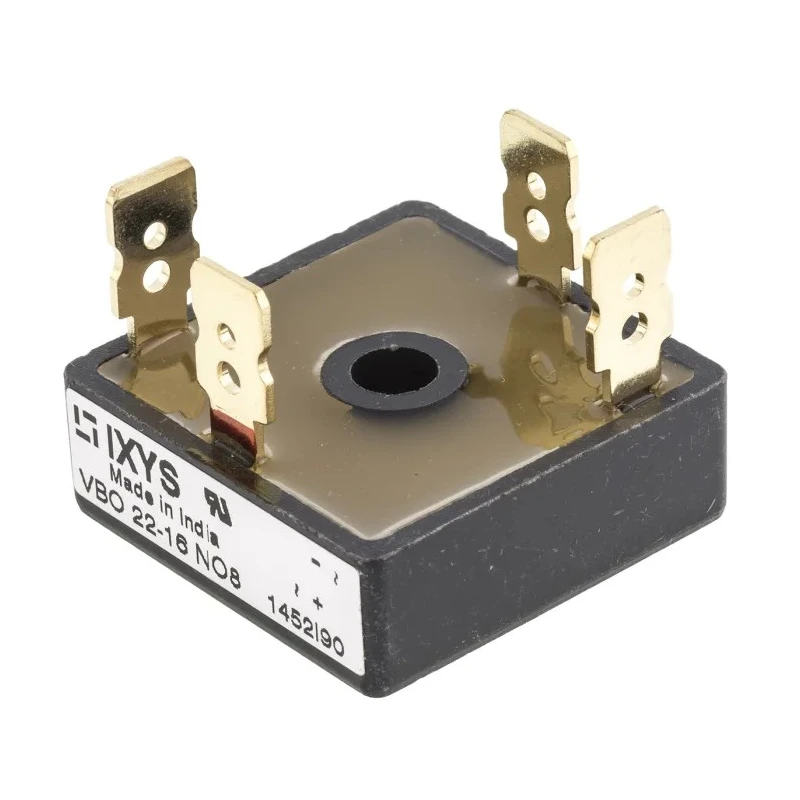

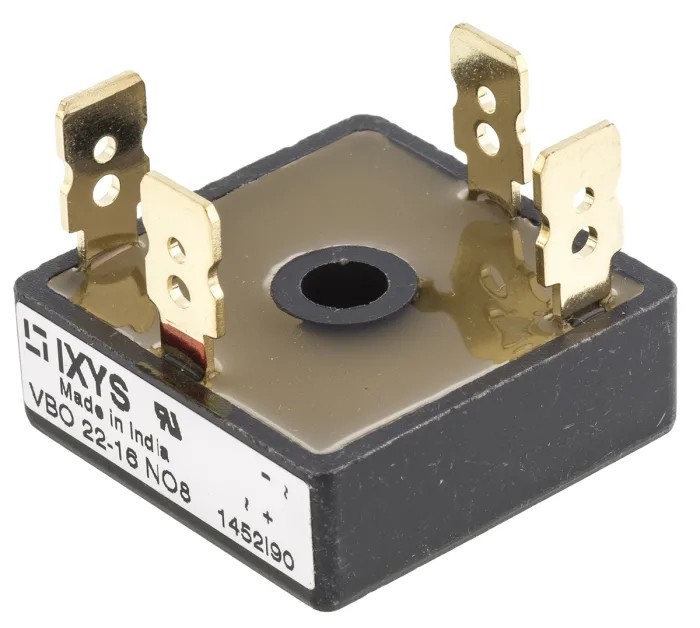

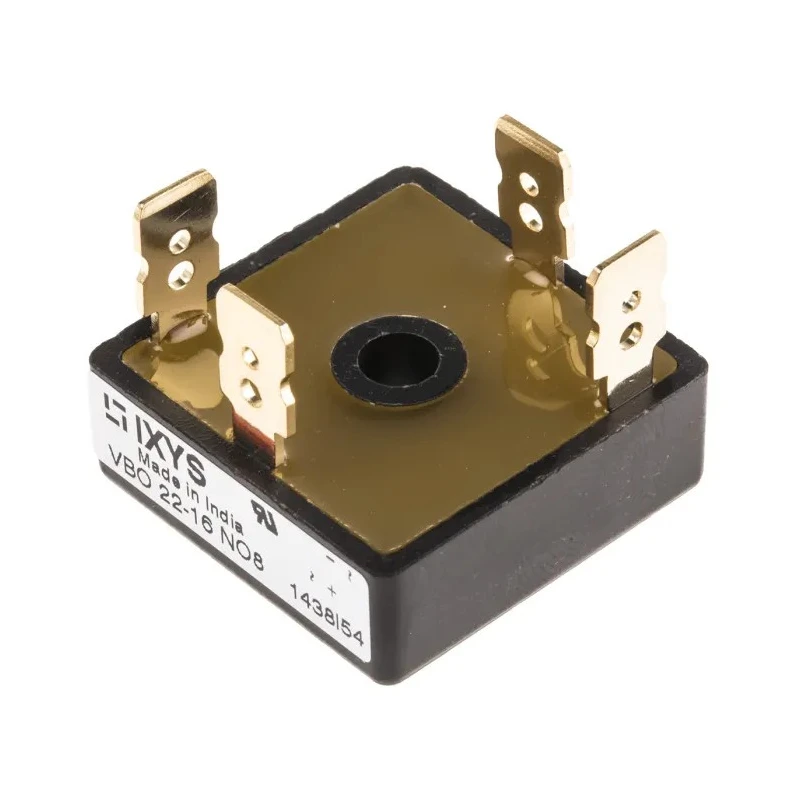

IXYS Bridge Rectifier Module 1600 V 440 A 4-Pin Single VBO22-16NO8
Specifications
| Country of Origin | India |
|---|---|
| Brand | IXYS |
| Height | 10mm |
| Length | 28.5mm |
| Model | VBO22-16NO8 |
| Width | 28.5mm |
| Mount Type | Screw |
| Series | VBO22 |
| Configuration | Single |
| Maximum Operating Temperature | 150°C |
| Package Type | FO-BB |
| Minimum Operating Temperature | -40°C |
| Number of Phases | 1 |
| Pin Count | 4 |
| Peak Reverse Repetitive Voltage Vrrm | 1600V |
| Peak Reverse Current Ir | 300μA |
| Peak Non-Repetitive Forward Surge Current Ifsm | 440A |
| Forward Current If | 17A |
| Peak Forward Voltage Vf | 2.2V |
| Vishay Bridge Rectifier, 1600 V 420 A, 4-Pin SingleBrand | Vishay |
| Semikron Bridge Rectifier, 17A, 200V, 4-PinBrand | Semikron |
Key Features
- Offers very low leakage current for enhanced efficiency.
- Features very low forward voltage drop to minimize power loss.
- Improved thermal behaviour allows operation up to 150°C.
- Equipped with screw mount type and FO-BB package for reliable installation.
- Suitable for industrial and electronic component applications requiring robust rectification.
- Operates safely between -40°C and 150°C.
- Includes push-on terminals for secure electrical connectivity.
- Compact size with dimensions 28.5mm x 28.5mm x 10mm height.
Product Description
IXYS VBO22-16NO8 Bridge Rectifier Module is a high-performance semiconductor device used to convert alternating current (AC) input into direct current (DC) output in electronic and industrial applications. This single-phase, 4-pin module is designed for peak reverse voltage up to 1600 V and peak forward surge current of 440 A, ensuring reliable operation in demanding environments.
Constructed with push-on terminals and housed in an FO-BB package, the module facilitates efficient electrical connections and installation with screw mount type compatibility. It operates within a temperature range from -40°C to a maximum of 150°C, demonstrating excellent thermal stability and durability.
The device features very low forward voltage drop and leakage current, minimizing losses and enhancing energy efficiency. Its compact form factor, measuring 28.5 mm in length and width and 10 mm in height, makes it suitable for space-sensitive circuit designs.
IXYS bridge rectifiers are widely used in power electronics, industrial machinery, power supplies, and electronic component assemblies requiring high current rectification. This model belongs to the VBO22 series known for quality and reliability in semiconductor applications.
Very low leakage current improves overall device efficiency. Minimal forward voltage drop reduces heat generation. Supports high surge current for transient load handling. Screw mount and FO-BB package enhance mechanical stability.
Ideal for use in industrial, electronics, and power conversion systems. Compact design suitable for PCB and module integration. Wide operating temperature range for diverse environments. Single-phase, 4-pin configuration for versatile circuit designs.
Explore the full range of semiconductor bridge rectifiers at EnvMart for comprehensive industrial and electronic solutions.
Looking to purchase in bulk?
- Purchase item in bulk quantity
- Get best price for your business
Frequently Asked Questions
The peak reverse voltage rating of this module is 1600 V, allowing it to handle high voltage applications effectively.
This model can operate at a maximum temperature of 150°C, making it suitable for high-temperature environments.
The forward current rating for this bridge rectifier module is 17 A, which is essential for determining its application in circuits.
It features a peak forward voltage drop of 2.2 V, which minimizes power loss and enhances efficiency in rectification.
This model uses a screw mount type, which provides reliable mechanical stability during installation.
The dimensions of this module are 28.5 mm in length and width, with a height of 10 mm, making it compact for various applications.
The peak non-repetitive forward surge current rating is 440 A, allowing it to handle transient loads effectively.
This model operates safely between -40°C and 150°C, providing versatility in different environmental conditions.
It is equipped with push-on terminals that ensure secure electrical connectivity in circuit designs.
This bridge rectifier module is suitable for industrial and electronic applications requiring robust rectification.
The VBO22-16NO8 has a 4-pin configuration, allowing for versatile circuit designs.
The country of origin for this model is India, indicating its manufacturing location.
