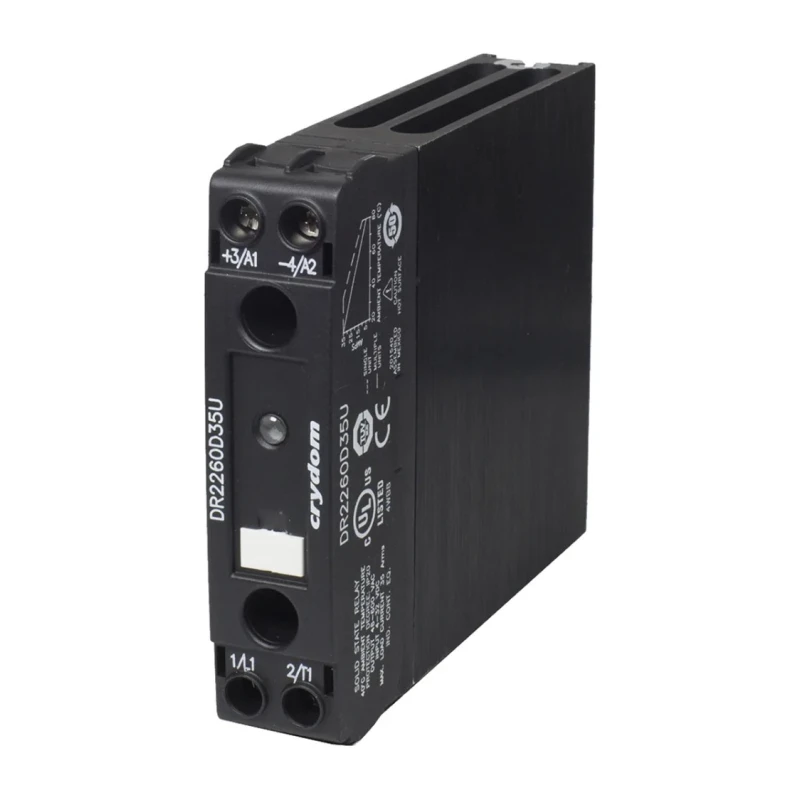

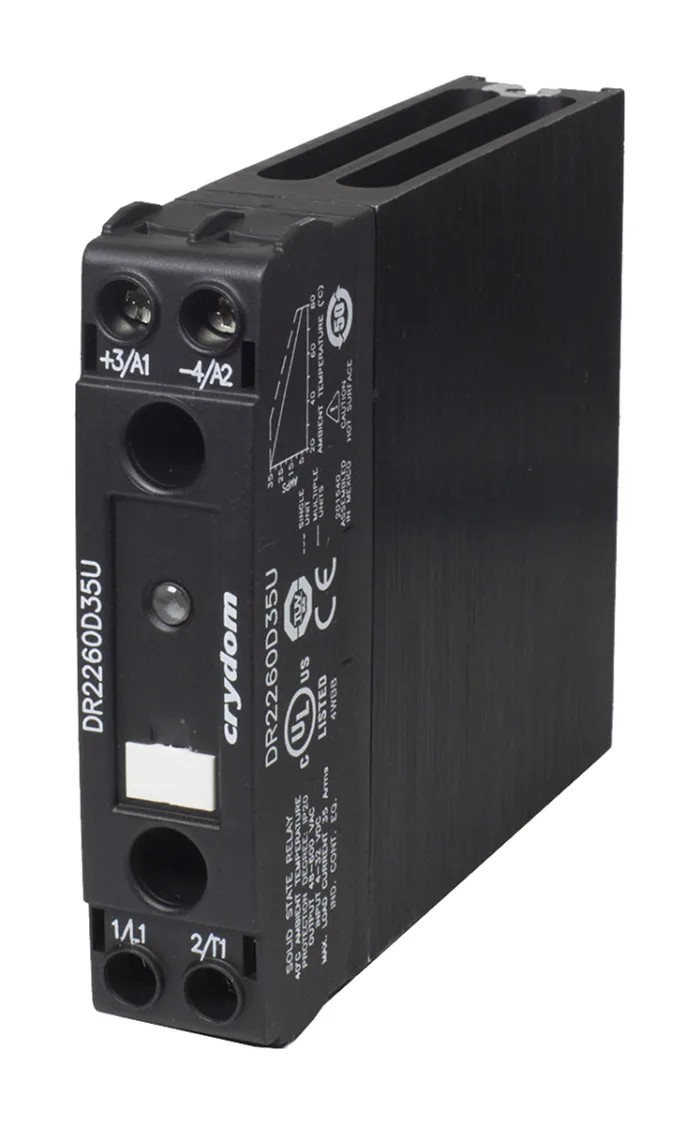

Crydom DR22 Series Solid State Relay 30A Load DIN Rail Mount 600Vrms Load 280V ac/dc Control DR22
Specifications
| Country of Origin | India |
|---|---|
| Brand | Crydom |
| Height | 91.9mm |
| Length | 22.5mm |
| Model | DR22 |
| IP Rating | IP20 |
| Width | 116mm |
| Mount Type | DIN Rail |
| Output type | MOSFET |
| Series | DR22 |
| Maximum Operating Temperature | 80°C |
| Contact Configuration | SP |
| Capacitance | 8pF |
| Minimum Operating Temperature | -40°C |
| Terminal type | Screw |
| Switching Function | Zero Voltage Switching |
| Maximum Load Current | 30A |
| Standards/Approvals | RoHS, CE |
| Minimum Control Voltage | 90V ac/dc |
| Maximum Control Voltage | 280V ac/dc |
| Off State Leakage Current | 1mA |
Key Features
- This solid state relay supports a maximum load current of 30A for efficient switching.
- Mounts easily on DIN rails with a compact 22.5mm wide package.
- Accepts control voltages from 90V to 280V AC/DC allowing flexible integration.
- Supports maximum load voltage of 600Vrms suitable for various industrial applications.
- Features zero voltage switching for reduced electrical noise and improved lifespan.
- Resistant to operating temperatures from -40°C to 80°C ensuring durability in harsh environments.
- Equipped with MOSFET output type and LED input indicator for status monitoring.
- Incorporates IP20 touch safe housing for user safety and protection.
Product Description
Crydom DR22 Series Solid State Relay DR22 is engineered for industrial applications requiring robust and reliable switching with a 30A maximum load current and 600Vrms maximum load voltage capability. This DIN rail mount relay is designed to support control voltages spanning from 90V to 280V AC/DC, providing versatile integration options for automated systems.
The relay features a zero voltage switching function that minimizes electrical noise and extends relay lifespan, critical for demanding industrial and manufacturing environments. Its MOSFET output type ensures efficient switching, complemented by an LED input indicator that provides clear operational status visibility.
Suitable for use in industrial automation, HVAC control, manufacturing, and electrical panel applications, the DR22 solid state relay withstands wide operating temperatures from -40°C to 80°C, ensuring reliable functionality even in harsh conditions. The IP20 rated, touch-safe housing enhances user safety and device protection.
The compact 22.5mm wide DIN rail form factor fits standard industrial mounting rails and allows for space-efficient panel designs. With dimensions of 91.9mm height, 116mm width, and 22.5mm length, it accommodates installation in most control cabinets.
This relay meets RoHS and CE compliance requirements, making it an environmentally responsible and certified choice for industrial electrical controls. It is equipped with screw terminal type connections and supports single pole (SP) contact configuration for straightforward wiring.
Maximum Load Current: 30A for handling medium to high power loads. DIN Rail Mounting for easy integration into electrical control panels. Control Voltage Range: 90V to 280V AC/DC to suit various control signal standards.
Zero Voltage Switching to reduce switching transient effects and improve life. Operating Temperature Range: -40°C to 80°C for reliable operation in extreme environments. MOSFET output provides efficient and fast switching operation.
IP20 rated housing offers user safety from electric shock. LED indicator clearly shows relay status for maintenance and troubleshooting. Complies with RoHS and CE directives for quality and safety standards. Compact and efficient industrial design to optimize panel space.
Ideal for industrial, manufacturing, automation, HVAC, and electrical distribution use cases. Browse more industrial Solid State Relays and electrical components on EnvMart for your automation solutions.
Looking to purchase in bulk?
- Purchase item in bulk quantity
- Get best price for your business
Frequently Asked Questions
The maximum load current for this model is 30A, making it suitable for medium to high power loads.
It accepts control voltages ranging from 90V to 280V AC/DC, allowing for versatile integration into various systems.
This unit supports a maximum load voltage of 600Vrms, suitable for various industrial applications.
It features a MOSFET output type, which ensures efficient and fast switching operations.
The relay operates effectively within a temperature range of -40°C to 80°C, ensuring reliability in extreme conditions.
This model is designed for DIN rail mounting, which allows for easy integration into electrical control panels.
The dimensions of this relay are 91.9mm in height, 116mm in width, and 22.5mm in length.
It features an IP20 rated housing that provides touch safety, protecting users from electric shock.
This model utilizes zero voltage switching, which helps to reduce electrical noise and extend the relay's lifespan.
It is equipped with screw terminal type connections for straightforward wiring.
The relay complies with RoHS and CE directives, ensuring it meets quality and safety standards.
This relay is suitable for industrial automation, HVAC control, manufacturing, and electrical panel applications.
