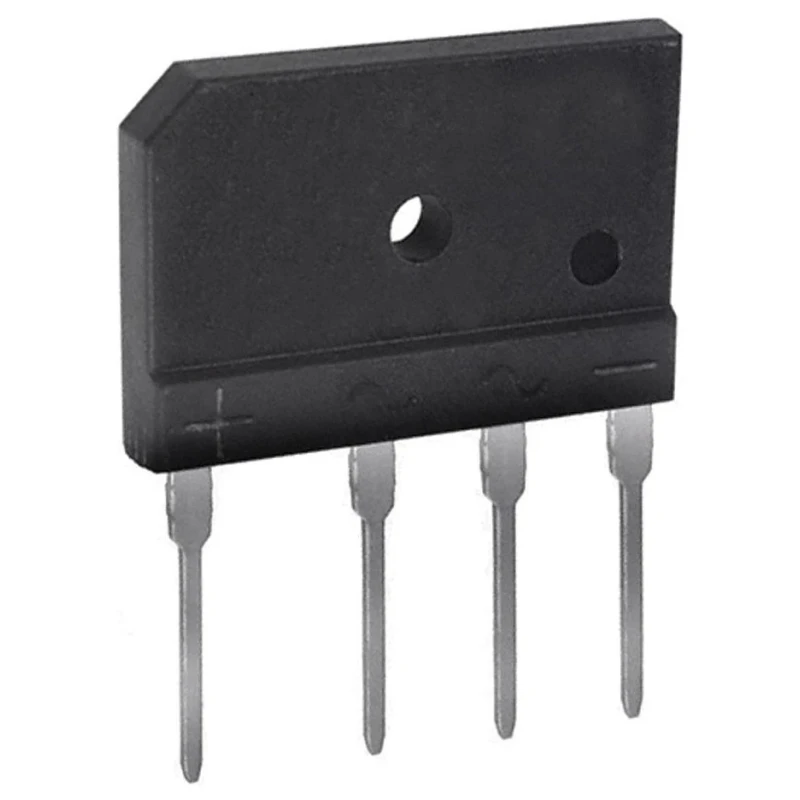

HY Electronic Corp Bridge Rectifier 1000 V 175 A, 4-Pin Single GBJ610

HY Electronic Corp GBJ610 bridge rectifier is a high-performance semiconductor device designed for AC to DC conversion in electronic circuits. Featuring 4-pin single-phase configuration and GBJ package, it supports a peak reverse repetitive voltage (VRRM) of 1000 V and a forward current (IF) of 6 A.

Manufactured with glass passivated technology, this bridge rectifier ensures stable and reliable electrical performance. The component operates from -55°C up to a maximum of 150°C, making it suitable for demanding industrial and electronic applications.

Compact dimensions measuring 30.3 mm in length, 19.7 mm in height, and 4.8 mm in width allow easy integration onto printed circuit boards using through-hole mounting methods. The plastic body material complies with UL94V-0 flammability standards, ensuring fire resistance and safety.

The device boasts a low forward voltage drop of 1 V, which helps improve power efficiency by reducing conduction losses. It can handle peak non-repetitive forward surge current of 175 A, allowing it to withstand transient surges and spikes common in power electronics.

Glass passivated bridge rectifier with GBJ package type for reliable operation. Supports a continuous forward current of 6 A with peak repetitive reverse voltage of 1000 V. Operates within a temperature range of -55°C to 150°C for robust industrial applications.

Compact PCB-mountable design with through-hole mount and dimensions 30.3 x 19.7 x 4.8 mm. Plastic material with UL94V-0 flammability rating for durability and safety. Low forward voltage drop of 1 V reduces power losses during conduction.

Peak reverse current of 500 μA ensures low leakage and energy efficiency. Capable of withstanding 175 A peak non-repetitive forward surge current for transient conditions.

This bridge rectifier is ideal for use in industrial electronics, power supplies, semiconductor circuits, and other electronic component assemblies requiring reliable AC to DC conversion with high current handling capability.

Made in China, the GBJ610 supports standard electronic manufacturing and design requirements. Its robust specifications deliver dependable performance in demanding environments. Explore the Electronics & Electricals category at EnvMart for a wide selection of semiconductor components including Bridge Rectifiers from trusted brands like HY Electronic Corp.
