HY Electronic Corp Bridge Rectifier, 1000 V 200 A, 4-Pin Single GBJ810

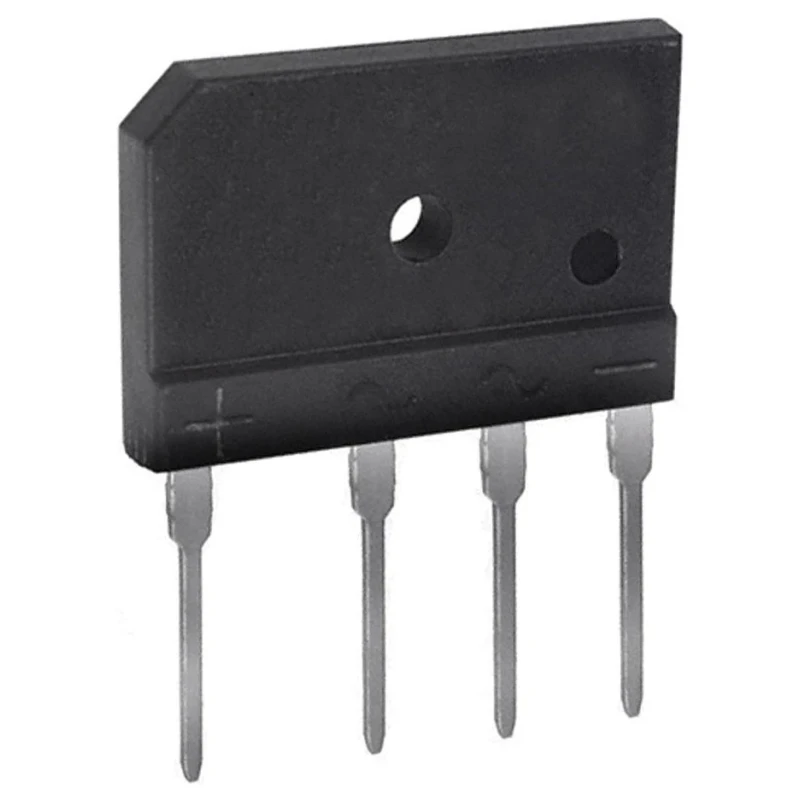

HY Electronic Corp GBJ810 Bridge Rectifier is a reliable glass passivated single-phase bridge rectifier designed for robust power conversion applications. It features a peak reverse repetitive voltage of 1000 V and supports a forward current rating of 8 A, making it suitable for a wide range of industrial and automotive electronic circuits.

The bridge rectifier comes in a GBJ series through-hole package with a 4-pin configuration, ensuring straightforward PCB mounting and integration into electronic assemblies. Its highly durable construction enables operation across a wide temperature spectrum, from -55°C to 150°C, ensuring dependable performance even in harsh environmental conditions.

This device’s low forward voltage drop of 1 V contributes to high efficiency by minimizing power loss during rectification. The peak surge forward current reaches 200 A, allowing it to handle transient current spikes common in power electronics. A minimal peak reverse current of 500 μA ensures low leakage, further optimizing device performance.

Compliant with automotive standard AEC-Q101, the GBJ810 bridge rectifier is well-suited for automotive electronics and various industrial applications requiring stable and reliable AC to DC conversion. Its compact dimensions (30.3 mm length, 19.7 mm height, and 4.8 mm width) allow for efficient space utilization on printed circuit boards.

Uses include power supplies, motor drives, battery chargers, and other systems where converting AC voltage to regulated DC voltage is essential. The bridge rectifier supports single-phase AC input and provides smooth DC output, contributing to robust and efficient power system design.

The device is a glass passivated bridge rectifier with a 1000 V peak reverse repetitive voltage rating. It supports a high forward current of 8 A and peak surge current up to 200 A. Designed with a through-hole GBJ package type and 4-pin configuration for easy PCB mounting.

Operates reliably within a temperature range of -55°C to 150°C ensuring performance under harsh conditions. Features a low peak forward voltage drop of 1 V and minimal peak reverse current of 500 μA. Complies with automotive standard AEC-Q101, suitable for automotive and industrial electronics.

Compact dimensions with length 30.3 mm, height 19.7 mm, and width 4.8 mm. Ideal for converting alternating current (AC) to direct current (DC) in power electronics circuits. Explore more high-quality Bridge Rectifiers and semiconductor components in EnvMart's electronics section for professional and industrial applications.
