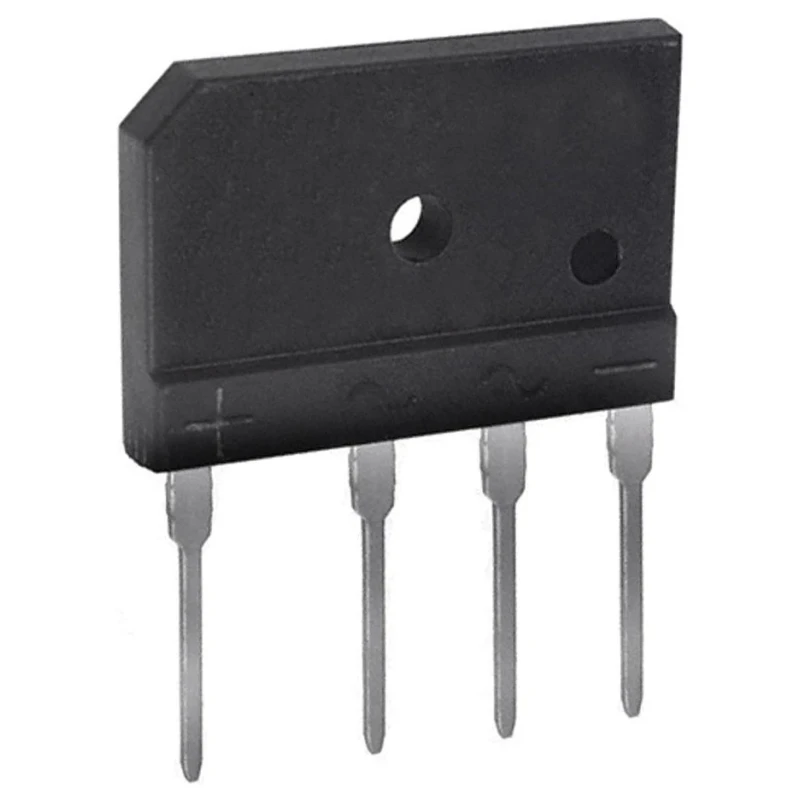

HY Electronic Corp Bridge Rectifier 600 V 240 A 4-Pin Single GBJ1506

HY Electronic Corp GBJ1506 Bridge Rectifier is a high-quality, glass passivated semiconductor device designed to convert alternating current (AC) into direct current (DC). This 4-pin single-phase bridge rectifier operates at a peak reverse repetitive voltage of 600 V and can handle a forward current of 15 A with surge capability up to 240 A, making it suitable for demanding electronic applications.

The device features a through-hole mount type with a GBJ package and compact size measuring 30.3 mm in length, 19.7 mm in height, and 4.8 mm in width. It functions reliably in a broad temperature range from -55°C to 150°C, thus ensuring durability under various operating conditions. Its low forward voltage drop of 1 V enhances efficiency by minimizing energy loss during conduction.

This bridge rectifier is ideal for use in industrial electronics, power conversion systems, and other electronic equipment requiring robust rectification. Its construction includes UL 94V-0 flammability-rated plastic, and it's manufactured in China, ensuring compliance with industry standards.

Features a peak reverse repetitive voltage rating of 600 V. Designed for a forward current of 15 A and surge current up to 240 A. Compact size with dimensions 30.3 mm length, 19.7 mm height, and 4.8 mm width. Operates reliably between -55°C to 150°C maximum temperature.

Through-hole mount type with GBJ package format. Single-phase configuration with 4 pins for easy PCB mounting. Low forward voltage drop of 1 V ensuring efficient performance. Peak reverse current limited to 500 μA for stability.

This product is new, originating from China, and is suitable for a wide range of commercial and industrial electronic component applications. Explore a comprehensive selection of semiconductors and Bridge Rectifiers on EnvMart for all your electronics project and manufacturing needs.
