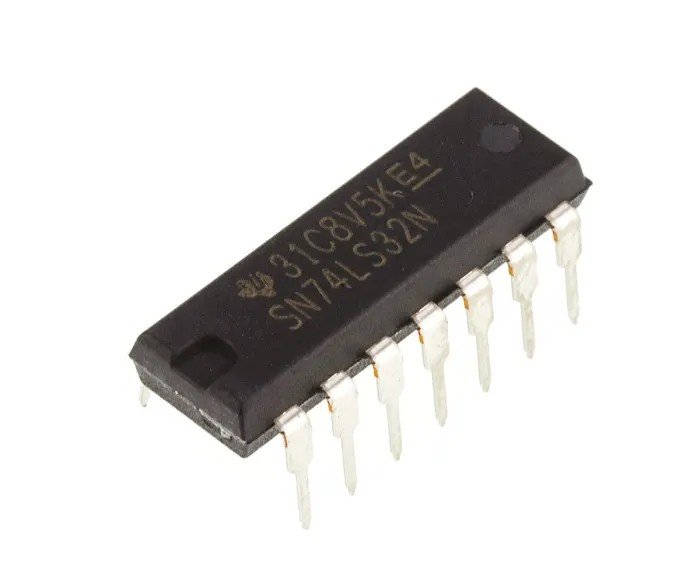

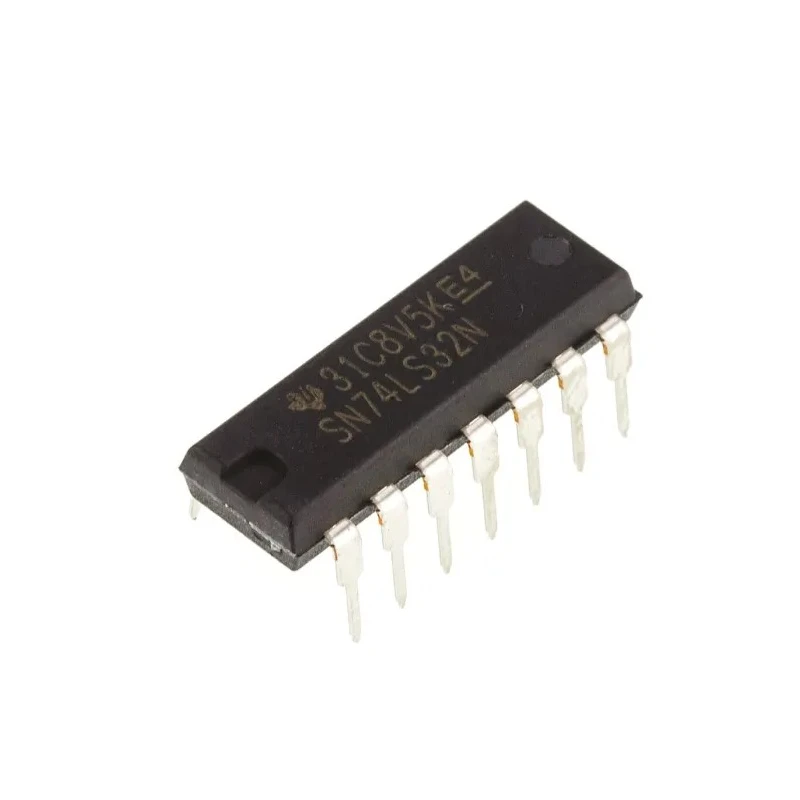

Texas Instruments 4 2-Input OR Logic Gate 14-Pin PDIP SN74LS32N

Texas Instruments SN74LS32N 4 2-Input OR Logic Gate in a 14-Pin PDIP package is a high-quality digital logic IC designed for electronic and industrial applications, offering four independent 2-input OR gates with LS family low power Schottky technology. Operating at a supply voltage between 4.75V and 5.25V, the device ensures fast switching speeds with a maximum propagation delay of 5 nanoseconds. Its through-hole mount design facilitates easy integration into printed circuit boards (PCBs).

This logic gate IC operates reliably within an ambient temperature range from 0°C to 70°C and supports output currents suitable for various signal levels, with a maximum low-level output current of 8mA and a high-level output current of -0.4mA. The compact PDIP package dimensions (length 19.3 mm and height 4.57 mm) make it well-suited for space-constrained designs requiring robust logic operations.

The SN74LS32N does not include Schmitt Trigger inputs, nor is it certified for automotive industry standards, making it ideal for general-purpose logic applications in industrial, laboratory, and manufacturing equipment. The 74LS family technology combines bipolar junction transistor circuits with Schottky diode clamps to reduce power consumption while achieving speeds comparable to original 74TTL devices.

Four 2-input OR gates within a 14-pin PDIP package. Low power Schottky logic family ensures efficient energy use. Maximum propagation delay time of 5ns for quick signal transitions. Operating temperature range suitable for most industrial environments.

Through-hole mounting supports robust physical connections. Pin count and layout compatible with multiple PCB designs. Standard dimensions of 19.3 mm length and 4.57 mm height. Peak output current parameters accommodate diverse load requirements.

Lacks Schmitt Trigger input and automotive specification compliance.

This Texas Instruments Logic Gate is commonly employed in applications including digital computing, signal processing, and general electronic circuit design in industrial and laboratory settings. EnvMart offers this product to support professionals seeking reliable semiconductor components for precision electronic system assembly.
