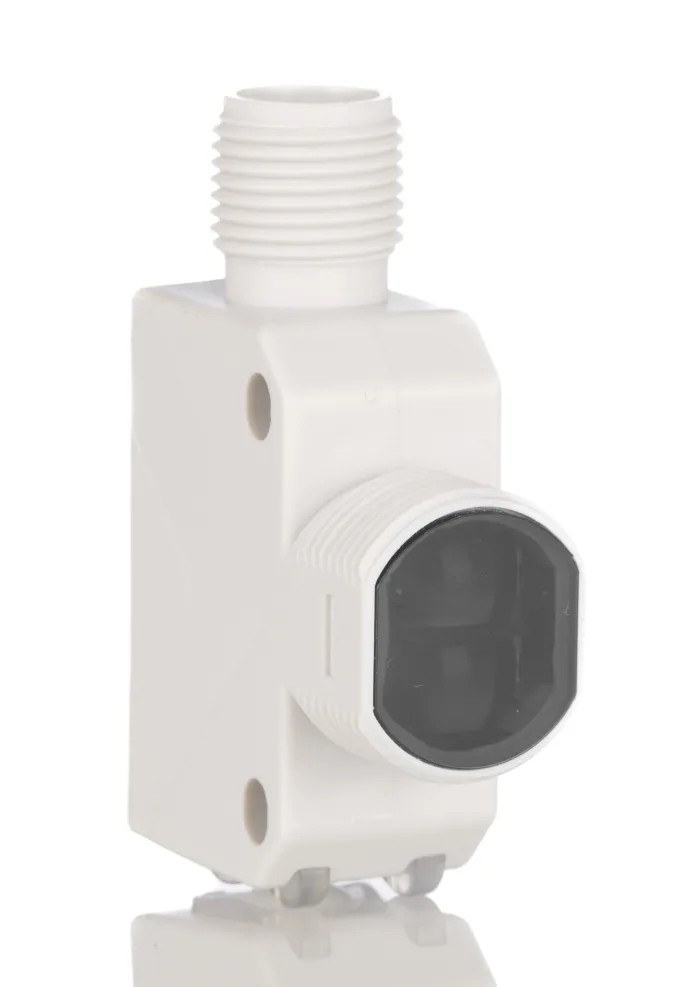

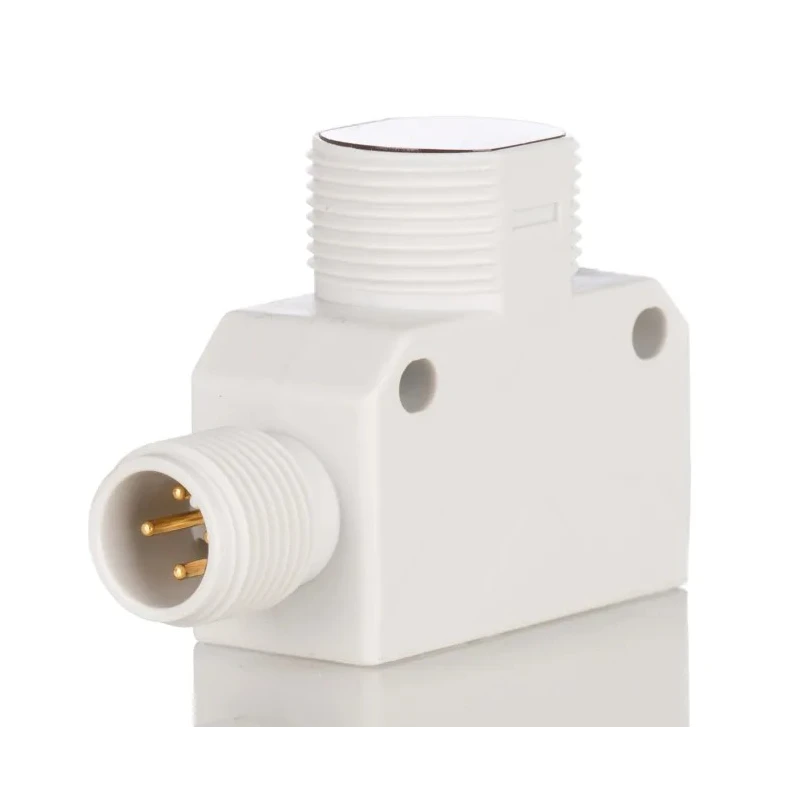

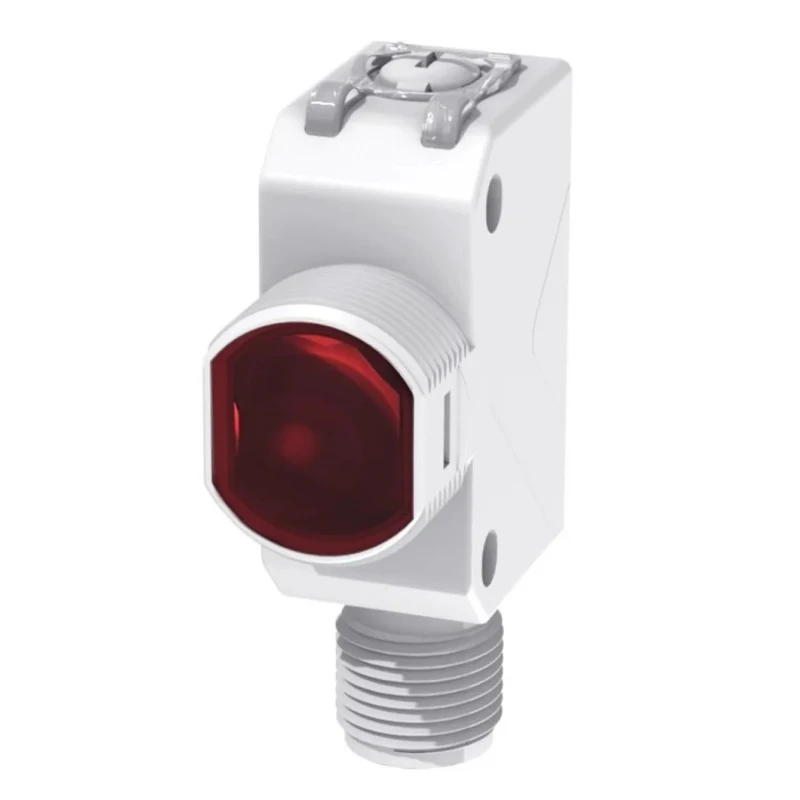

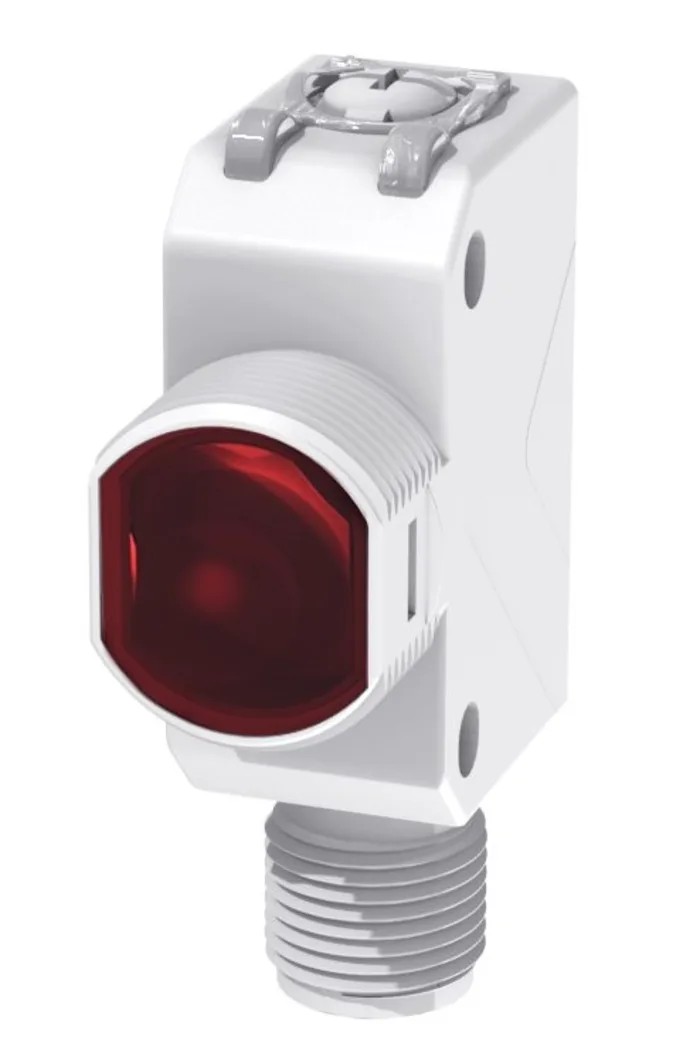

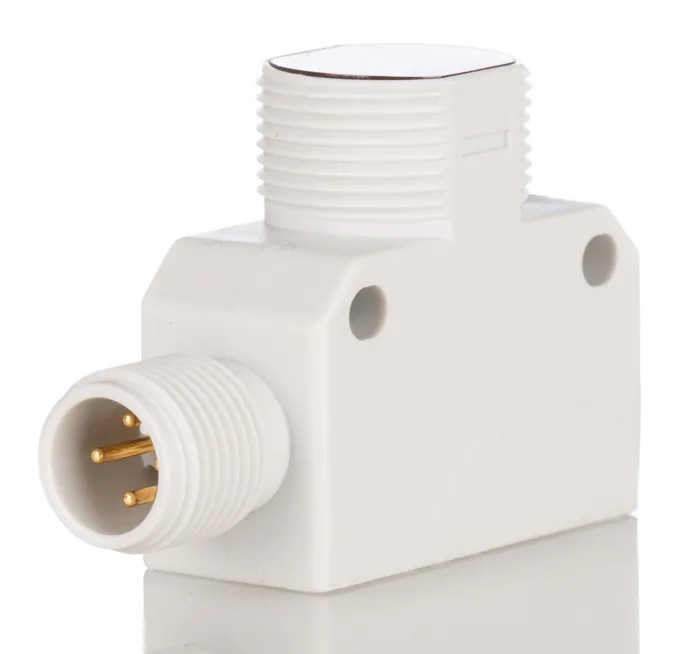

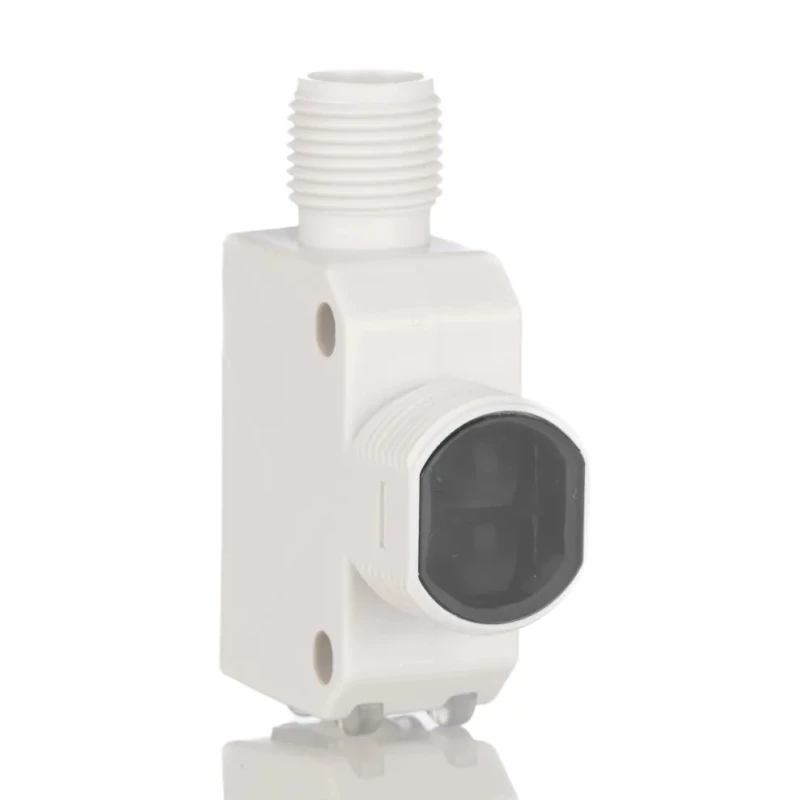

RS PRO Through Beam Photoelectric Sensor Barrel Style 20 m Detection Range NPN NO/NC Output IP67 IP Rated IP67
Specifications
| Country of Origin | China |
|---|---|
| Brand | RS PRO |
| Response time | 1ms |
| Light Source | Infrared LED |
| Detection range | 20 m |
| Model | IP67 |
| IP Rating | IP67 |
| Mount Type | Screw |
| Housing Material | ABS |
| Output type | NPN NO/NC |
| Series | RS PRO |
| Maximum Operating Temperature | 60°C |
| Thread Size | M18 |
| Minimum Operating Temperature | -15°C |
| Maximum Current | 100mA |
| DetectIon Type | Through Beam |
| Terminal type | M12 Connector |
| Maximum dc Voltage | 30V dc |
| Standards/Approvals | CE Certified, UL Certified |
| Sensor Style | Barrel |
Key Features
- Operates with an infrared LED light source for accurate sensing.
- Features M12 connector terminal for reliable electrical connection.
- Built with ABS housing and screw mount for easy installation.
- Designed for operating temperatures from -15°C to 60°C.
- IP67 rated for protection against dust and water ingress.
- Compliant with CE and UL certifications ensuring quality and safety.
- Fast response time of 1 ms enables dynamic industrial applications.
- Maximum DC voltage tolerance is 30V dc with maximum current of 100mA.
Product Description
RS PRO IP67 model photoelectric sensor designed with a barrel form factor offers a robust through beam detection solution with a sensing range up to 20 meters. The sensor employs an infrared LED light source enabling reliable object presence detection irrespective of the object's material.
This sensor features a durable ABS housing and is mounted via screw thread M18, allowing secure and versatile installations in industrial setups. Its IP67 rating certifies its resistance to dust and water, making it ideal for challenging environments common in manufacturing lines and automation processes.
Equipped with a 2-meter PVC cable or M12 connector, the device ensures a dependable electrical connection supporting NPN NO/NC output configuration. With an operating temperature range from -15°C to 60°C and a quick 1 ms response time, this sensor meets the demands of high-speed industrial applications.
Certified under CE and UL standards, RS PRO’s PSR series sensors like the IP67 offer dependable performance for inspection, conveyor systems, and automated manufacturing controls. Its maximum operational voltage is 30V dc with a current limit of 100mA, ensuring compatibility and safety.
This product is manufactured in China and is part of RS PRO's comprehensive range of Photoelectric Sensors featuring versatile detection types including diffuse reflection and background suppression to suit various industrial needs.
Operates with an infrared LED light source for accurate sensing. Features M12 connector terminal for reliable electrical connection. Built with ABS housing and screw mount for easy installation. Designed for operating temperatures from -15°C to 60°C.
IP67 rated for protection against dust and water ingress. Compliant with CE and UL certifications ensuring quality and safety. Fast response time of 1 ms enables dynamic industrial applications. Maximum DC voltage tolerance is 30V dc with maximum current of 100mA.
Suitable for detecting objects up to 20 meters away using through-beam technology. Widely used in automation, manufacturing conveyors, and control systems. Explore more from the range of RS PRO sensors and photoelectric sensing solutions on EnvMart for industrial and automation applications.
Looking to purchase in bulk?
- Purchase item in bulk quantity
- Get best price for your business
Frequently Asked Questions
This model has a detection range of up to 20 meters, utilizing through beam technology for reliable object detection.
It features an NPN NO/NC output configuration, allowing for versatile integration into various systems.
The response time is 1 millisecond, making it suitable for dynamic industrial applications.
This sensor operates within a temperature range of -15°C to 60°C, accommodating various environmental conditions.
The housing is made of ABS, providing durability for industrial environments.
It is designed for screw mounting with an M18 thread size, allowing for secure installation in various settings.
It operates with an infrared LED light source, ensuring accurate sensing capabilities.
The maximum DC voltage tolerance is 30V, with a maximum current of 100mA, ensuring compatibility with various systems.
It is CE and UL certified, which ensures compliance with safety and quality standards.
It features an M12 connector terminal for reliable electrical connections.
This sensor is suitable for applications in automation, manufacturing conveyors, and control systems.
This sensor is manufactured in China, as indicated in its specifications.
