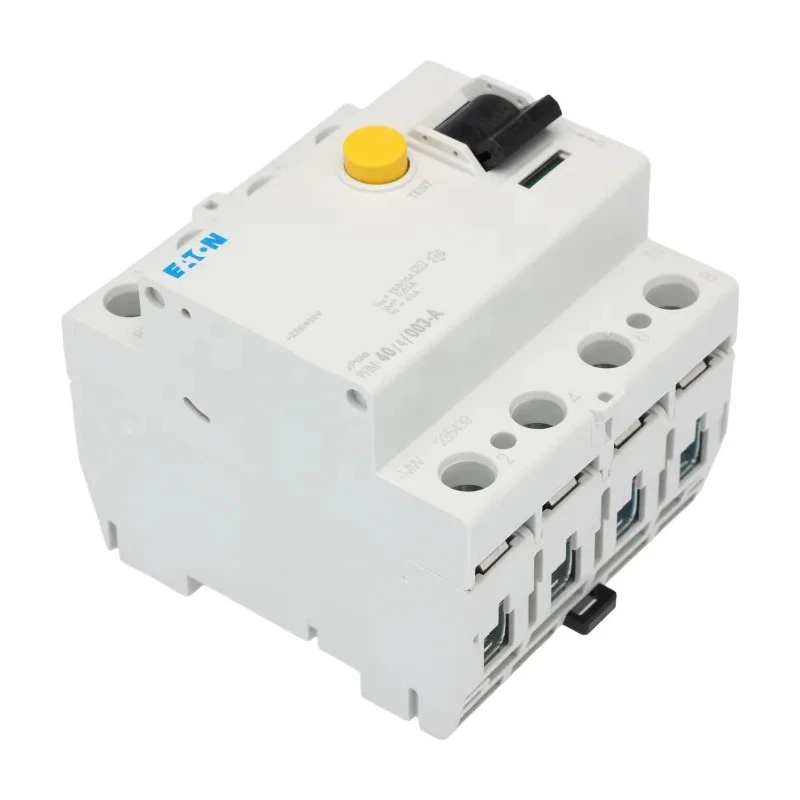

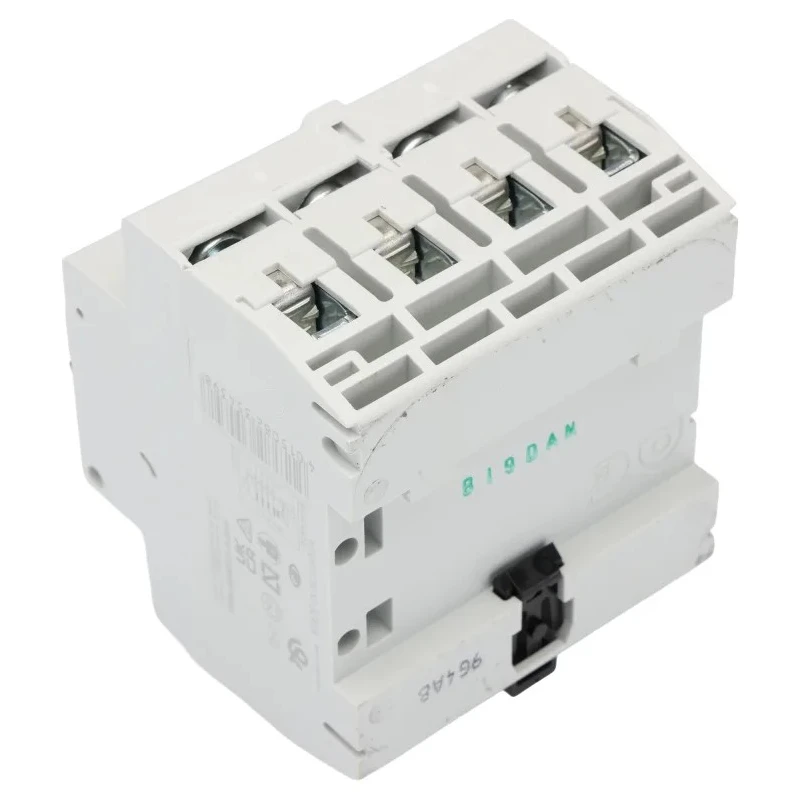

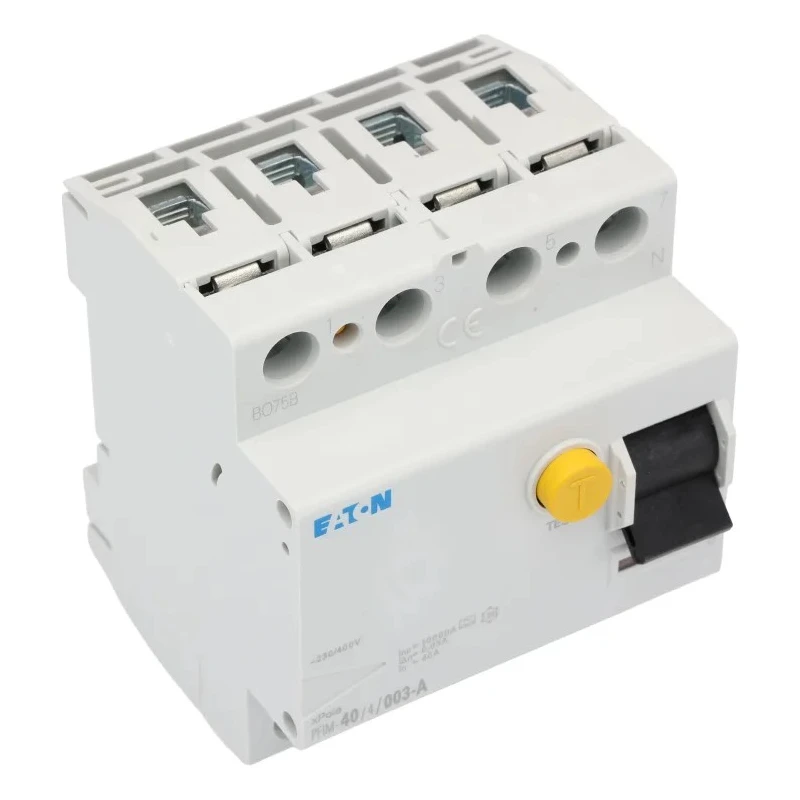

Eaton PFIM Series Residual Current Device 40A 4-Pole 30mA Type A 10kA Breaking Capacity 230V 400V 235439 PFIM-40/4/003-A-MW

Eaton 235439 PFIM-40/4/003-A-MW Residual Current Device is engineered for reliable earth leakage protection in commercial and residential electrical installations. Rated for 40A current and featuring four poles, it monitors multiple circuits simultaneously to ensure operational safety.

This Type A RCD is sensitive to both AC and pulsating DC earth leakage currents, tripping instantly when leakage current exceeds 30mA. With a breaking capacity of 10kA, it safeguards medium-power systems against short circuits and overloads.

The device supports a rated AC voltage of 230V and 400V, making it versatile for a variety of supply systems. Mounting on standard DIN rails streamlines installation in electrical panels. It includes a toggle switch for convenient resetting after trips and a test button to verify functionality periodically.

The instantaneous break time provides rapid fault clearance, enhancing protection for connected equipment and personnel. The unit complies with CE standards and features IP20 protection for resistance against ingress of solid objects larger than 12mm, ensuring touchscreen safety.

Compact in size with dimensions of 80mm height, 70.5mm depth, and 65.5mm width, it is suitable for space-constrained setups. Screw terminals ensure secure and easy wiring connections. Produced in Romania, this Eaton PFIM series model exemplifies quality and durability in electrical protection devices.

Type A trip characteristics for detecting AC and pulsating DC leakage. Instantaneous break time for immediate disconnection on faults. 10kA breaking capacity suitable for medium-power installations. DIN rail mount design allows fast and efficient installation.

Toggle switch actuator and test button enhance usability and safety. IP20 protection rating offers touch-safe enclosure. Compact form factor fits in standard electrical panels. Screw terminal connections for secure wiring.

CE certified quality manufactured in Romania.

This Eaton Residual Current Device is ideal for applications including process control engineering, domestic appliance safety, and commercial electrical systems. EnvMart offers this trusted Eaton PFIM RCD for improving workplace safety and ensuring compliance with electrical safety standards.
