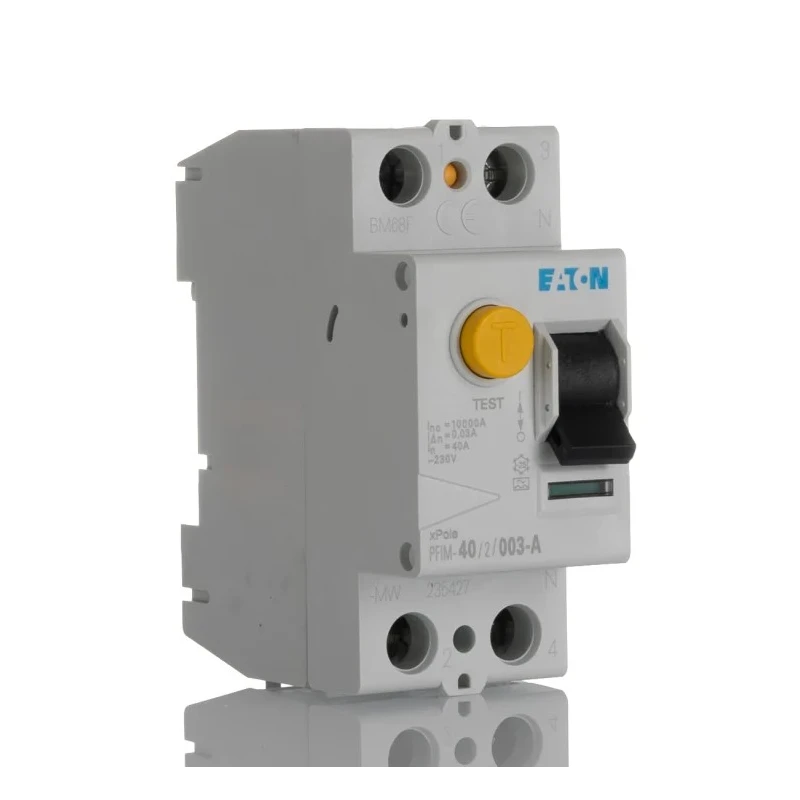

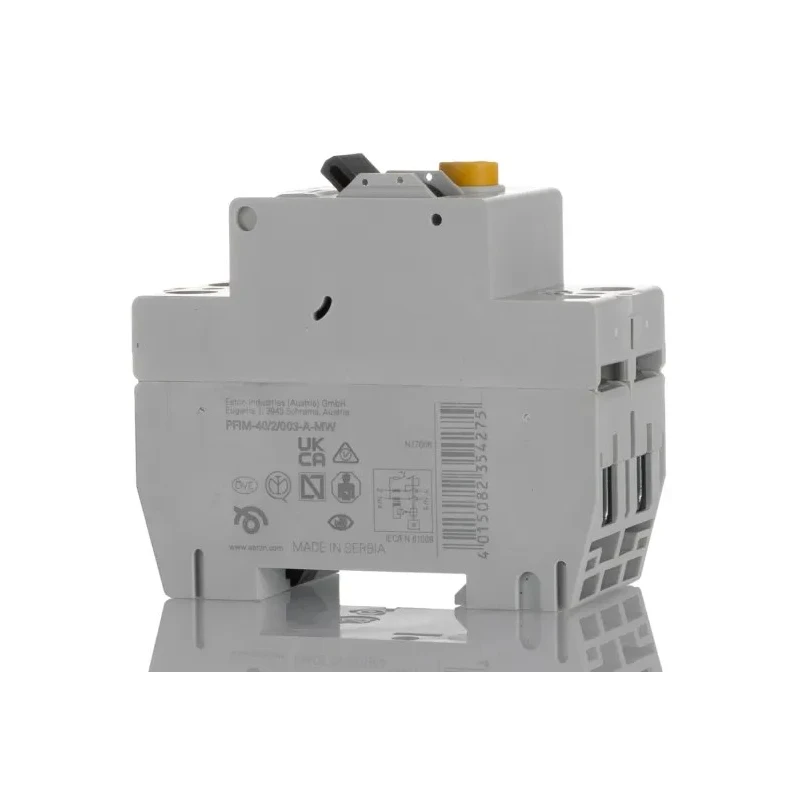

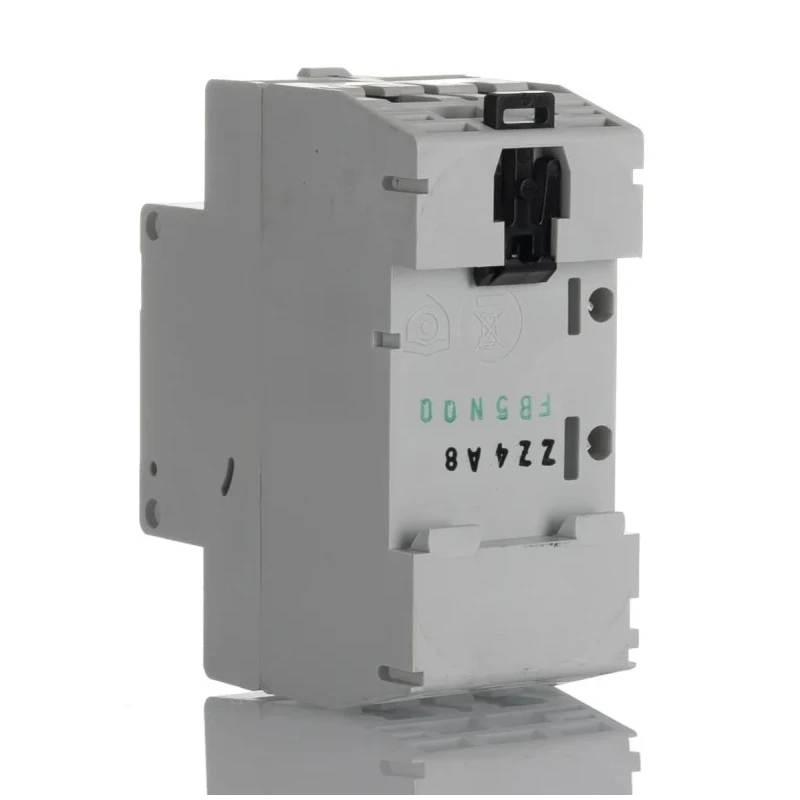

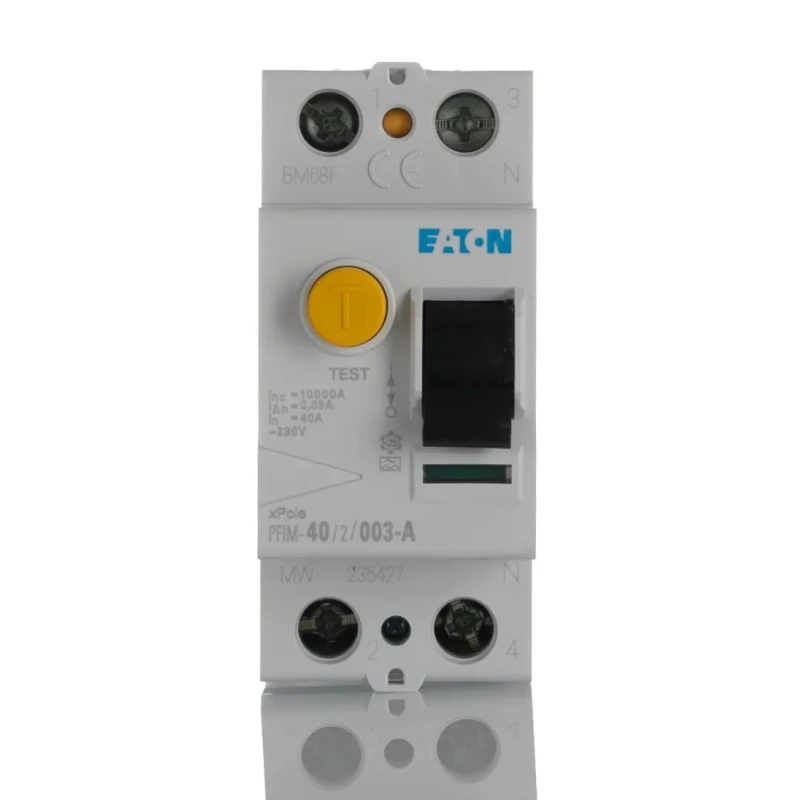

Eaton Residual Current Device PFIM Series 40A, 2-Pole, 30 mA Trip Sensitivity, Type A, 10 kA 235427 PFIM-40/2/003-A-MW
Specifications
| Country of Origin | India |
|---|---|
| Range | PFIM |
| Brand | Eaton |
| Height | 80mm |
| Model | 235427 PFIM-40/2/003-A-MW |
| Depth | 70.5mm |
| Width | 70mm |
| Mount Type | DIN Rail |
| Current Rating | 40A |
| Series | PFIM |
| Terminal type | Screw |
| Breaking Capacity | 10kA |
| Number of Poles | 2 |
| Standards/Approvals | IEC/EN 61008 |
| Tripping Characteristics | Type A |
| Tripping Mechanism | Electromagnetic |
| Reset Actuator Type | Toggle Switch |
| Trip Sensitivity | 30mA |
| Break Time | Instantaneous |
| Earth Leakage Protection Type | Type A |
Key Features
- Features a trip sensitivity of 30 mA for detecting low current leakages effectively.
- Equipped with 2 poles for dual circuit protection.
- Breaking capacity of 10 kA ensures safe disconnection under fault conditions.
- Instantaneous break time delivers rapid response to electrical faults.
- Mounts easily on DIN rail for convenient installation.
- Utilizes screw terminal contacts for secure electrical connections.
- Suitable for residential and industrial electrical safety applications.
- Operates at rated AC voltage of 230V with compatibility up to 400V.
Product Description
Eaton 235427 PFIM-40/2/003-A-MW Residual Current Device is designed for effective electrical protection with a 40A current rating and Type A trip sensitivity of 30 mA. This device ensures safety by quickly disconnecting the circuit upon detecting leakage currents, making it ideal for residential, industrial, and commercial electrical installations.
Constructed for durability, it features a 10 kA breaking capacity capable of handling high fault currents safely. Its 2-pole configuration allows dual circuit protection, mounted conveniently on a DIN rail to facilitate straightforward installation and maintenance. The screw terminal design provides assured connectivity, reducing risk of loose contacts.
This RCD complies with IEC/EN 61008 standards and is built for reliable electromagnetic tripping with instantaneous break time, ensuring rapid intervention during leakage faults. It supports rated AC voltages of 230V and 400V to accommodate diverse application requirements.
The device is resistant to ultraviolet radiation, further enhancing its durability in various environments, including outdoor applications. Operated via a toggle switch reset actuator, it offers straightforward manual reset functionality after a fault trip.
Applications for this Eaton PFIM Series Residual Current Device include automation systems, electronic installations, mechanical industry electrical safety, and comprehensive protection in electrical panels and switchgear assemblies.
Trip sensitivity of 30 mA detects minimal current leakage for enhanced safety. DIN rail mounting for quick and secure installation. Screw terminal type terminals ensure secure and stable connections. Instantaneous break time for immediate fault response.
Electromagnetic mechanism for reliable tripping performance. Resistant to ultraviolet radiation for outdoor durability. Toggle switch actuator allows easy reset after trip.
Choose Eaton products for trusted electrical safety and compliance with international standards. This RCCB is an integral component of safe electrical distribution systems in industrial, residential, and commercial environments.
Explore more in the Residual Current Device category at EnvMart for a wide range of circuit protection solutions from top brands.
Looking to purchase in bulk?
- Purchase item in bulk quantity
- Get best price for your business
Frequently Asked Questions
This model has a current rating of 40A, making it suitable for various electrical applications.
It features a trip sensitivity of 30 mA, which effectively detects low current leakages.
The breaking capacity of this RCD is 10 kA, ensuring safe disconnection under fault conditions.
This model is equipped with 2 poles, providing dual circuit protection.
It mounts easily on a DIN rail, facilitating straightforward installation and maintenance.
The dimensions are 80mm in height, 70mm in width, and 70.5mm in depth.
It utilizes screw terminal contacts, ensuring secure and stable electrical connections.
The reset actuator type is a toggle switch, allowing for easy manual reset after a fault trip.
It complies with IEC/EN 61008 standards, ensuring reliability and safety in electrical installations.
The tripping mechanism is electromagnetic, providing reliable performance during electrical faults.
Yes, it is resistant to ultraviolet radiation, enhancing its durability for outdoor use.
