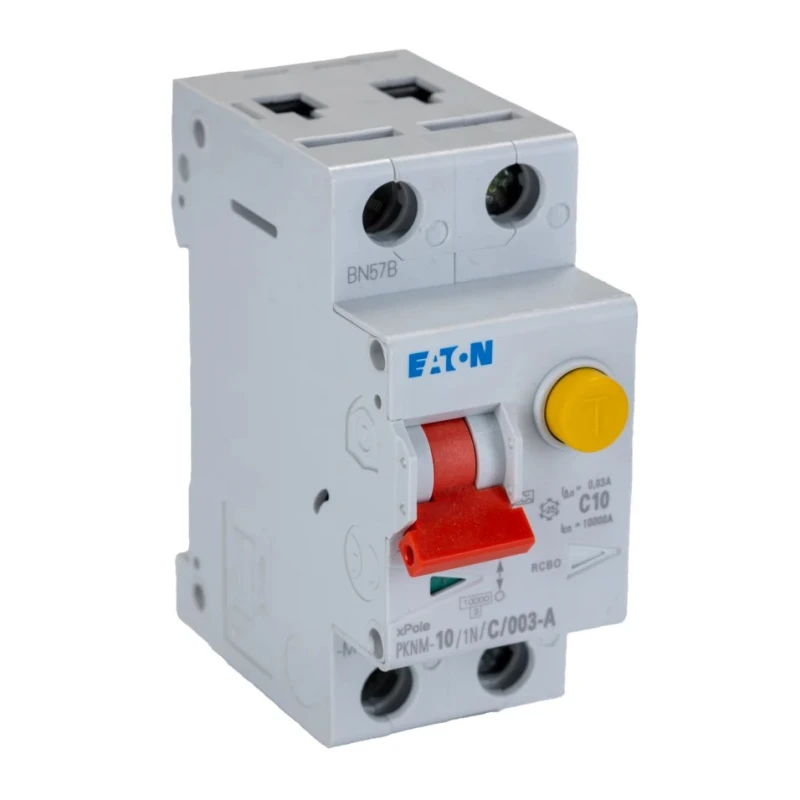

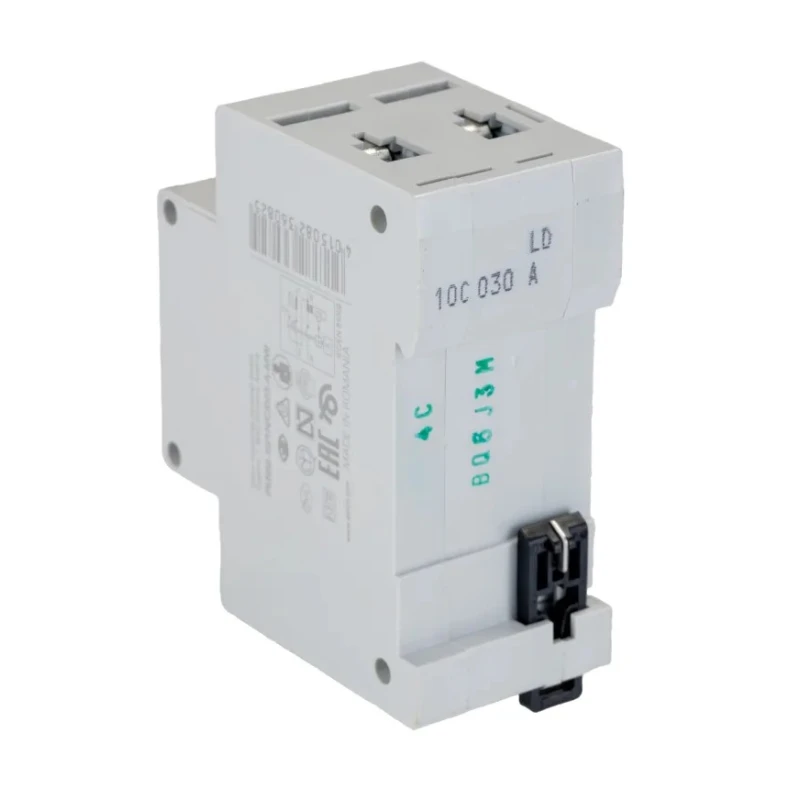

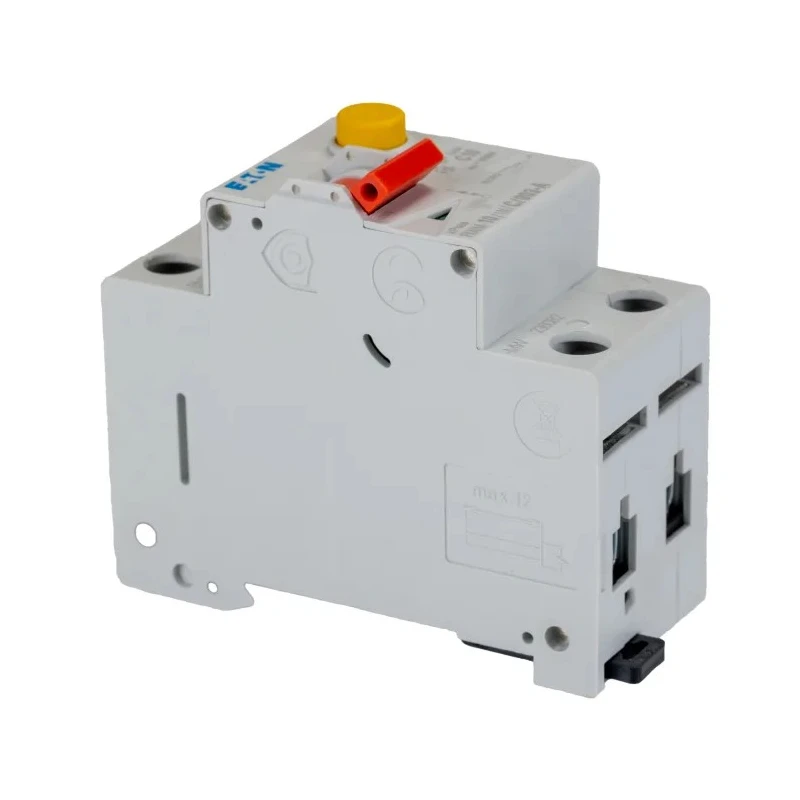

Eaton PKNM Series Residual Current Device 10A 2-Pole 30mA Type C 10kA Breaking Capacity 230V AC 236082 PKNM-10/1N/C/003-A-MW

Eaton 236082 PKNM-10/1N/C/003-A-MW Residual Current Device (RCD) is engineered for industrial and commercial electrical installations requiring robust protection against electrical shocks and leakage currents. Rated at 10A and designed with two poles, this RCD safeguards both the phase and neutral conductors in single-phase systems operating at 230 V AC.

Its type C tripping characteristic ensures suitability for circuits with higher motor loads or non-linear loads that demand enhanced sensitivity. The device features a trip sensitivity of 30 milliamperes, which provides reliable protection by detecting even small leakage currents before hazard escalation.

The electromagnetic tripping mechanism delivers instantaneous fault response, minimizing the risk of electrical accidents. Installation is simplified with screw terminals and DIN rail mounting compatibility, ensuring secure and standard-compliant setup.

Visual indicators using red and green contacts allow quick operational status checks, facilitating maintenance and safety monitoring. Resetting the device after a fault is straightforward via the front toggle switch ensuring minimal downtime in industrial or commercial environments.

With a high breaking capacity of 10 kA, the device can safely interrupt fault currents without damage, maintaining circuit integrity. Its compact form factor of 80 mm height, 70 mm width, and 70.5 mm depth allows flexible placement in electrical panels.

Manufactured in Romania and certified under CE standards, this Eaton RCD meets stringent safety and quality requirements essential for industrial, commercial, and manufacturing applications. It is ideal for environments prioritizing electrical safety, such as factories, laboratories, water treatment plants, HVAC systems, and construction sites.

This RCD features a 10A current rating suitable for single-phase electrical circuits. The device includes two poles providing protection for both phase and neutral conductors. Trip sensitivity is set at 30 mA, ensuring safety from leakage currents.

Screw terminals facilitate secure and rapid electrical connections. It is designed for DIN Rail mounting, fitting standard industrial frames. Red and green contact indicators enable quick status verification. Equipped with an electromagnetic tripping mechanism for instantaneous response.

The toggle switch allows easy manual reset after fault rectification. Dimensions are compact with height 80 mm, width 70 mm, depth 70.5 mm. Manufactured in Romania under CE standards assuring quality and safety compliance.
