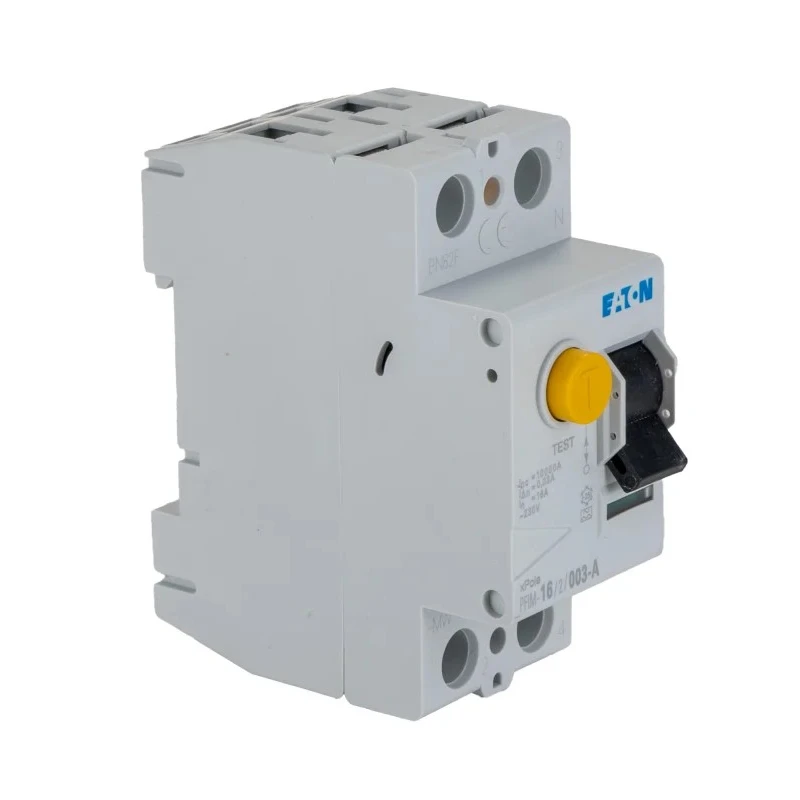

Eaton Residual Current Device 16A 2-Pole 30 mA Type A 10 kA 230V PFIM Series 235423 PFIM-16/2/003-A-MW

Eaton 235423 PFIM-16/2/003-A-MW Residual Current Device (RCD) is engineered for reliable earth leakage protection in both residential and commercial electrical installations. This device has a current rating of 16 amps and a sensitive trip mechanism calibrated at 30 milliamperes, efficiently detecting leakage currents to prevent electric shocks and fire hazards. Designed to be mounted on a standard DIN rail, its robust yet compact dimensions of 80mm height, 70mm width, and 70.5mm depth make it adaptable to various electrical panels.

Constructed to meet the IEC/EN 61008 certification, the PFIM series ensures industry-standard safety and performance. The instantaneous break time feature guarantees immediate interruption of faulty currents, thereby enhancing user safety. With a breaking capacity of 10 kiloamperes, this RCD can withstand high fault currents, supporting electrical circuits with demanding load requirements.

Its 2-pole configuration and Type A tripping characteristics provide versatile application, protecting both AC and pulsating DC earth leakage currents. Screw terminal connections facilitate secure and easy wiring. The device employs an electromagnetic tripping mechanism combined with a toggle switch actuator for manual reset, promoting ease of use and reliable operation.

Commonly applied in residential homes, commercial buildings, and light industrial environments, this RCD is suited for protection of circuits rated up to 230V voltage systems. Its ambient operating temperature range between -25°C to 55°C enables it to perform consistently under varying environmental conditions.

Reliable earth leakage detection with 30mA sensitivity. Rated current of 16A with 2-pole construction. Instantaneous break time safety feature. DIN rail mounting for easy installation. Compliant with IEC/EN 61008 safety standards.

10kA breaking capacity for high fault tolerance. Toggle switch actuator for manual reset. Screw terminal wiring for secure connections. Compact size fits standard distribution boards. Electromagnetic tripping mechanism ensures prompt action.

The Eaton PFIM Series Residual Current Device enhances electrical safety in homes and commercial premises by efficiently detecting earth leakage currents and interrupting power to mitigate hazards. Its compliance with global standards and robust technical features make it a dependable choice for electrical engineers, electricians, and safety professionals. Explore the Electronics & Electricals category on EnvMart for a wide range of reliable circuit protection devices including this Eaton model.
