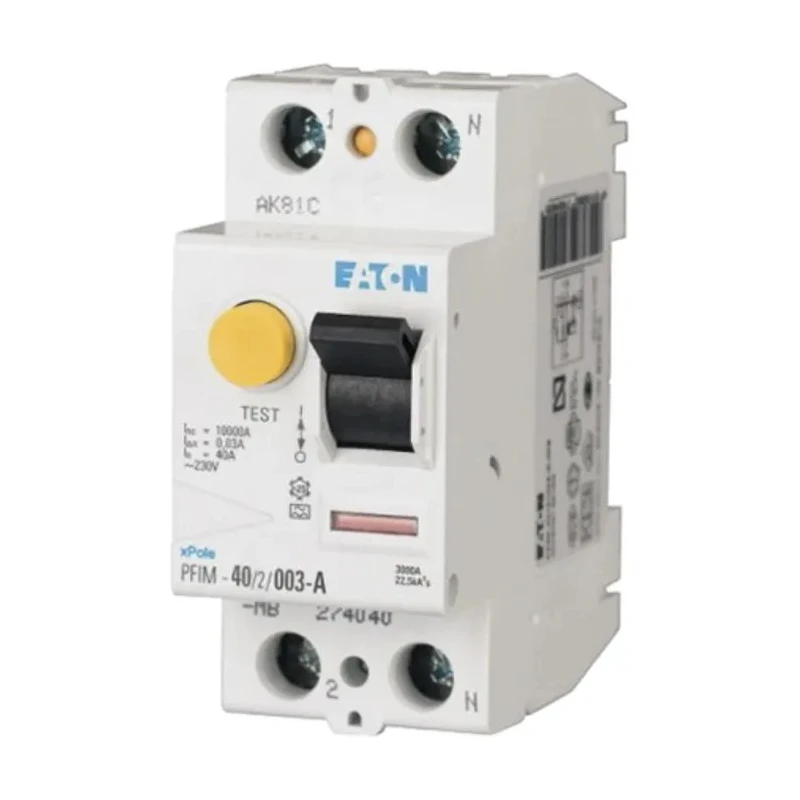

Eaton PFIM Series Residual Current Device 25A 2-Pole 300mA Type A 10kA Breaking Capacity 230/400V 235426 PFIM-25/2/03-A-MW
Specifications
| Country of Origin | India |
|---|---|
| Range | PFIM |
| Brand | Eaton |
| Height | 80mm |
| Model | 235426 PFIM-25/2/03-A-MW |
| Depth | 70.5mm |
| Width | 70mm |
| Mount Type | DIN Rail |
| Current Rating | 25A |
| Series | PFIM |
| Terminal type | Screw |
| Breaking Capacity | 10kA |
| Number of Poles | 2 |
| Standards/Approvals | IEC/EN 61008 |
| Rated AC Voltage | 230, 400V |
| Tripping Characteristics | Type A |
| Tripping Mechanism | Electromagnetic |
| Reset Actuator Type | Toggle Switch |
| Trip Sensitivity | 300mA |
| Break Time | Instantaneous |
Key Features
- Equipped with Type A tripping characteristics suitable for AC and pulsating DC currents.
- Designed for DIN rail mounting enabling easy installation in electrical panels.
- Breaking capacity rated at 10kA for high fault current interruption.
- Compact dimensions of 80mm height, 70mm width, and 70.5mm depth ensure space-saving setup.
- Features electromagnetic instantaneous tripping mechanism for reliable fault detection.
- Includes toggle switch reset actuator for simple manual reset operation.
- Compatible with rated AC voltages of 230V and 400V for flexible use.
- Conforms to IEC/EN 61008 standards ensuring compliance and safety.
Product Description
Eaton 235426 PFIM-25/2/03-A-MW Residual Current Device (RCCB) is designed for industrial use, offering robust fault current protection with a 25 amp current rating and 2 poles. Operating with a trip sensitivity of 300mA and Type A characteristics, it effectively detects AC and pulsating DC residual currents ensuring personnel and equipment safety.
This PFIM series device supports DIN rail mounting, ideal for integration into electrical distribution panels. Its compact form factor measuring 80mm in height, 70mm in width, and 70.5mm in depth helps optimize panel space utilization.
With a high breaking capacity of 10kA, it can interrupt significant fault currents instantly via its electromagnetic tripping mechanism. The device operates on rated AC voltages of 230 and 400 volts, meeting diverse voltage requirements in commercial and industrial facilities.
The reset actuator uses a convenient toggle switch allowing simple manual reset after a trip event. Eaton’s PFIM series RCCBs comply fully with IEC/EN 61008 standards, guaranteeing international safety and performance benchmarks.
Type A tripping characteristics enable detection of both AC and pulsating DC currents. High breaking capacity of 10kA ensures effective fault interruption. Compact design for efficient DIN rail mounting and panel integration.
Electromagnetic instantaneous tripping mechanism for rapid response. Toggle switch reset actuator facilitates easy manual reset. Rated for operating voltages of 230V and 400V accommodating multiple power systems. Conforms to IEC/EN 61008 for quality and safety assurance.
This Residual Current Device is highly suited for industrial electrical protection, automation systems, and commercial installations requiring sensitive and reliable leakage current detection and isolation. Eaton’s PFIM series RCCBs provide an advanced safety solution for electrical fault current mitigation to protect people and property.
Explore the complete range of Eaton circuit protection devices in the Electrical, Automation & Cables category at EnvMart.
Looking to purchase in bulk?
- Purchase item in bulk quantity
- Get best price for your business
Frequently Asked Questions
The current rating of this model is 25A.
It has a trip sensitivity of 300mA.
The breaking capacity is rated at 10kA, allowing it to interrupt significant fault currents.
This device is compatible with rated AC voltages of 230V and 400V.
It features Type A tripping characteristics, suitable for detecting AC and pulsating DC currents.
It is designed for DIN rail mounting, which facilitates easy installation in electrical panels.
The dimensions are 80mm in height, 70mm in width, and 70.5mm in depth.
It includes a toggle switch reset actuator for simple manual reset operation.
It conforms to IEC/EN 61008 standards, ensuring compliance and safety.
It uses an electromagnetic instantaneous tripping mechanism for reliable fault detection.
This device has 2 poles.
It is highly suited for industrial electrical protection and automation systems requiring sensitive leakage current detection.
