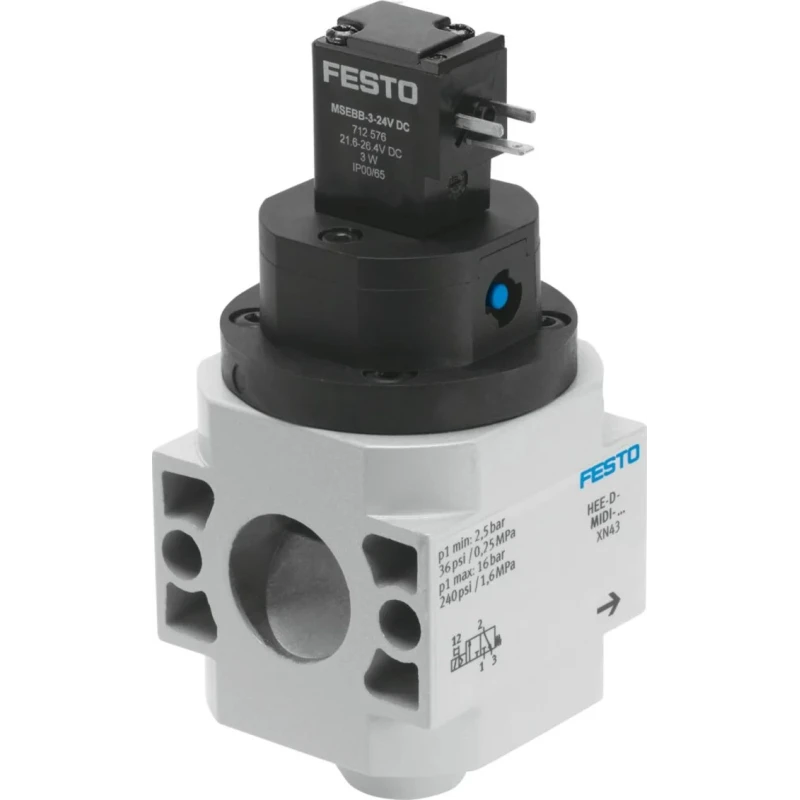

Festo Pneumatic Manual Control Valve, HEE Series, G 1/4 Port Size, 16 Bar Maximum Operating Pressure, Die Cast HEE-D-MIDI-24

Free Delivery in India | Lowest Global Shipping Charges

Festo Pneumatic Manual Control Valve, HEE Series, G 1/4 Port Size, 16 Bar Maximum Operating Pressure, Die Cast HEE-D-MIDI-24

Name: Festo Pneumatic Manual Control Valve, HEE Series, G 1/4 Port Size, 16 Bar Maximum Operating Pressure, Die Cast HEE-D-MIDI-24
Brand: FESTO
SKU: 276065
Price: 26967.3 INR
Availability: InStock



Category Pneumatic Manual Control Valve Brand FESTO Condition New

Specifications

Country of Origin	Hungary
Brand	Festo
Body Material	Die Cast Aluminium
Maximum Operating Pressure	16 bar
Length	122mm
Model	HEE-D-MIDI-24
Series	HEE
Number Of Ports	3
Maximum Operating Temperature	+60°C
Thread Size	1/4 in
Number of Positions	2
Port Size	G 1/4
Minimum Operating Temperature	-10°C
Standards/Approvals	ISO 8573-1:2010
Connection Thread Standard	G
Valve Function	3/2 Closed Monostable
Standards/Approvals ISO 8573-1	2010
Festo Pneumatic Solenoid Valve - 3/2 Electric G MS6 Series 24V dcBrand	Festo

Key Features

The valve is constructed with a durable die cast aluminium body for corrosion resistance.
Rated operating temperature ranges from -10°C to +60°C for versatile industrial usage.
Manual override with detenting allows switching without energising the coil.
Designed for use with compressed air and inert gases, suitable for workshop ambient conditions.
Electrical coil rated at 24V DC with low power consumption of 3 W.
Soft sealing NBR seals reduce leakage and wear, enhancing durability.
Non-reversible flow direction ensures predictable system behaviour.
Suitable for pneumatic tool actuation, single-acting actuators, and valve island pilot control.

Product Description

The Festo HEE-D-MIDI-24 Pneumatic Manual Control Valve, part of the HEE Series, is engineered for robust and precise control of compressed air in various industrial systems. It features a 3/2 closed monostable valve function with mechanical spring reset, suitable for line mounting in automation and mechanical installations.

With a G 1/4 port size and a maximum operating pressure rating of 16 bar, this valve supports critical industrial operations including pneumatic tool actuation, control of single-acting cylinders, and pilot duties within valve islands and control cabinets.

Constructed with a die cast aluminium body, the valve offers corrosion resistance rated CRC 2 for moderately corrosive environments, complemented by soft NBR seals that ensure reduced leakage and mechanical wear. Its operational temperature range of -10°C to +60°C enables consistent performance across typical workshop ambient temperatures.

The valve includes a detenting manual override that permits manual switching without electrical activation, improving operational flexibility. The electrical coil is rated at 24V DC consuming only 3 W, ensuring low power usage and efficient control. It accepts a standard DIN EN 175301-803 type C industrial plug for easy electrical connection.

The device is suitable for compressed air and inert gases, and lubrication is permissible once initiated to maintain performance stability. The valve supports continuous duty cycle 100% operation for uninterrupted industrial use.

Its non-reversible flow direction enhances system predictability and control reliability. It complies with ISO 8573-1:2010 air quality standards to maintain system integrity and purity.

This Pneumatic Manual Control Valve is ideal in industrial, manufacturing, mechanical, and automation environments requiring dependable air control valves. Its design and materials support long-term usage and integration into pneumatic tool actuation and control assemblies.
