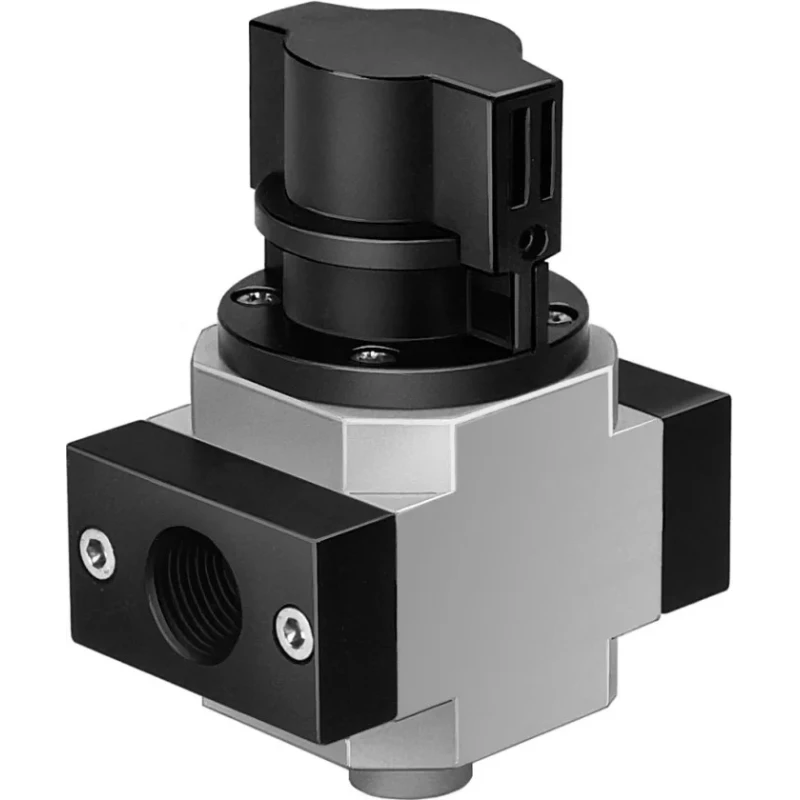

Festo Pneumatic Manual Control Valve HE Series, 3/2 Bistable, G 1/4 Port, 16 Bar Max Pressure, Die Cast HE-1/4-D-MINI

Festo HE-1/4-D-MINI Pneumatic Manual Control Valve from the HE series is engineered for precise and reliable control of compressed air systems used in various industrial environments. Featuring a manual control mechanism with a 3/2 bistable valve function, it supports a maximum operating pressure of 16 bar and a maximum flow rate of 1500 L/min to ensure efficient system responsiveness.

The valve body is made from die cast aluminium, delivering robustness while maintaining moderate corrosion resistance suitable for industrial and manufacturing settings. It maintains performance stability over a temperature range of -10°C to 60°C, allowing operation in diverse ambient conditions.

This valve is equipped with a G 1/4 pneumatic port size and a G connection thread standard, enabling compatibility with standard pneumatic fittings. Its compact size, measuring 100 mm in length and 64 mm in width, allows flexible integration into machinery and automated pneumatic systems.

Soft sealing technology ensures leak-free operation and contributes to system integrity. The valve design supports lubricated media, which enhances longevity by reducing internal wear and friction, making it suitable for demanding, continuous-use industrial applications.

As a two-position and three-port valve with non-reversible flow direction, it simplifies system design and prevents backpressure issues, enhancing overall reliability. The product conforms to ISO8573-1:2010 (7:4:4) standards and RoHS directives, verifying compliance with quality and environmental regulatory requirements.

Manufactured in Hungary, this Festo manual pneumatic control valve meets stringent industrial standards. It is ideal for use in manufacturing lines, automated machinery, and other pneumatic control system applications requiring high flow rates and dependable manual operation.

Robust die cast aluminium body ensures durability and corrosion resistance. Operates efficiently within a temperature range of -10°C to 60°C. Supports a maximum operating pressure of 16 bar for high-performance applications.

Maximum flow rate of 1500 L/min enables rapid and responsive pneumatic control. Manual actuation allows straightforward operator control and system integration. Soft sealing principle guarantees leak-free operation for reliability.

Designed for lubricated operation to extend valve longevity and reduce wear. Compact dimensions of 100 mm length and 64 mm width for flexible installation. Two-position valve with three ports for versatile pneumatic circuit configurations.

Complies with ISO8573-1:2010 (7:4:4) and RoHS standards for quality assurance. Explore EnvMart’s extensive range of pneumatic valves for industrial, manufacturing, and automation applications.
