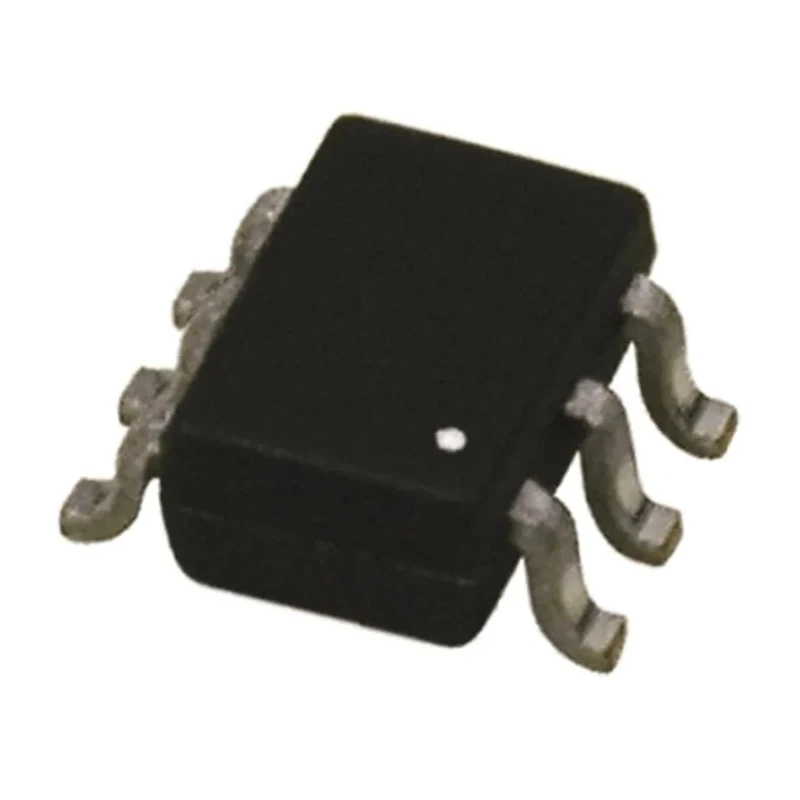

DiodesZetex Schmitt Trigger Input Inverter 2 Elements, 6-Pin SOT-363 74LVC2G14DW-7

DiodesZetex 74LVC2G14DW-7 is a 2-element inverter IC with Schmitt trigger inputs designed for use in low-voltage CMOS logic circuits. It operates from a supply voltage range of 1.65 to 5.5 volts, making it suitable for modern low-voltage digital applications requiring fast switching with minimal propagation delay of 4.7 nanoseconds at capacitive load. The device incorporates push-pull type outputs that can source and sink currents up to 32 mA, enhancing output drive capabilities.

Encapsulated in a compact 6-pin SOT-363 surface-mount package with dimensions approximately 2.2 mm length, 1.35 mm width, and 1 mm height, this semiconductor component optimizes PCB space utilization in industrial, electronics manufacturing, and computing applications.

This logic inverter IC supports Schmitt trigger input, allowing it to convert slowly changing input signals into sharply defined output transitions, essential for noise immunity and signal shaping in digital circuits. The logic family is LVC with input compatibility for LVTTL and TTL logic levels and output that conforms to LVCMOS standards.

The device reliably operates across a wide temperature range from -40°C to +125°C, suitable for harsh environments in industrial, automotive, and communications equipment. The 74LVC2G14 series is a well-known component used in various electronic designs requiring accurate inverter logic functions.

Operates over 1.65 V to 5.5 V supply voltage. Schmitt trigger input enhances noise immunity and signal integrity. Push-pull output stage supports ±32 mA drive current. Compact 6-pin SOT-363 package for surface mount assembly.

Max operating temperature 125°C for industrial robustness. Fast propagation delay time of 4.7 ns for high-speed logic switching. Compatible with input LVTTL/TTL and output LVCMOS logic levels. Low-voltage CMOS logic suitable for power-efficient designs.

Manufactured in China with strict quality controls. Ideal for electronics manufacturing, industrial automation, and computing signal processing.

This DiodesZetex inverter IC is widely used in industrial, telecommunications, computing, and consumer electronics where logic signal conditioning and switching are required. It allows designers to implement efficient inverter stages with precise thresholds and fast response times.
