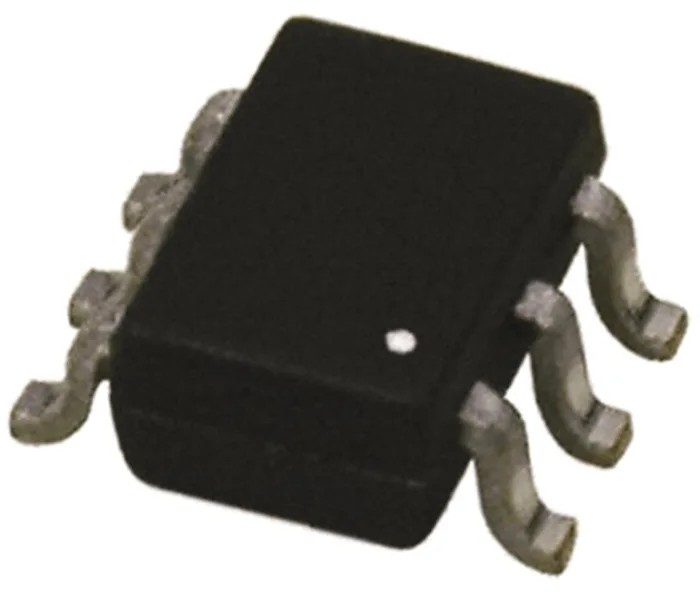

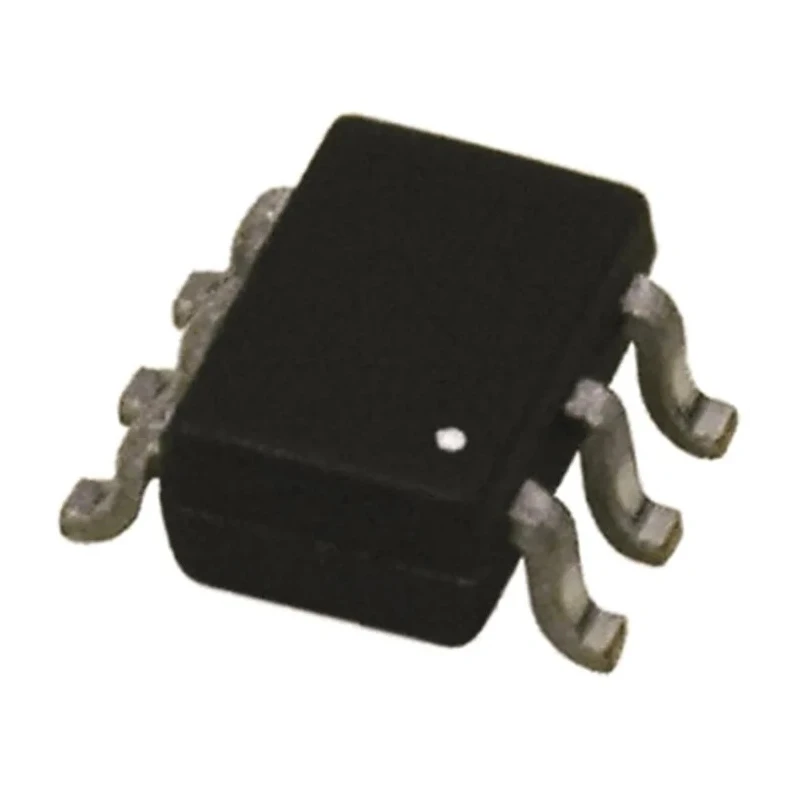

DiodesZetex Schmitt Trigger Input Inverter Logic IC 2 Elements 6-Pin SOT-363 74LVC2G14DW-7

DiodesZetex 74LVC2G14DW-7 is a low-voltage CMOS logic inverter IC with Schmitt Trigger inputs, designed for reliable and high-speed signal inversion in electronic circuits. Packaged in a small 6-pin SOT-363 surface mount package, this device integrates two inverter elements on a single chip.

Operating within a voltage range of 1.65 V to 5.5 V, it is ideal for various digital applications requiring stable signal conditioning and noise immunity. The Schmitt Trigger input ensures enhanced input signal integrity by providing hysteresis for noisy or slow input signals.

Its maximum propagation delay of 4.7 ns enables fast switching speeds suitable for timing-critical systems. The device supports input levels compatible with LVTTL and TTL logic standards and outputs LVCMOS levels, facilitating seamless interfacing with other modern digital ICs.

Designed to withstand a broad operating temperature range from -40°C to 125°C, it ensures performance stability even in harsh industrial environments. The maximum output current of ±32 mA allows it to drive moderate load circuits efficiently.

The 74LVC2G14DW-7 is part of the 74LVC2G14 series by Diodes Inc., renowned for low power consumption and high integration density. It is well-suited for industrial, laboratory, consumer electronics, and embedded system applications where compact size and reliable logic inversion are essential.

This inverter IC features two Schmitt Trigger input elements for stable signal processing. It operates over a wide voltage range from 1.65 V to 5.5 V, suitable for low-voltage digital circuits. The surface-mount SOT-363 package offers a compact footprint for dense PCB layouts.

Maximum propagation delay time is 4.7 ns, enabling high-speed switching. It supports input compatibility with LVTTL and TTL logic levels and outputs in LVCMOS format. The device withstands operating temperatures from -40°C to 125°C ensuring reliability in various environments.

Maximum output current capability is ±32 mA for driving loads effectively. This two-element inverter belongs to the 74LVC2G14 series from Diodes Inc, featuring low power consumption. Explore more semiconductor and logic IC components from DiodesZetex and other top brands on EnvMart to support your industrial and electronics design needs.
