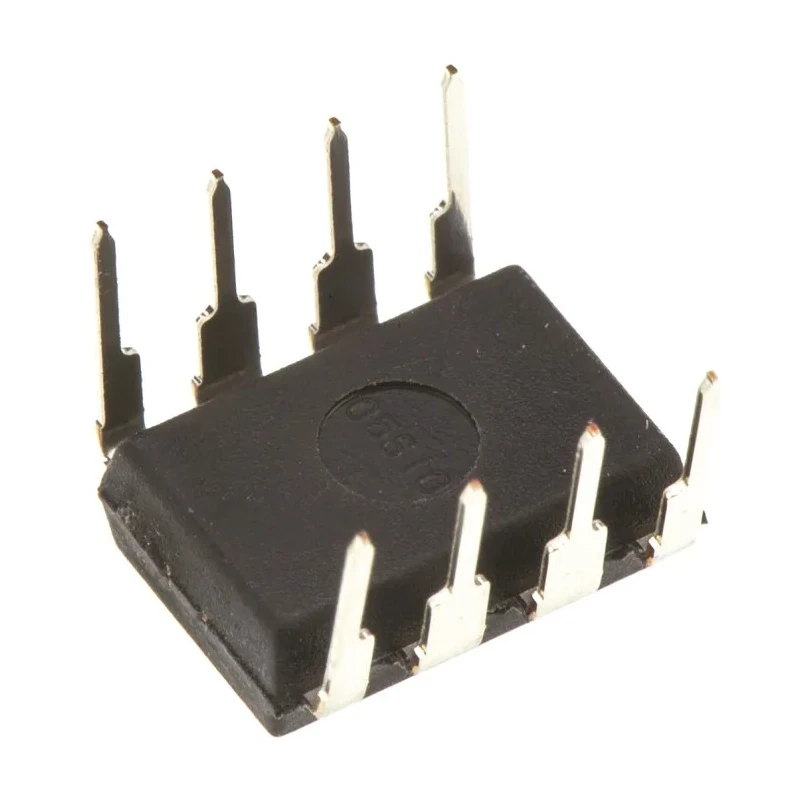

Texas Instruments Precision Operational Amplifier 600 kHz Gain Bandwidth, 8-Pin PDIP, Through Hole Mount OP07CP
Specifications
| Country of Origin | India |
|---|---|
| Brand | Texas Instruments |
| Height | 4.57mm |
| Length | 9.81mm |
| Model | OP07CP |
| Width | 6.35mm |
| Mount Type | Through Hole |
| Series | OP07 |
| Maximum Operating Temperature | 70°C |
| Package Type | PDIP |
| Minimum Operating Temperature | 0°C |
| Number Of Channels | 1 |
| Pin Count | 8 |
| Maximum Supply Voltage | 22V |
| Minimum Supply Voltage | -22V |
| GBP - Gain Bandwidth Product | 600kHz |
| Input Bias Current | ±2.2 nA |
| Slew Rate | 0.3V/μs |
| Input Offset Current | 1.6 nA |
Key Features
- Offers low input offset voltage of 85 μV for precise operation.
- Supports supply voltage ranging from -22 V to 22 V for versatile applications.
- Designed with a maximum operating temperature of 70°C ensuring reliable performance.
- Compact 8-pin PDIP package with through hole mount simplifies PCB assembly.
- Includes low input bias current of ±2.2 nA suitable for high resistance circuits.
- Slew rate of 0.3 V/μs enables stable signal transitions.
- Ideal for demanding industrial, laboratory, and electronic applications requiring precision amplification.
Product Description
Texas Instruments OP07CP is a precision operational amplifier featuring a 600 kHz gain bandwidth product and housed in an 8-pin PDIP package with through-hole mount. It delivers low input offset voltage and minimal drift over temperature, ensuring reliable and predictable amplifier performance in a range of demanding applications.
This amplifier operates with supply voltages up to ±22 V and is rated for ambient temperatures up to 70°C, making it suitable for industrial, laboratory, and electronic component environments that require accuracy and durability.
The device exhibits an exceptionally low input bias current (±2.2 nA) and input offset current (1.6 nA), making it suitable for circuits with very high impedance and precision requirements. Its moderate slew rate of 0.3 V/μs supports smooth signal changes without distortion.
The OP07CP housed in a neat PDIP package measures 9.81 mm in length, 6.35 mm in width, and 4.57 mm in height, delivering space-efficient PCB integration while maintaining ease of soldering and mounting due to its through hole design.
Low input offset voltage of 85 μV enhances signal accuracy. Wide supply voltage range from -22 V to 22 V supports flexible circuit design. Stable performance over operating temperature up to 70°C. Low input bias and offset currents ensure suitability for high-impedance applications.
8-pin PDIP package for reliable through hole mounting. Suitable for industrial automation, instrumentation, and laboratory electronics. Compact dimensions facilitate integration into varied PCB layouts.
This high-precision Operational Amplifier from Texas Instruments is ideal for applications including sensor signal conditioning, medical instrumentation, industrial process control, and audio equipment. Its characteristics ensure minimum signal distortion and excellent DC stability for precise analog signal processing tasks.
Explore more in the Texas Instruments amplifier range and other semiconductor components within the Electronics & Electricals category at EnvMart.
Looking to purchase in bulk?
- Purchase item in bulk quantity
- Get best price for your business
Frequently Asked Questions
The OP07CP has a gain bandwidth product of 600 kHz, making it suitable for a variety of precision amplification applications.
It supports a supply voltage range from -22 V to 22 V, allowing for versatile circuit designs.
The maximum operating temperature for the OP07CP is 70°C, ensuring reliable performance in various environments.
This model measures 9.81 mm in length, 6.35 mm in width, and 4.57 mm in height, facilitating compact PCB integration.
The OP07CP features a low input offset voltage of 85 μV, which enhances signal accuracy in precision applications.
It has a moderate slew rate of 0.3 V/μs, which supports stable signal transitions without distortion.
The input bias current is ±2.2 nA, making it suitable for high resistance circuits.
This operational amplifier has a single channel configuration.
It is designed for through hole mounting, which simplifies PCB assembly.
The input offset current is 1.6 nA, contributing to its precision capabilities in high-impedance applications.
It is commonly used in sensor signal conditioning, medical instrumentation, industrial process control, and audio equipment.
The OP07CP is housed in an 8-pin PDIP package, which is suitable for through hole mounting.
