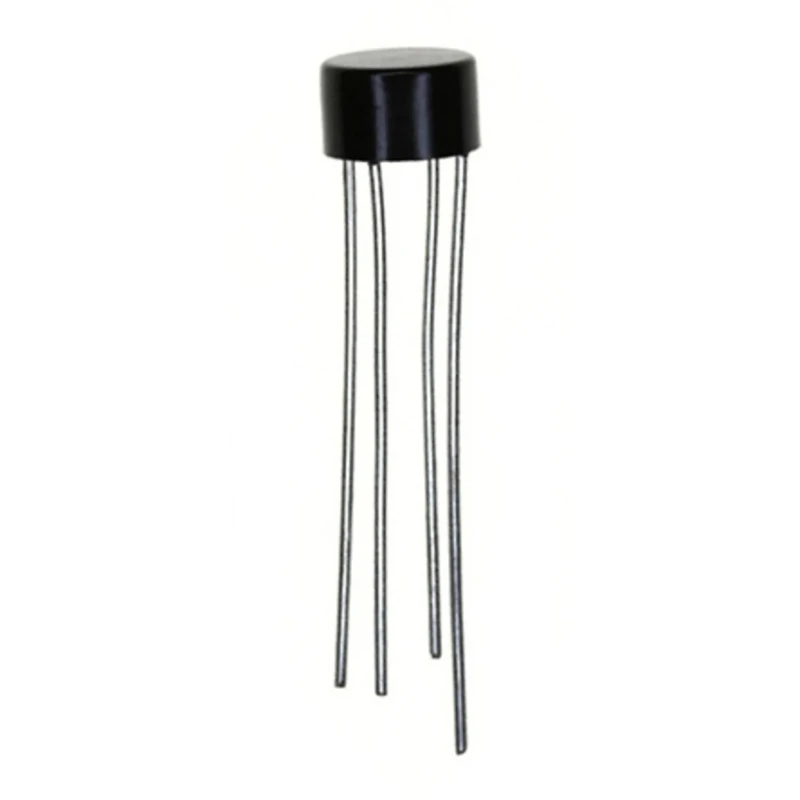

HY Electronic Corp Bridge Rectifier, 1000 V 40 A, 4-Pin Single W10MG
Specifications
| Country of Origin | China |
|---|---|
| Diameter | 9.8mm |
| Brand | HY Electronic Corp |
| Height | 4.6mm |
| Model | W10MG |
| Mount Type | Through Hole |
| Series | WOXMG |
| Configuration | Single |
| Maximum Operating Temperature | 150°C |
| Package Type | WOBM |
| Minimum Operating Temperature | -55°C |
| Number of Phases | 1 |
| Pin Count | 4 |
| Peak Reverse Repetitive Voltage Vrrm | 1000V |
| Peak Reverse Current Ir | 1mA |
| Peak Non-Repetitive Forward Surge Current Ifsm | 40A |
| Forward Current If | 1.5A |
| Peak Forward Voltage Vf | 1.1V |
| WO/WOM Series | Silicon Passivated Bridge Rectifiers |
| WOxG/WOxMG Series | Glass passivated Bridge Rectifiers |
| Surge overload rating | -40 A peak |
Key Features
- Rated for 1000 V peak reverse repetitive voltage ensuring robust performance.
- Handles forward current and forward surge current up to 1.5 A and 40 A respectively.
- Features a 4-pin through-hole mount type suitable for easy PCB integration.
- Operates across a wide temperature range from -55°C to 150°C.
- Includes glass passivated construction for enhanced surge overload protection.
- Compact dimensions with 9.8 mm diameter and 4.6 mm height ensure space efficiency.
- Peak forward voltage of 1.1 V enables efficient rectification process.
- Minimal peak reverse current of 1 mA ensures low leakage and energy loss.
Product Description
HY Electronic Corp W10MG Bridge Rectifier is a high-performance semiconductor component designed to convert AC voltage into DC voltage in various electronic circuits and PCB assemblies. It possesses a peak reverse repetitive voltage rating of 1000 V and can sustain a forward current up to 1.5 A, making it suitable for moderate power applications in industrial, laboratory, and commercial electronics.
This device features a 4-pin single configuration with a through-hole mount type for secure and stable board mounting. The glass passivated construction of the WOxMG series ensures excellent surge overload rating up to 40 A peak, providing long-lasting reliability even under transient conditions.
Operating temperature range from -55°C to 150°C allows this bridge rectifier to perform well in harsh environments including HVAC systems, manufacturing controls, and instrumental electronics. The package dimensions, with a diameter of 9.8 mm and height of 4.6 mm, support compact PCB designs without compromising electrical performance.
Other electrical parameters such as a peak forward voltage of 1.1 V and minimal peak reverse current of 1 mA further enhance the device efficiency. Although it does not conform to specific automotive standards, it meets the demands for general industrial electronic applications requiring stable and reliable rectification.
Rated 1000 V peak reverse voltage for strong voltage blocking capability. Forward current rating of 1.5 A supports moderate load requirements. Surge current tolerance of 40 A peak for transient overload protection. Wide operating temperature range suitable for diverse environments.
Glass passivated bridge rectifier offers durable performance and resistance. Compact 4-pin through hole mounting facilitates easy PCB integration. Low forward voltage drop and reverse current minimize energy loss. Perfect for industrial, laboratory, and commercial power conversion needs.
This W10MG bridge rectifier from HY Electronic Corp is ideal for engineers and technicians designing or repairing power supply circuits, electronic converters, and switching devices. It is supplied typical in packs of 50, enabling efficient procurement for assembly and production volume requirements.
Explore our full selection of semiconductor Bridge Rectifiers and other electronic components at EnvMart for your industrial electronics solutions.
