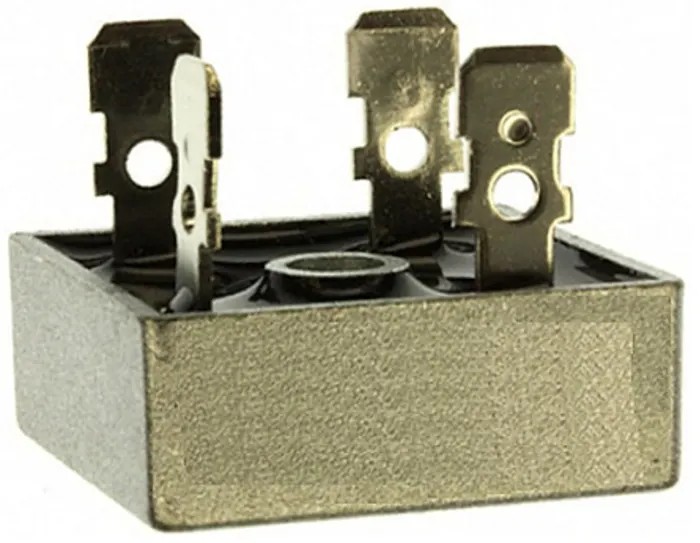

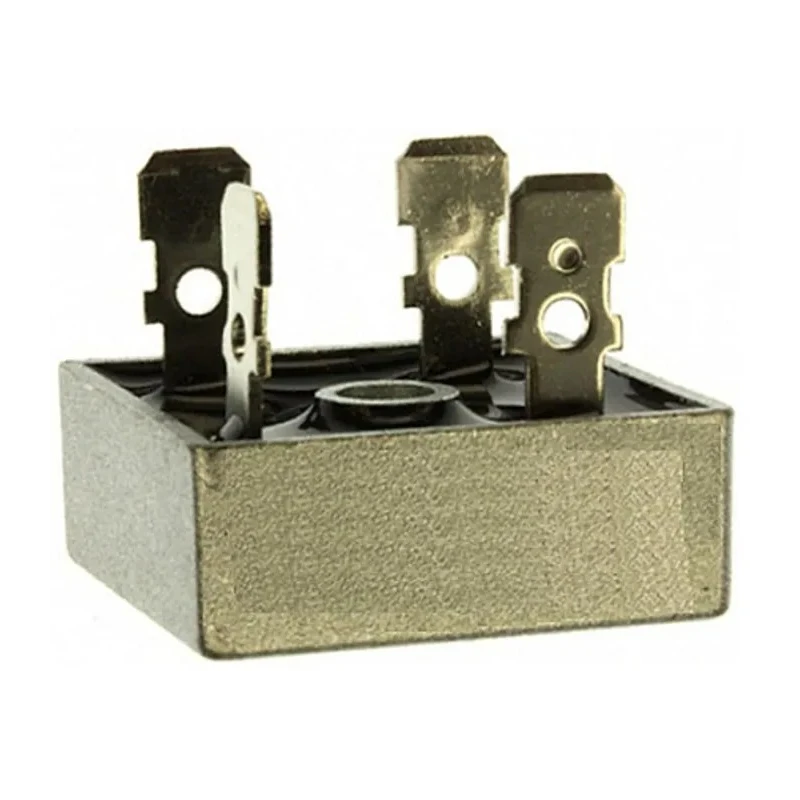

HY Electronic Corp Bridge Rectifier 600 V 300 A 4-Pin Single KBPC1506

HY Electronic Corp KBPC1506 Bridge Rectifier 4-Pin Single is designed for industrial and electronic applications requiring efficient AC to DC conversion. It features a maximum peak repetitive voltage (Vrrm) of 600 V and supports a forward current (If) of 15 A, suitable for moderate power needs in printed circuit board assemblies and power supply units.

This Bridge Rectifier incorporates a through-hole mounting style with 4 pins, optimizing it for ease of integration into various devices. Its compact dimensions measure 28.8 mm in length, 28.8 mm in width, and 11.23 mm in height, making it suitable for space-constrained applications.

Operating temperature ranges from -55°C to 150°C provide robustness in harsh environments, while the surge overload capabilities ranging from 240 A to 500 A peaks ensure reliability under transient conditions.

The rectifier employs low forward voltage drop technology (1.1 V) to enhance efficiency and minimize heat dissipation. A peak reverse current of only 10 μA minimizes leakage currents, improving overall device performance. Made with U/L recognized materials, the KBPC1506 ensures compliance with quality and safety standards.

Solder 0.25 FAST ON terminals facilitate expedited wiring and assembly processes, making it valuable in manufacturing settings. Features a through hole mount for easy PCB integration. Operates within a temperature range of -55°C to 150°C.

Handles surge currents up to 300 A peak non-repetitively. Compact form factor suitable for various electronic assemblies. Constructed from U/L recognized materials ensuring durability and compliance.

Application domains include industrial electronics, power management units, HVAC controls, manufacturing machinery, and general electrical and electronic equipment requiring bridge rectification.
