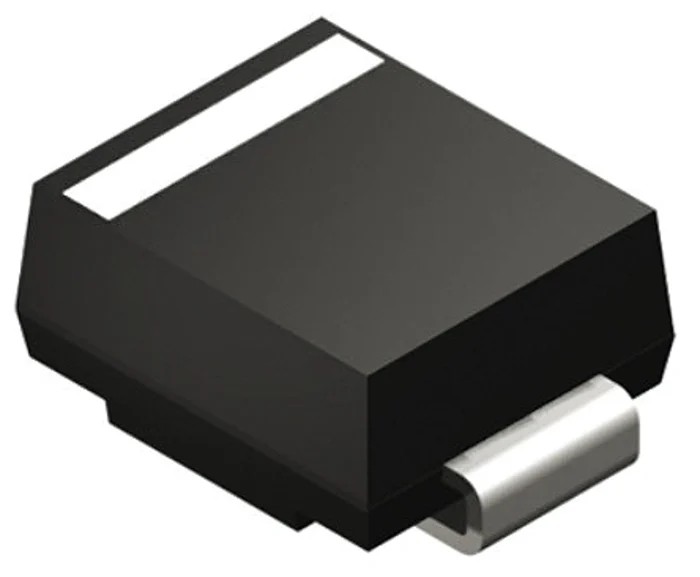

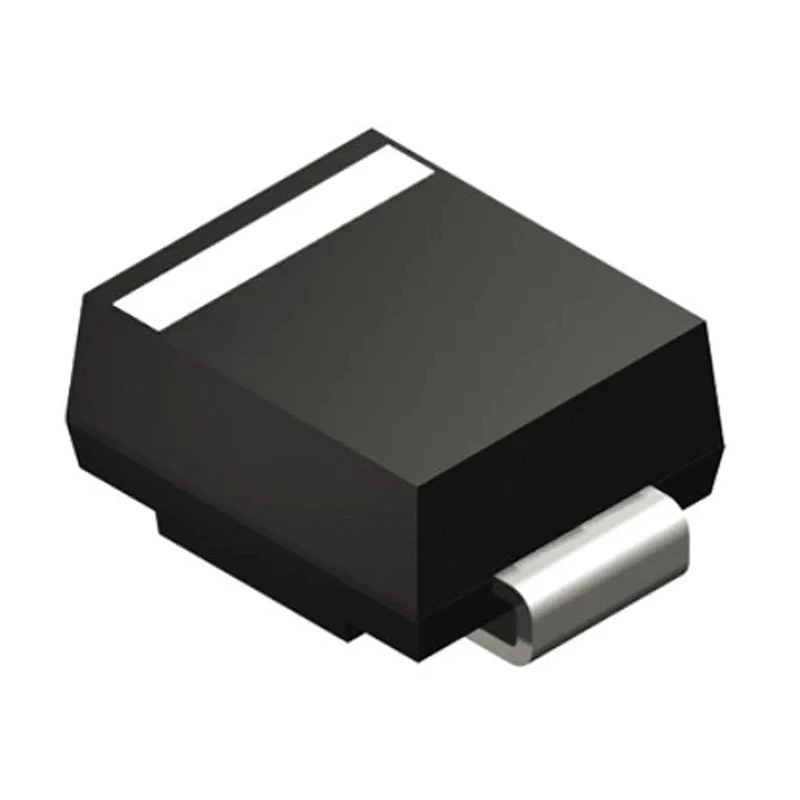

HY Electronic Corp Schottky Barrier Rectifier Diode 60 V 3 A Surface Mount DO-214AA SS36B
Specifications
| Country of Origin | China |
|---|---|
| Brand | HY Electronic Corp |
| Height | 2.23mm |
| Length | 4.7mm |
| Model | SS36B |
| Width | 3.94mm |
| Mount Type | Surface |
| Series | FBI |
| Maximum Operating Temperature | 150°C |
| Package Type | DO-214AA |
| Minimum Operating Temperature | -55°C |
| Polarity | indicated by cathode band |
| Pin Count | 2 |
| Maximum Continuous Forward Current If | 3A |
| Peak Reverse Repetitive Voltage Vrrm | 60V |
| Diode Configuration | Single |
| Rectifier Type | Schottky |
| Peak Reverse Current Ir | 20mA |
| Peak Non-Repetitive Forward Surge Current Ifsm | 80A |
| Maximum Forward Voltage Vf | 700mV |
| Moulded Plastic Case (Plastic | flammability classification UL 94V-0) |
Key Features
- Schottky barrier diode offers low forward voltage drop for efficient rectification.
- Surface mount package type DO-214AA suitable for automated PCB assembly.
- Maximum continuous forward current If of 3 A and peak surge current Ifsm of 80 A.
- Operating temperature range from -55°C to 150°C enable robust usage in harsh environments.
- Polarity indicated by cathode band for correct installation.
- Peak reverse repetitive voltage Vrrm rated at 60 V ensures reliable operation.
- Package material meets flammability classification UL 94V-0 for safety compliance.
- Applications include free-wheeling, inverters, and polarity protection circuits.
Product Description
HY Electronic Corp SS36B is a high-reliability Schottky Barrier Rectifier Diode designed for surface mount applications. The diode features a maximum continuous forward current of 3 A and a peak reverse repetitive voltage of 60 V, making it ideal for efficient power rectification and circuit protection.
This diode is housed in a DO-214AA moulded plastic case with UL 94V-0 flammability rating, ensuring excellent safety and durability. The component has compact dimensions suitable for automated PCB assembly: length 4.7 mm, width 3.94 mm, and height 2.23 mm. The polarity is clearly indicated by a cathode band for correct orientation during installation.
Operating reliably across a wide temperature range from -55°C to 150°C, the SS36B diode supports demanding industrial applications including free-wheeling diodes, inverter circuits, and polarity protection. Its low forward voltage drop characteristic enhances efficiency in power conversion and switching circuits.
The device supports a peak non-repetitive forward surge current of 80 A, allowing transient current surges without damage. The diode configuration is single, with two pins suitable for surface mount technology.
Low forward voltage drop Schottky Diode for power efficiency. Compact surface mount DO-214AA package with UL 94V-0 plastic case. Wide operating temperature from -55°C to 150°C. Peak reverse voltage of 60 V and forward current of 3 A.
Suitable for industrial, electronic component, and power electronics applications. Polarity indicated by a cathode band for accurate placement. Robust construction enables use in inverters, freewheeling, and protection circuits.
This product is made in China and supplied new by HY Electronic Corp. It is an essential component for electronic assemblies requiring efficient Schottky barrier rectification and reliable surface mount integration.
Explore more electronic components in the semiconductor and discrete semiconductor categories on EnvMart for precise design requirements.
Looking to purchase in bulk?
- Purchase item in bulk quantity
- Get best price for your business
Frequently Asked Questions
The maximum continuous forward current for this model is 3 A.
The peak reverse repetitive voltage (Vrrm) is rated at 60 V.
It operates reliably within a temperature range of -55°C to 150°C.
This diode is housed in a DO-214AA surface mount package type.
The cathode band indicates the polarity for correct installation of the diode.
The peak non-repetitive forward surge current (Ifsm) is rated at 80 A.
The dimensions are 4.7 mm in length, 3.94 mm in width, and 2.23 mm in height.
It is a Schottky barrier rectifier type diode.
The diode is housed in a moulded plastic case with a flammability classification of UL 94V-0.
It is suitable for applications such as free-wheeling diodes, inverters, and polarity protection circuits.
This diode has a pin count of 2.
The maximum forward voltage drop (Vf) is 700 mV.
