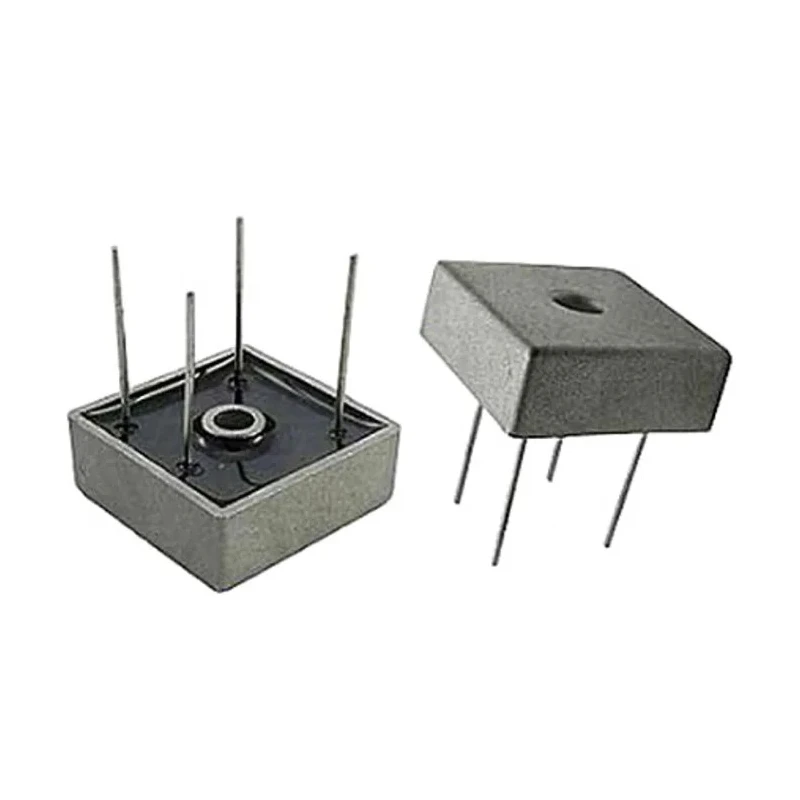

HY Electronic Corp Bridge Rectifier 1000 V 300 A 4-Pin Single KBPC1510W

Free Delivery in India | Lowest Global Shipping Charges

HY Electronic Corp Bridge Rectifier 1000 V 300 A 4-Pin Single KBPC1510W

Name: HY Electronic Corp Bridge Rectifier 1000 V 300 A 4-Pin Single KBPC1510W
Brand: HY Electronic Corp
SKU: 275023
Price: 4.21 USD
Availability: InStock



Category Bridge Rectifier Brand HY Electronic Corp Condition New

Specifications

Country of Origin	China
Brand	HY Electronic Corp
Material	U/L recognition
Height	11.23mm
Length	28.8mm
Model	KBPC1510W
Width	28.8mm
Mount Type	Through Hole
Series	KBPC1
Configuration	Single
Maximum Operating Temperature	150°C
Package Type	KBPC
Minimum Operating Temperature	-55°C
Number of Phases	1
Pin Count	4
Peak Reverse Repetitive Voltage Vrrm	1000V
Peak Reverse Current Ir	10μA
Peak Non-Repetitive Forward Surge Current Ifsm	300A
Forward Current If	15A
Peak Forward Voltage Vf	1.1V
Surge overload	-240 A to 500 A peaks

Key Features

Operates with a maximum forward current of 15 A under continuous use.
Features a through-hole mount with KBPC package type for reliable PCB integration.
Designed to handle a peak non-repetitive forward surge current of 300 A.
Operates effectively within temperature range of -55°C to 150°C.
Compact dimensions of 28.8 mm length, 28.8 mm width, and 11.23 mm height.
Low forward voltage drop of 1.1 V enhances energy efficiency.
Electrically isolated base capable of withstanding 2000 V isolation voltage.
Material recognized for U/L compliance ensuring safety standards.

Product Description

HY Electronic Corp KBPC1510W Bridge Rectifier 4-Pin Single is a robust semiconductor device used primarily for converting alternating current (AC) to direct current (DC) in electronic circuits and industrial applications. It supports a peak reverse repetitive voltage (Vrrm) of 1000 volts and can continuously conduct a forward current (If) of up to 15 amps, making it suitable for moderate power applications.

The rectifier package is a through-hole type with the KBPC package format, featuring four pins and a single-phase configuration, facilitating straightforward integration into printed circuit boards. Its peak non-repetitive forward surge current (Ifsm) rating of 300 amps allows it to handle high transient loads without damage.

Operating reliably between -55°C to 150°C, this bridge rectifier is designed for use in environments with varying thermal conditions. The low peak forward voltage drop of 1.1 volts contributes to enhanced efficiency by minimizing power loss during conduction.

Its compact footprint measures 28.8 mm in length and width, and 11.23 mm in height, suitable for space-sensitive designs. The device also boasts an electrically isolated base that withstands voltage isolation up to 2000 V, adding safety margins in circuit applications.

The material used in the KBPC1510W is recognized for U/L compliance, ensuring adherence to safety and quality standards. This makes the bridge rectifier particularly appropriate for industrial electronics, power supplies, control systems, and other applications that require reliable AC to DC conversion.

Operates with a forward continuous current of 15 A. Supports surge overloads between 240 A to 500 A peaks. Standard pin count of 4 for straightforward connectivity. Robustly designed to handle peak forward voltage of 1.1 V.

Material and assembly compliant with recognized standards.

This model is sourced from China and is provided new. For electronic components with emphasis on durability and safety, the KBPC1510W Bridge Rectifier by HY Electronic Corp is a reliable choice. Browse the Electronics & Electricals category on EnvMart for similar semiconductor components.
