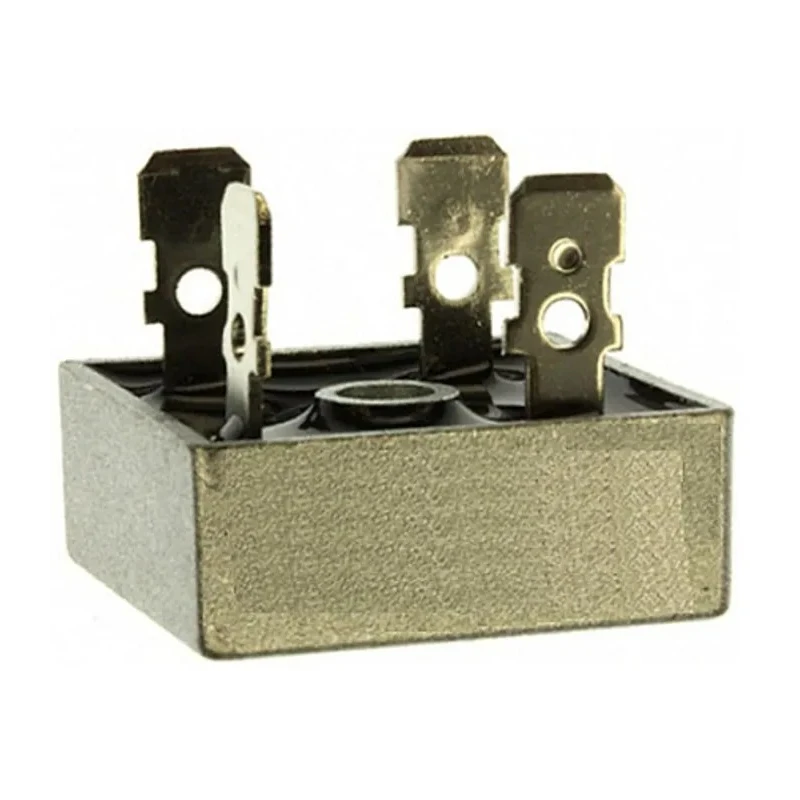

HY Electronic Corp Bridge Rectifier, 1000 V 400 A, 4-Pin Single GBPC3510

HY Electronic Corp GBPC3510 Bridge Rectifier is a high-performance semiconductor device designed for converting AC to DC power with a 4-pin single package configuration. This bridge rectifier supports a peak reverse repetitive voltage of 1000 V and a forward current rating of 35 A, making it suitable for demanding industrial electronics applications.

The device is screw mounted and provides an electrically isolated base withstanding up to 2000 V, ensuring enhanced safety during operation. Its glass passivated construction improves longevity and reliability by protecting the semiconductor junctions from environmental factors.

With operating temperature spanning from -55°C to 150°C, the GBPC3510 rectifier is designed to perform reliably in harsh thermal conditions. It features a low peak forward voltage of 1.1 V, improving power efficiency in circuits.

Typical applications include PCB circuitry, power supplies, and various AC to DC conversion tasks in industrial, manufacturing, and electronic laboratory environments. Its surge overload capacity ranges from -300 A to 450 A peaks, suitable for transient current demands.

Manufactured with U/L recognized materials, this component meets necessary industry standards while offering robust mechanical and electrical performance. The device is made in China and comes prepared for insertion into machinery to improve production and assembly efficiency.

Designed for 35 A forward current with a maximum operating temperature of 150°C. Screw mount type with dimensions 29 mm length, 29 mm width, and 11.23 mm height. Operates in temperature range from -55°C to 150°C ensuring reliability in harsh environments.

Features a low forward voltage drop of 1.1 V for efficient power conversion. Includes electrically isolated base with 2000 V isolation for safety and reliability. Constructed with glass passivated technology to enhance durability and performance.

Suitable for PCB circuitry and AC to DC conversion in industrial and electronic applications. Material certified with U/L recognition assuring quality standards. Peak non-repetitive forward surge current capability of 400 A for transient load handling.

Made in China, this component complies with fundamental semiconductor requirements. Explore our extensive range of Bridge Rectifiers and power conversion components at EnvMart to find the best solutions for your design and manufacturing needs.
