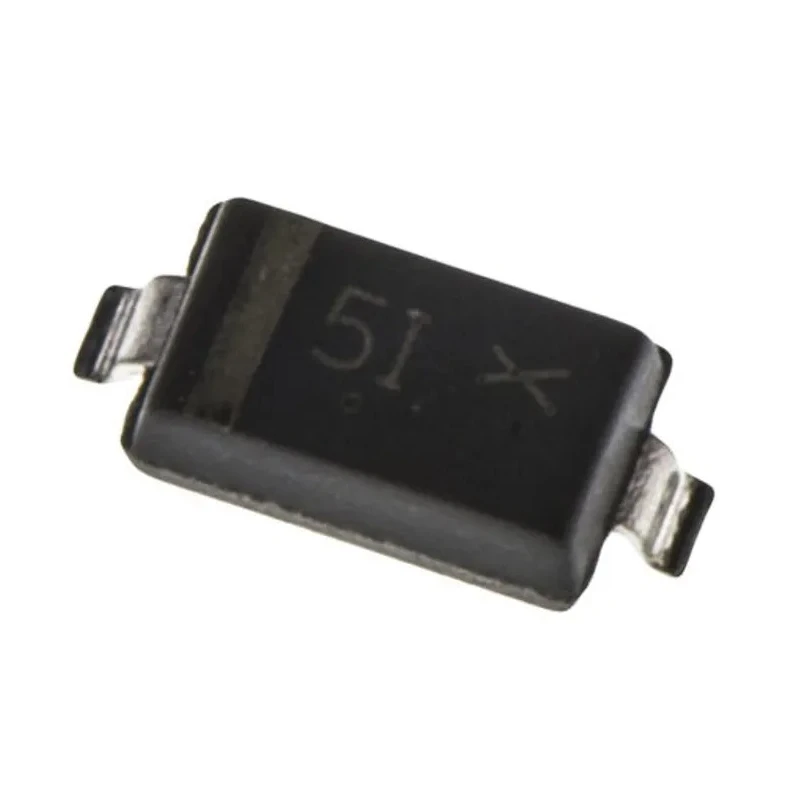

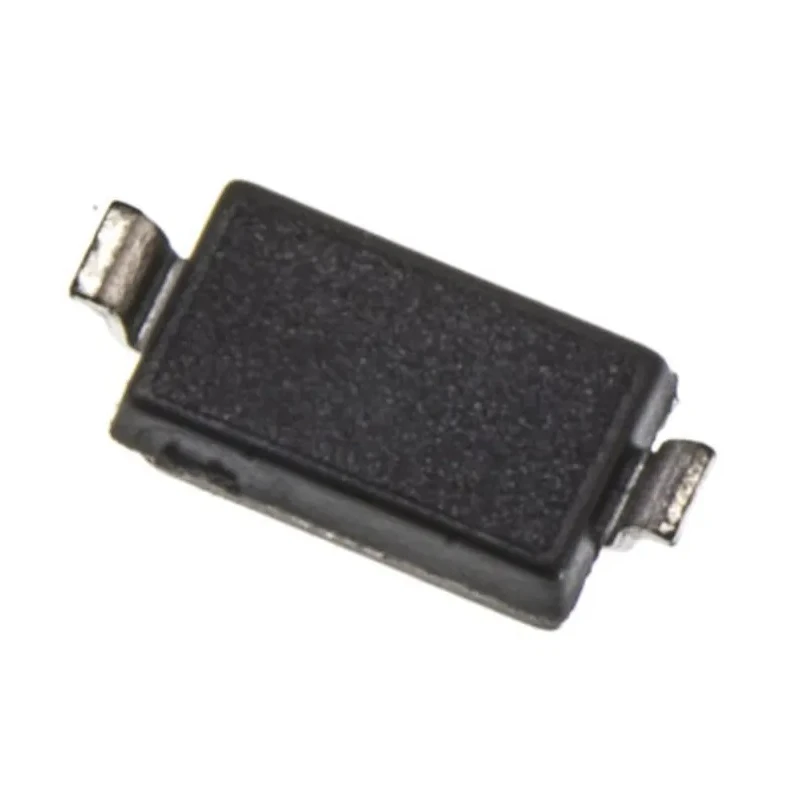

STMicroelectronics 40 V 1 A Schottky Barrier Diode Surface Mount SOD-123 STPS140Z

STMicroelectronics STPS140Z is a high-performance 40 V 1 A Schottky barrier diode designed for surface mount applications in the 2-pin SOD-123 package. This diode offers a low forward voltage drop of 0.49 V and a maximum continuous forward current of 1 A, making it suitable for efficient power management and rectification in electronic devices.

The diode features a peak reverse repetitive voltage of 40 V and can operate reliably over a wide temperature range from -65°C to 150°C, making it appropriate for demanding industrial and commercial environments. Its compact SOD-123 package with dimensions of 2.85 mm length, 1.7 mm width, and 1.35 mm height enables space-saving PCB mounting.

The device also supports a peak non-repetitive forward surge current of 5.5 A, enhancing its robustness under transient conditions. With no specific automotive standards certifications, this diode serves primarily in industrial, power supply, and electronic component applications requiring efficient rectification with minimal power loss.

High efficiency Schottky Diode reduces power dissipation. Surface mount design suitable for automated PCB assembly. Wide operating temperature range ensures reliability. Compact dimensions support high-density circuit layouts.

Robust surge current capacity enhances transient tolerance.

STMicroelectronics is a globally recognized brand in semiconductor solutions. The STPS140Z diode is ideal for engineers and designers working on power electronics, switching power supplies, and general purpose rectification tasks. Explore similar reliable semiconductor components within the STMicroelectronics range on EnvMart for all your electronic assembly needs.
