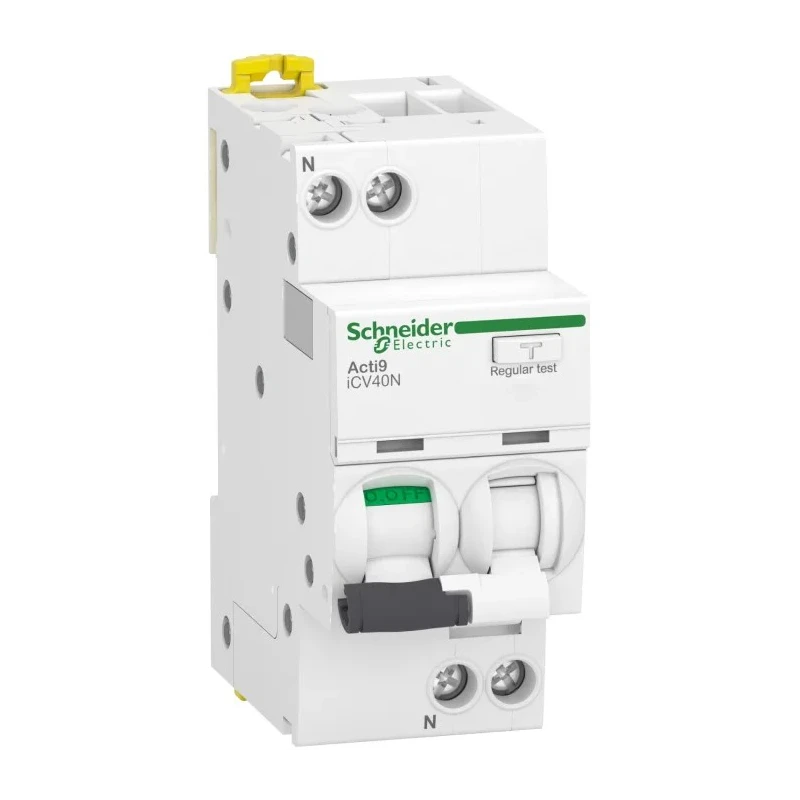

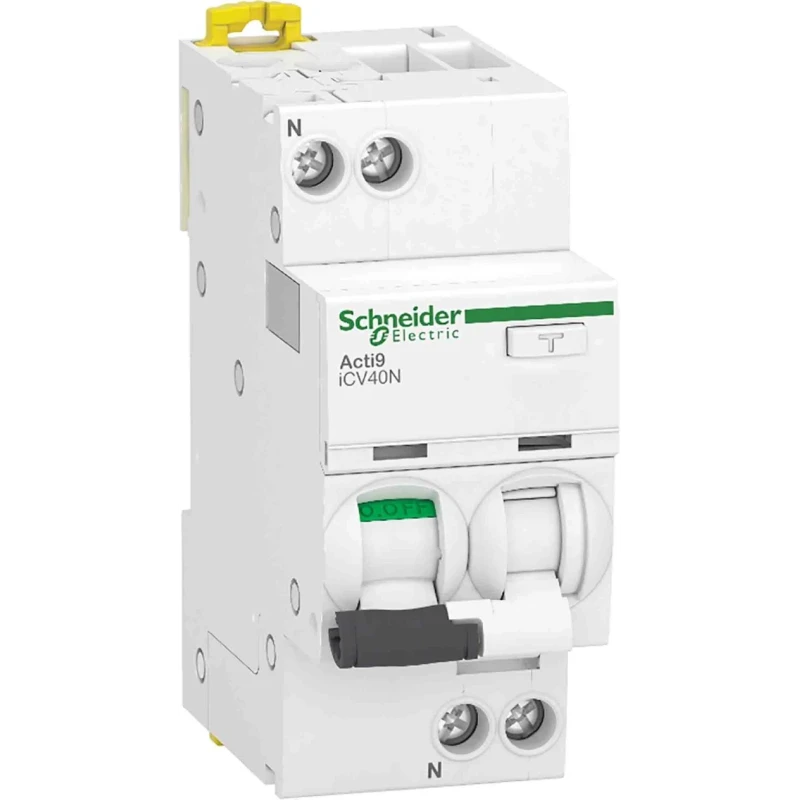

Schneider Electric Residual Current Circuit Breaker with Overload Protection 10A Current Rating 1-Pole 30mA Trip A9DF3610
Specifications
| Country of Origin | India |
|---|---|
| Range | Acti9 |
| Brand | Schneider Electric |
| Height | 85mm |
| Model | A9DF3610 |
| Depth | 73mm |
| Width | 36mm |
| Mount Type | DIN Rail |
| Current Rating | 10A |
| Series | A9 |
| Terminal type | Screw |
| Breaking Capacity | 6kA |
| Number of Poles | 1 |
| Standards/Approvals | RoHS, IEC |
| Rated AC Voltage | 230V ac |
| Tripping Mechanism | Thermal Magnetic |
| Trip Sensitivity | 30mA |
| Earth Leakage Protection Type | A-SI |
Key Features
- Equipped with thermal magnetic tripping mechanism for effective overload protection.
- Designed for DIN rail mounting with screw terminal type for secure connections.
- Compact dimensions of 85mm height, 73mm depth, and 36mm width suit tight electrical panels.
- Breaking capacity of 6kA ensures safety under fault conditions.
- Conforms to RoHS and IEC standards for quality and environmental compliance.
- A-SI earth leakage protection type with Acti9 series for accurate and sensitive protection.
- Rated insulation voltage of 400V AC enhances durability and performance.
- White color toggle for easy manual control and status indication.
Product Description
Schneider Electric A9DF3610 Residual Current Circuit Breaker with Overload Protection is designed for distribution electrical systems to provide enhanced safety through combined residual current and overload protection.
This 1-pole RCBO offers a current rating of 10A at 230V AC, incorporating a thermal magnetic tripping mechanism for reliable protection against overload and short circuits. With a trip sensitivity of 30mA, it effectively detects earth leakage currents providing safety from electric shocks and preventing fire hazards.
The product features a screw terminal connection ensuring firm mounting on DIN rails and maintaining consistent contact reliability within electrical panels. Measuring 85mm in height, 73mm in depth, and 36mm in width, this compact RCBO saves panel space while maintaining a breaking capacity of 6kA to withstand high fault currents.
The device complies with RoHS and IEC standards ensuring environmental safety and industrial reliability. The earth leakage protection type is A-SI, suitable for various household, commercial, and industrial applications.
Equipped with thermal magnetic tripping mechanism for overload protection. Mount Type: DIN Rail with screw terminals. Breaking capacity of 6kA for fault tolerance. Trip Sensitivity at 30mA for earth leakage detection. Compact dimensions (85x73x36 mm) optimize panel space usage.
Complies with RoHS and IEC standards. Rated insulation voltage: 400V AC. Color: White toggle for control.
This circuit breaker is suitable for electrical distribution systems in industrial, commercial, and residential settings to ensure protection from electrical faults and enhance overall system safety.
Explore more high-quality electrical protection devices in the Circuit Breakers category at EnvMart.
Looking to purchase in bulk?
- Purchase item in bulk quantity
- Get best price for your business
Frequently Asked Questions
The circuit breaker has a current rating of 10A at 230V AC.
It has a breaking capacity of 6kA, which allows it to withstand high fault currents.
This model utilizes a thermal magnetic tripping mechanism for effective overload protection.
The dimensions are 85mm in height, 73mm in depth, and 36mm in width.
It is designed for DIN rail mounting with a screw terminal type for secure connections.
The trip sensitivity is 30mA, which effectively detects earth leakage currents.
It conforms to RoHS and IEC standards, ensuring quality and environmental compliance.
This model features A-SI earth leakage protection for accurate and sensitive protection.
The rated insulation voltage is 400V AC, enhancing its durability and performance.
It is suitable for various household, commercial, and industrial applications to ensure protection from electrical faults.
This circuit breaker is part of the Acti9 series from Schneider Electric.
It features a screw terminal connection, ensuring firm mounting and consistent contact reliability.
