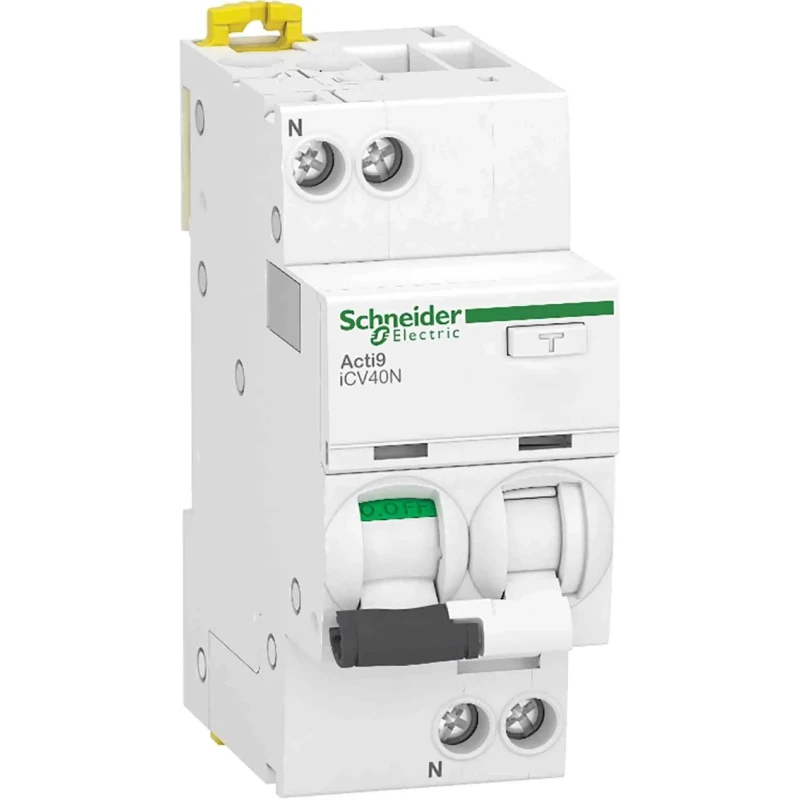

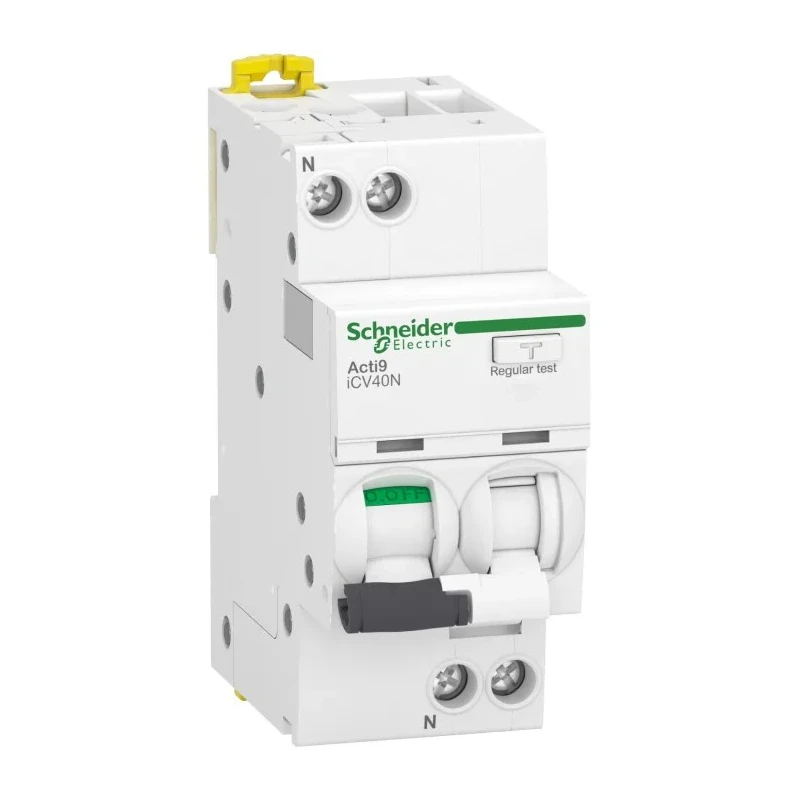

Schneider Electric Residual Current Circuit Breaker with Overload Protection 25A Current Rating 1-Pole 30 mA Trip A9DF3625

Schneider Electric A9DF3625 Residual Current Circuit Breaker with Overload Protection combines safety and reliability with its 25A current rating and 1-pole setup. Operating at 230V AC, it features a trip sensitivity of 30 mA to detect and interrupt earth leakage faults efficiently.

This device is designed for DIN Rail mounting, making it adaptable for electrical cabinets in industrial, commercial, and residential installations. The thermal magnetic tripping mechanism safeguards circuits against overload and short circuits by providing precise and responsive action.

With a breaking capacity of 6kA, the circuit breaker ensures that high fault currents can be interrupted safely, minimizing risk of fire or damage. The compact form factor with dimensions of 85mm height, 73mm depth, and 36mm width facilitates installation in tight spaces. Its screw terminal design allows for secure and stable wiring connections.

The earth leakage protection type A-SI class used in this breaker offers enhanced sensitivity and rapid fault detection, ideal for environments requiring heightened electrical safety. It weighs approximately 210 grams, balancing durability with ease of handling.

Certification and approvals for RoHS compliance and IEC standards confirm adherence to environmental and quality control requirements, further supporting its deployment in various applications including residential distribution boards and commercial electrical installations.

Designed for DIN Rail mounting for straightforward installation. Rated AC voltage of 230V ac suitable for standard electrical circuits. Thermal magnetic tripping mechanism for overload and short circuit protection. 6kA breaking capacity for interrupting high fault currents.

Compact dimensions of 85mm height, 73mm depth, and 36mm width. Screw terminal type ensures secure connections. Earth leakage protection type A-SI for sensitive fault detection. Compliant with RoHS and IEC standards guaranteeing quality and safety.

Lightweight design with approximately 210 g net weight. Ideal for electrical distribution applications in residential and commercial settings. Explore the full range of Schneider Electric circuit protection devices and accessories on EnvMart for enhanced electrical safety and reliability.
