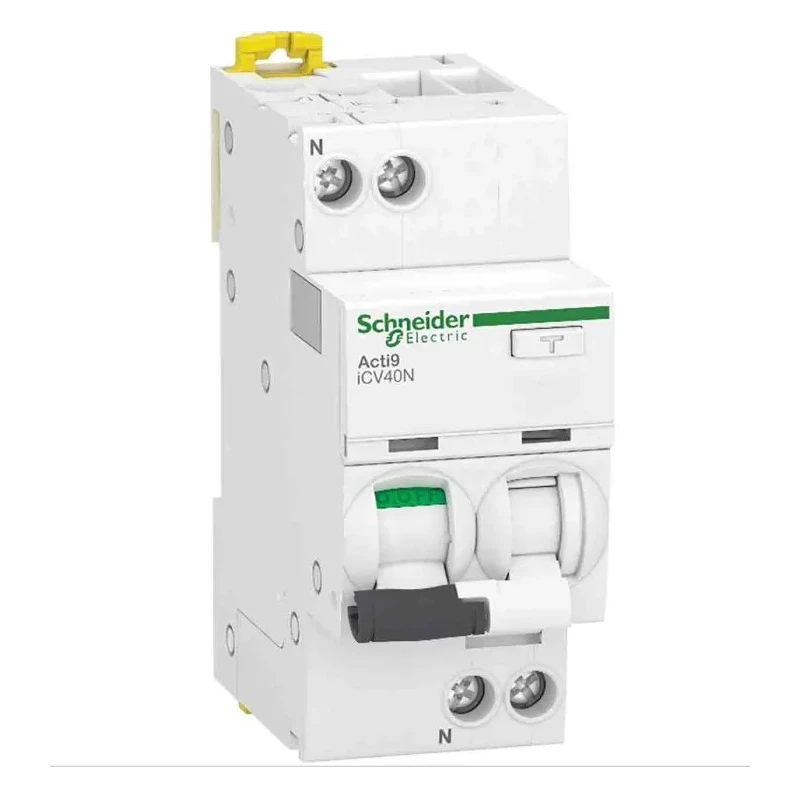

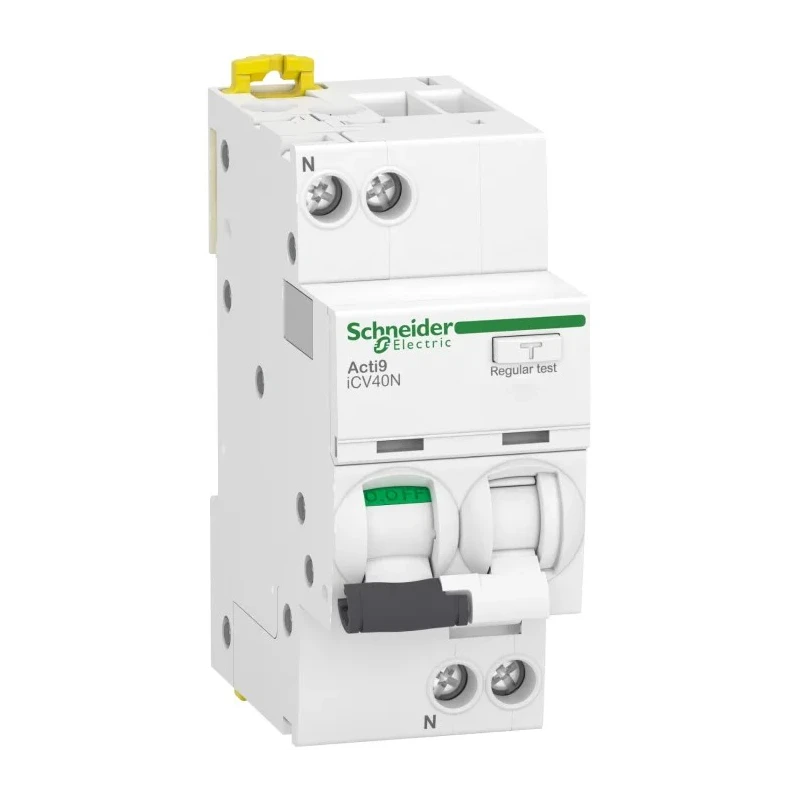

Schneider Electric Residual Current Circuit Breaker with Overload Protection 6A Current Rating 1-Pole 30 mA Trip A9DC3606

Schneider Electric A9DC3606 Residual Current Circuit Breaker with Overload Protection is designed to safeguard electrical installations by providing combined earth leakage and overcurrent protection. It features a 6A current rating and 30 mA trip sensitivity suitable for residential and commercial distribution networks operating at 240V AC.

This 1-pole breaker utilizes a thermal magnetic tripping mechanism allowing fast and reliable interruption under fault conditions. The device supports Type A earth leakage protection, suitable for AC and pulsating DC residual currents, enhancing protection against electric shock and fire risks.

The breaker is mountable on DIN rails ensuring easy integration into electrical distribution panels. It connects through screw terminals to guarantee secure wiring connections and mechanical stability. The compact form factor with dimensions 85mm (H) x 36mm (W) x 73mm (D) enables space-saving installations.

With a breaking capacity of 6kA, the circuit breaker can effectively interrupt high fault currents, protecting cables and downstream equipment. Its white toggle control lever simplifies manual switching and fault resetting for maintenance personnel.

This product complies with RoHS and IEC standards, assuring environmentally responsible manufacture and adherence to international safety and performance requirements. It is ideal for use in industrial, residential, commercial, and institutional electrical distribution systems where overcurrent and earth leakage protection are crucial.

Current rating of 6A ensures suitable protection for low-power circuits. Single-pole design provides compact and efficient installation. Type A earth leakage protection with 30 mA sensitivity for enhanced safety. Thermal magnetic tripping mechanism offers instantaneous protection against overloads and short circuits.

Rated for 240V AC networks with screw terminal connection for secure wiring. Mountable on DIN rail for standardized electrical panel integration. Breaking capacity of 6kA supports efficient fault clearance and system protection.

Compact size with dimensions 85mm height, 36mm width, and 73mm depth. White toggle control for easy manual operation and status indication. Compliance with RoHS and IEC standards ensuring quality and safety.
