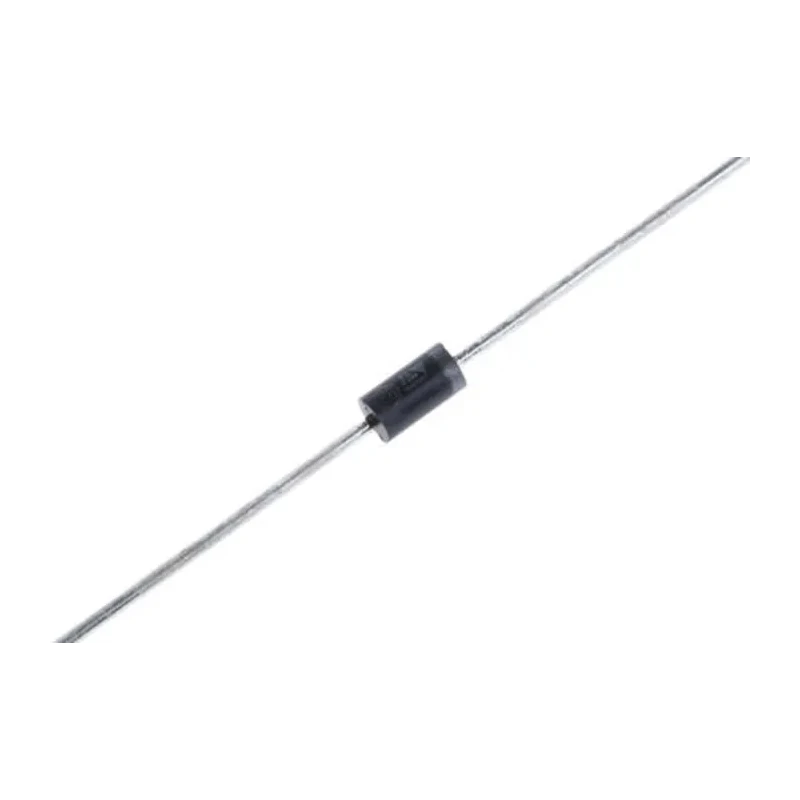

STMicroelectronics Schottky Diode 150 V 1 A Surface Mount DO-41 2-Pin STPS1150

Name: STMicroelectronics Schottky Diode 150 V 1 A Surface Mount DO-41 2-Pin STPS1150
Brand: STMicroelectronics
SKU: 274642
Price: 0.1 USD
Availability: InStock



Category Schottky Diode Brand STMicroelectronics Condition New

Specifications

Country of Origin	India
Diameter	2.71mm
Brand	STMicroelectronics
Height	2.45mm
Length	4.6mm
Model	STPS1150
Width	2.9mm
Mount Type	Surface Mount
Series	STPS1150
Maximum Operating Temperature	175°C
Package Type	DO-41
Minimum Operating Temperature	-65°C
Pin Count	2
Maximum Continuous Forward Current If	1A
Peak Reverse Repetitive Voltage Vrrm	150V
Diode Configuration	Single
Rectifier Type	Schottky
Peak Reverse Current Ir	1mA
Peak Non-Repetitive Forward Surge Current Ifsm	75A
Maximum Forward Voltage Vf	0.62V

Key Features

This diode supports a maximum continuous forward current of 1 ampere.
It features a peak reverse repetitive voltage rating of 150 volts.
Constructed in a DO-41 surface mount package for easy integration.
Offers a low maximum forward voltage of 0.62 volts for efficient rectification.
Operates at a wide temperature range from -65°C to 175°C.
Designed with a single diode configuration and 2-pin count for connectivity.
Supports high surge capability with a peak non-repetitive forward surge current of 75 amps.
Compact dimensions measuring 4.6 mm in length and 2.9 mm in width.

Product Description

STMicroelectronics STPS1150 Schottky Diode 150 V 1 A is a high-performance surface mount semiconductor device in a DO-41 package with 2 pins. It is engineered for power and efficiency-sensitive applications in electronics, industrial automation, and power conversion circuits.

This diode supports a maximum continuous forward current of 1 amp and a peak reverse repetitive voltage of 150 volts, ideal for protecting circuits from voltage spikes while enabling efficient power delivery.

With a maximum forward voltage drop of 0.62 V, it offers low power dissipation and heat generation. The device operates reliably between -65°C and 175°C, making it suitable for harsh industrial and commercial environments.

The compact form factor, with dimensions of 4.6 mm length, 2.9 mm width, 2.45 mm height, and 2.71 mm diameter, allows for easy PCB layout and space saving in high-density circuit boards.

Its rugged design supports high surge currents of up to 75 A non-repetitive forward surge current for transient conditions.

This Schottky Diode is widely used in power rectification, voltage clamping, reverse polarity protection, and switching power supplies within industrial, automotive (non-certified), and commercial electronics applications.

Maximum continuous forward current: 1 A. Peak reverse repetitive voltage: 150 V. DO-41 surface mount package. Maximum forward voltage: 0.62 V. Operating temperature range: -65° C to 175° C. Single diode configuration with 2 pins.

Peak non-repetitive forward surge current: 75 A. Compact dimensions for space-efficient PCB design.
