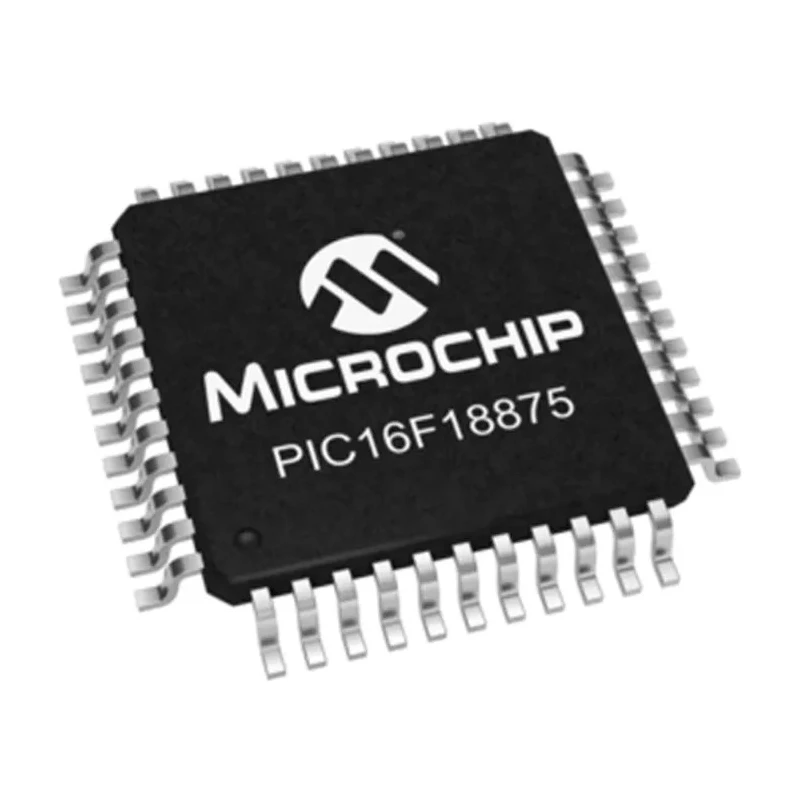

Microchip 8 bit PIC16F Microcontroller 32 MHz 14kB FLASH 44-Pin TQFP PIC16F18875-I/PT
Specifications
| Country of Origin | India |
|---|---|
| Brand | Microchip |
| Height | 150μm |
| Length | 10mm |
| Model | PIC16F18875-I/PT |
| Width | 10mm |
| Mount Type | Surface |
| Series | PIC16F |
| Maximum Operating Temperature | 85°C |
| Package Type | TQFP |
| Minimum Operating Temperature | -40°C |
| Ram size | 1.024kB |
| Operating Current | 8 μA @ 32 kHz 1.8V (typical) |
| Interface Type | I2C, SPI, EUSART |
| Standards/Approvals | RoHS |
| Pin Count | 44 |
| Maximum Supply Voltage | 5.5V |
| Maximum Power Dissipation Pd | 800mW |
| Minimum Supply Voltage | 1.8V |
| Device Core | PIC |
| Program Memory Size | 14kB |
| Maximum Clock Frequency | 32MHz |
| Number of Programmable I/Os | 36 |
| Analogue Comparators | 2 |
| Number of Timers | 7 |
| Instruction Set Architecture | RISC |
| ADCs | 35 x 10 Bit |
| Program Memory Type | FLASH |
| DACs | 1 x 5 Bit |
| Watchdog Timer | 500 nA @ 1.8V (typical) |
| Sleep Mode | 50 nA @ 1.8V (typical) |
| Secondary Oscillator | 500 nA @ 32 kHz |
Key Features
- Features a Maximum Clock Frequency of 32 MHz for efficient processing.
- Includes 14kB of FLASH program memory for application storage.
- Equipped with 1.024kB RAM and 36 programmable I/O pins.
- Supports multiple interfaces including I2C, SPI, and EUSART.
- Offers low power consumption with Sleep mode of 50 nA at 1.8V.
- Operates within a wide voltage range from 1.8V to 5.5V.
- Includes multiple peripheral features such as ADC with computation, DAC, comparators, and timers.
- Designed with enhanced mid-range PIC architecture and RISC instruction set.
Product Description
Microchip PIC16F18875-I/PT is an advanced 8-bit PIC microcontroller featuring a 32 MHz maximum CPU speed, 14kB of FLASH memory, and a 44-pin TQFP surface mount package. This device is based on Microchip’s enhanced mid-range core architecture with RISC instruction set, delivering efficient performance for a variety of embedded applications.
It offers a broad operating voltage range from 1.8V to 5.5V and supports various low-power modes including Sleep, IDLE, and DOZE to optimize energy consumption in battery-powered or low-power devices.
The microcontroller includes 1.024kB RAM and 36 programmable I/O pins allowing flexible interfacing. Peripheral features comprise a 10-bit Analogue-to-Digital Converter with computation (ADC2) supporting up to 36 channels, a 5-bit Digital-to-Analogue Converter (DAC), two analogue comparators, multiple timers (7 total), and communications interfaces such as I2C, SPI, and EUSART.
Additional built-in hardware includes configurable logic cells, waveform generators, capture/compare/PWM modules, watchdog timer, power-on reset, brown-out reset, and in-circuit programming/debugging capabilities making it suitable for industrial, automotive, consumer electronics, and other embedded systems.
The device operates reliably in temperature environments from -40°C to 85°C and complies with RoHS standards ensuring environmental safety. Maximum Clock Frequency: 32 MHz. Program Memory Size: 14kB FLASH. RAM Size: 1.024kB.
Pin Count: 44, Surface Mount TQFP Package. Data Bus Width: 8 bit. Supports interfaces: I2C, SPI, and EUSART. Low Power Consumption Modes: Sleep mode at 50 nA @ 1.8V. Advanced ADC with computation capability across 36 channels.
Multiple timers and PWM output modules. Complete peripheral module disable for power saving. This microcontroller is ideal for electronic embedded designs requiring a compact, energy-efficient processor with versatile peripheral support.
Explore more Microchip Microcontrollers and components at EnvMart for your industrial and commercial applications.
Looking to purchase in bulk?
- Purchase item in bulk quantity
- Get best price for your business
Frequently Asked Questions
The maximum clock frequency of the PIC16F18875-I/PT microcontroller is 32 MHz.
This microcontroller features a program memory size of 14 kB FLASH.
It includes 36 programmable I/O pins for flexible interfacing.
The operating voltage range for the PIC16F18875-I/PT is from 1.8V to 5.5V.
This model supports multiple communication interfaces including I2C, SPI, and EUSART.
The RAM size of this microcontroller is 1.024 kB.
It operates reliably within a temperature range of -40°C to 85°C.
The PIC16F18875-I/PT is packaged in a 44-pin TQFP surface mount type.
This model includes a total of 7 timers.
In sleep mode, it consumes 50 nA at 1.8V (typical).
Yes, it complies with RoHS standards, ensuring environmental safety.
The instruction set architecture is based on RISC (Reduced Instruction Set Computing).
