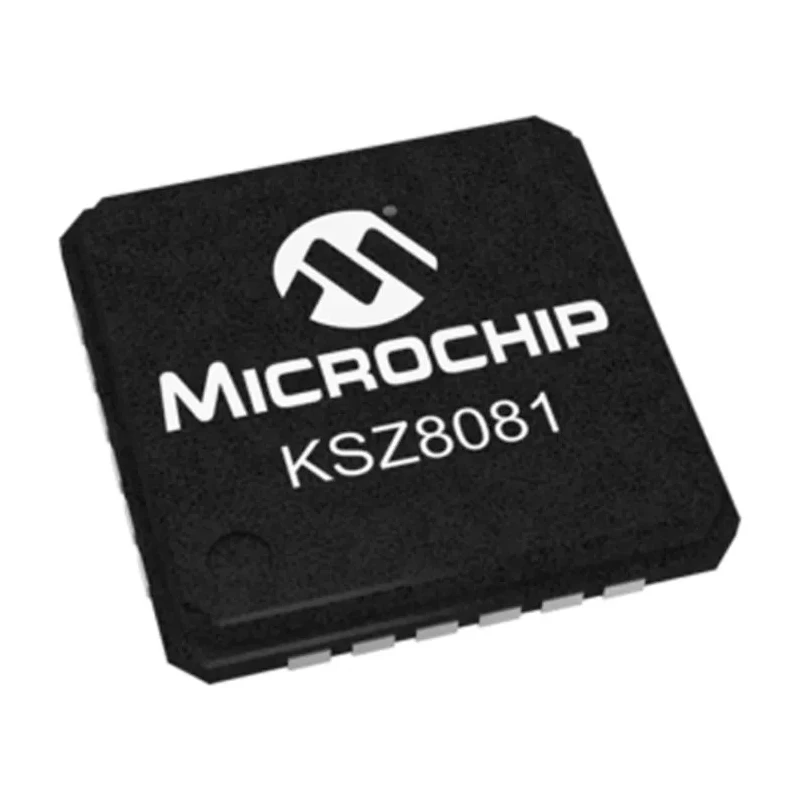

Microchip 24-Pin QFN Ethernet Transceiver 3.3 V 100 Mbps RMII 3.3V KSZ8081RNAIA-TR

Microchip KSZ8081RNAIA-TR is a 24-pin QFN Ethernet Transceiver designed for 3.3 V operation, offering 100 Mbps data transfer rates with RMII interface compatibility. This transceiver supports both 100Base-TX and 10Base-T communication modes, making it suitable for a wide range of Ethernet applications including industrial networking and embedded system interfaces.

The device operates reliably over a temperature range of -40°C to 85°C, ensuring stable performance in harsh environments. Its compact QFN packaging, measuring 4 mm x 4 mm with a height of 800 μm, enables space-efficient PCB designs. Featuring a low supply current of 47 mA at 3.3 V, it is optimized for power-sensitive applications.

Microchip’s KSZ8081RNAIA-TR includes local digital and remote analogue loopback modes, facilitating diagnostics and testing during manufacturing and deployment. The transceiver complies with the IEEE 802.3 Ethernet standard and is Pb-Free, meeting environmental compliance requirements.

This product is ideal for integration into Fast Ethernet physical layer solutions, providing a compact, energy-efficient, and standards-compliant interface IC for electronic design and semiconductor applications.

Supports 100Base-TX and 10Base-T communication modes. Single transceiver in a 24-pin QFN surface mount package. Broad operating temperature from -40°C to 85°C. Low power consumption with 47 mA supply current at 3.3 V. Diagnostic loopback modes for local and remote testing.

Compact dimensions: 4 mm length, 4 mm width, 800 μm height. Pb-Free package ensuring environmental compliance. Compliant with IEEE 802.3 Ethernet standards. Applications include embedded Ethernet communications and industrial networking.
