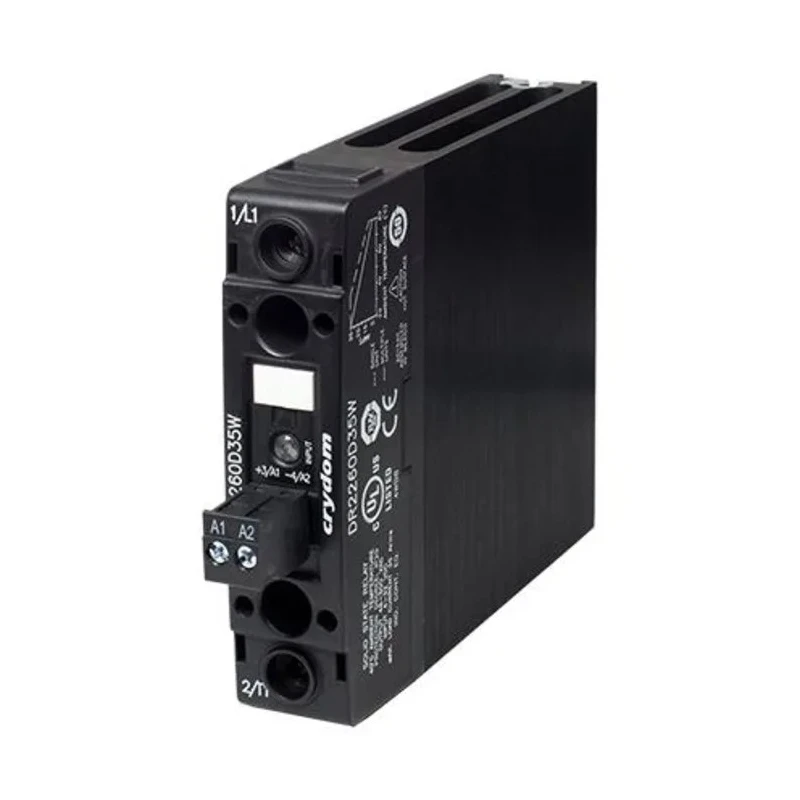

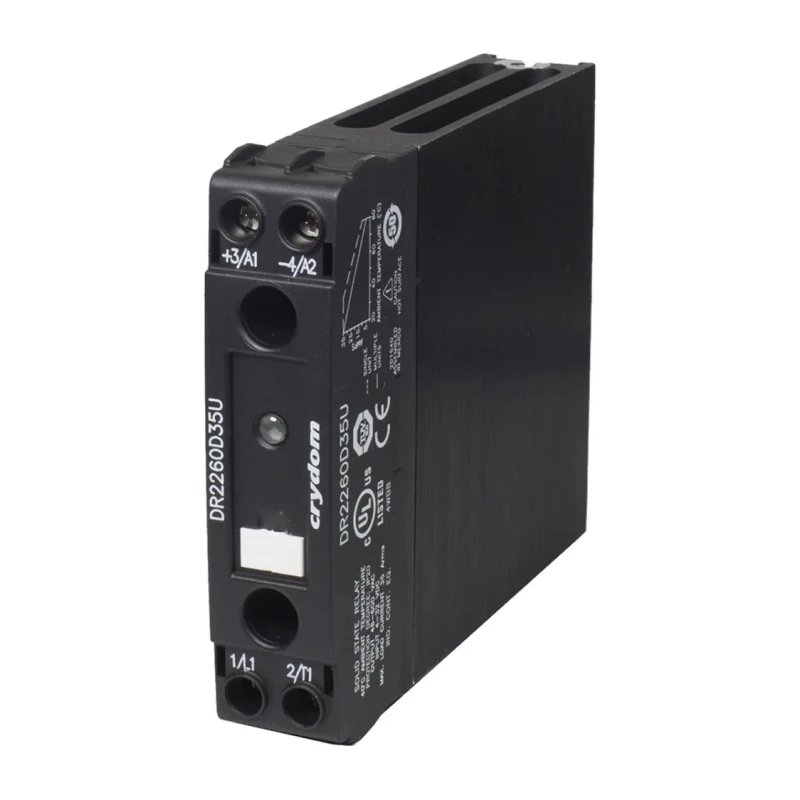

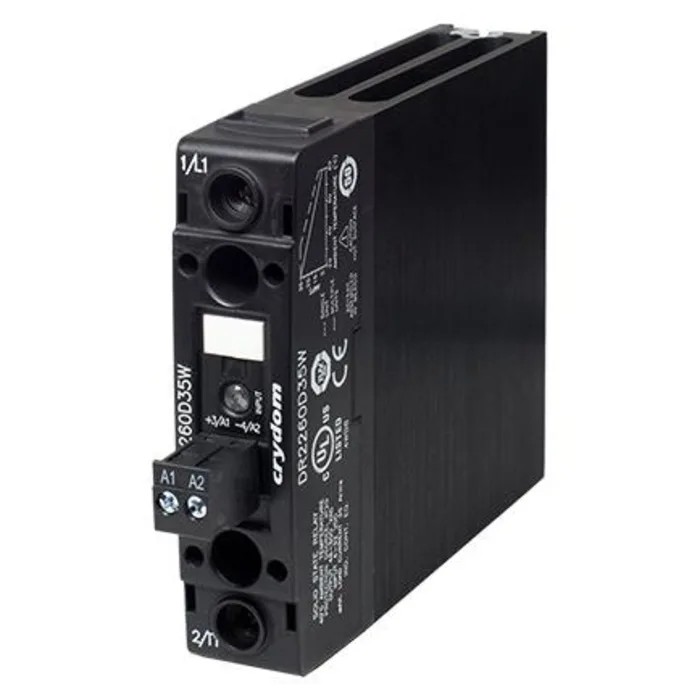

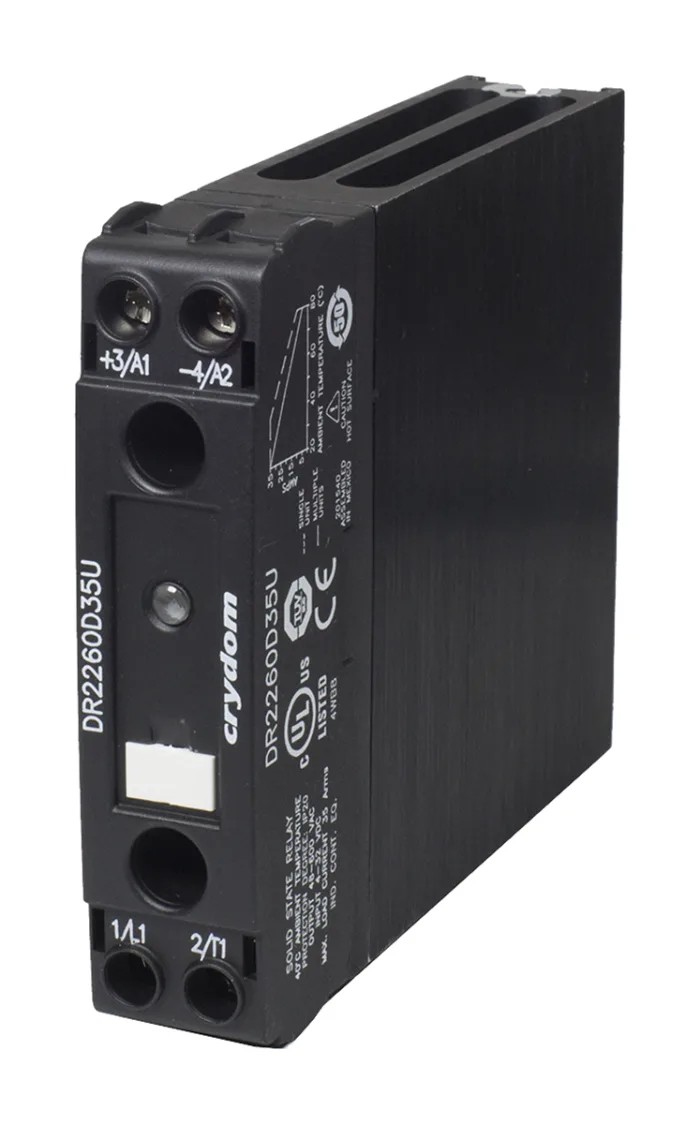

Crydom DR22 Series Solid State Relay 30A Load 600 Vrms Load DIN Rail Mount MOSFET Output
Specifications
| Country of Origin | Mexico |
|---|---|
| Brand | Crydom |
| Height | 93.2mm |
| Length | 22.5mm |
| Model | DR22 |
| IP Rating | IP20 |
| Width | 116mm |
| Mount Type | DIN Rail |
| Output type | MOSFET |
| Series | DR22 |
| Maximum Operating Temperature | 80°C |
| Contact Configuration | SP |
| Capacitance | 8pF |
| Minimum Operating Temperature | -40°C |
| Terminal type | Screw |
| Switching Function | Zero Voltage Switching |
| Maximum Load Current | 30A |
| Standards/Approvals | RoHS, CE |
| Minimum Control Voltage | 4V dc |
| Maximum Control Voltage | 32V dc |
| Off State Leakage Current | 0.2mA |
Key Features
- High maximum load current of 30 amps for heavy-duty switching tasks.
- DIN rail mounting ensures easy installation and secure fitting.
- MOSFET output type for reliable and silent operation without mechanical wear.
- Zero voltage switching function minimizes electrical noise and stress on loads.
- Durable screw terminal connections for secure wiring.
- Flame-resistant housing with self-extinguishing properties for enhanced safety.
- Wide operating temperature range from -40°C to 80°C for versatile applications.
- IP20 rated enclosure provides finger-safe protection and resistance to solid object ingress.
Product Description
The Crydom DR2260D30U solid state relay from the DR22 Series is a high-performance industrial-grade relay designed to safely and efficiently control high-power loads up to 30 amperes with a maximum load voltage of 600 Vrms. The device mounts on a DIN rail, facilitating straightforward integration into automation and control panels typically used in manufacturing, HVAC, and industrial machinery.
Featuring a MOSFET output configuration, this SSR ensures quiet switching without the mechanical wear and tear associated with conventional electromechanical relays. Its zero voltage switching capability further reduces electrical noise and prolongs the lifespan of both the relay and the connected load.
The relay is equipped with screw terminals for secure electrical connections, maintaining stable and reliable contact under industrial operating conditions. Its flame-resistant housing is self-extinguishing, stopping burning within 10 seconds if exposed to fire, making it suitable for use in sensitive or hazardous environments.
With an operating temperature range from -40°C to 80°C and an IP20 rating for finger protection, the DR2260D30U is well-suited for a broad range of industrial applications, including motor switching on assembly lines and process control systems.
High maximum load current of 30 amperes enables handling of heavy-duty industrial loads. DIN rail mount design simplifies installation into control panels. Zero voltage switching reduces electrical noise and mechanical stress.
Screw terminal connections provide secure and easy wiring. Flame-resistant, self-extinguishing housing enhances operational safety. Wide temperature operating range from -40°C to 80°C ensures durability. Finger-safe IP20 protection rating safeguards against accidental contact with internal components.
Overall, the Crydom DR2260D30U delivers reliable, long-lasting performance in demanding electrical, automation, and industrial control environments. It is a reliable solution for managing power loads in manufacturing, water treatment, HVAC, and other industrial applications.
Explore EnvMart's selection for the best in industrial Solid State Relays and automation components.
Looking to purchase in bulk?
- Purchase item in bulk quantity
- Get best price for your business
Frequently Asked Questions
The maximum load current for the Crydom DR22 Series solid state relay is 30 amperes.
This model features a MOSFET output type, which allows for reliable and silent operation without mechanical wear.
The operating temperature range of this relay is from -40°C to 80°C, making it suitable for various industrial applications.
It is designed for DIN rail mounting, which simplifies installation and ensures secure fitting in control panels.
The enclosure has an IP20 rating, providing finger-safe protection against accidental contact with internal components.
This relay features zero voltage switching, which minimizes electrical noise and stress on loads during operation.
The dimensions of the relay are 93.2mm in height, 22.5mm in length, and 116mm in width.
It is equipped with screw terminal connections for secure and stable wiring under industrial conditions.
The minimum control voltage is 4V dc, while the maximum control voltage is 32V dc.
The relay complies with RoHS and CE standards, ensuring it meets certain safety and environmental regulations.
The off state leakage current is 0.2mA, indicating minimal current flow when the relay is not activated.
This relay is suitable for various industrial applications, including motor switching on assembly lines and process control systems.
