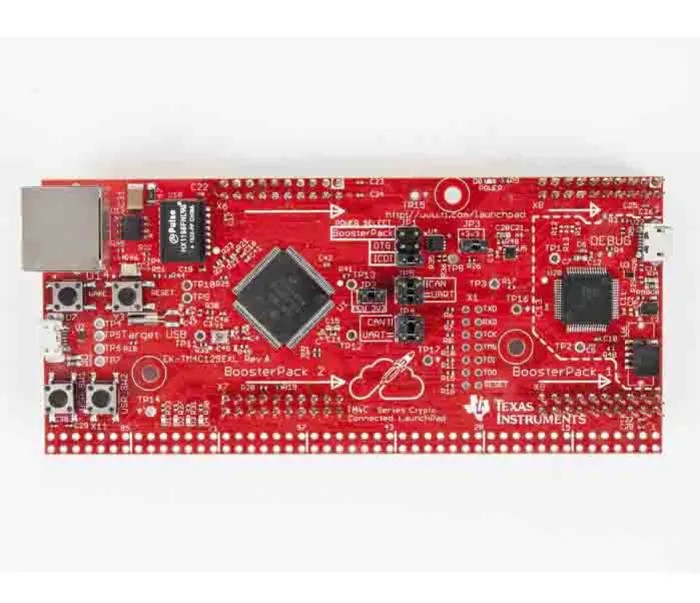

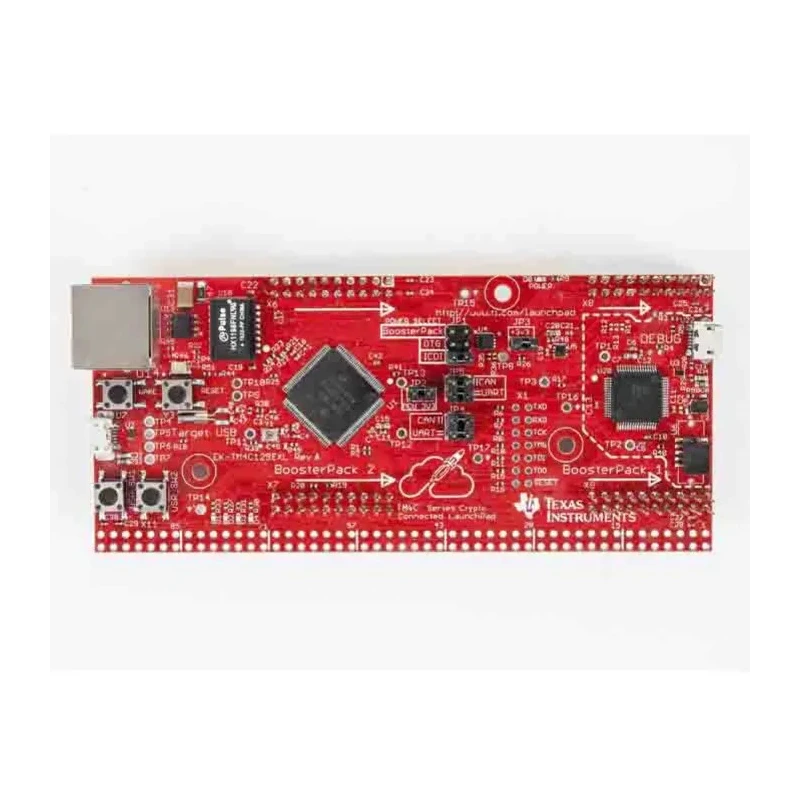

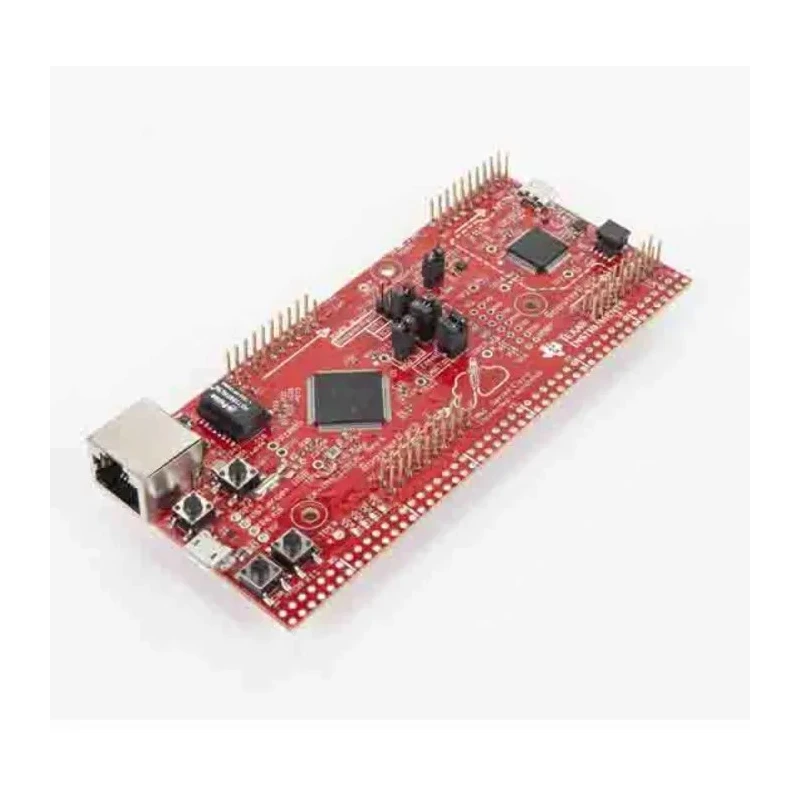

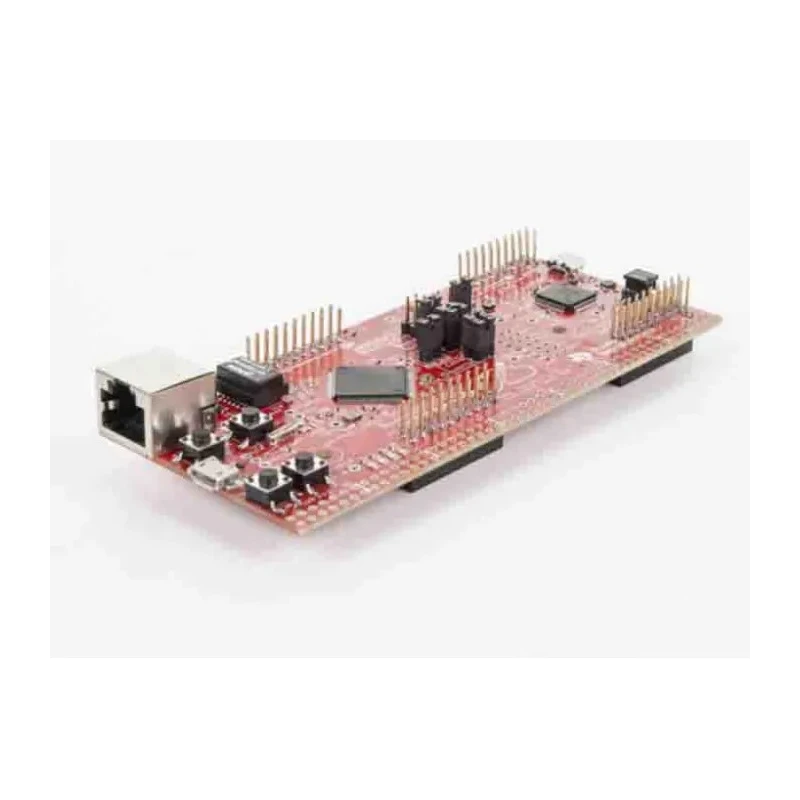

Texas Instruments Crypto Connected LaunchPad Evaluation Kit ARM Cortex-M4F 120MHz USB EK-TM4C129EXL

Texas Instruments EK-TM4C129EXL Crypto Connected LaunchPad Evaluation Kit is a versatile ARM Cortex-M4F-based microcontroller evaluation platform operating at 120MHz, designed for advanced cryptographic connected applications and embedded system development. The evaluation board integrates the TM4C129ENCPDT microcontroller, optimized for secure communications and feature-rich control capabilities.

This evaluation kit supports a wide range of connectivity options including 10/100 Ethernet MAC with PHY, USB 2.0 interface, multiple serial communication ports, and real-time control features such as motion control PWM. It is equipped with user-friendly hardware controls including two user switches, four user LEDs, as well as dedicated reset and wake switches, facilitating ease of testing and interaction during development.

The LaunchPad includes expansion flexibility with a breadboard expansion option and dual BoosterPack XL connectors, allowing developers to add additional modules and tailor configurations to their application needs. The pre-installed demo software enables secure remote monitoring and control on internet browsers, providing a practical demonstration of cloud connectivity and cryptographic capabilities.

This kit supports extensive software and toolchain compatibility, including Texas Instruments' Tivaware and TI RTOS platforms, WolfSSL security libraries, Exosite IOT software, and multiple compilers such as CCS, IAR, Keil, Mentor, and GCC, ensuring a robust development environment for embedded applications.

Included in the kit are essentials to get started quickly: the EK-TM4C129EXL PCBA evaluation board, a 90-degree 49x2 breadboard connector, retractable Ethernet cable, USB debug cable, and comprehensive Read Me First instructions. The Tiva C Series MCUs underpinning this kit offer scalable memory and package options with advanced analog and connectivity peripherals.

The kit features the TM4C129ENCPDT microcontroller with high-performance capabilities. Includes connectivity options such as 10/100 Ethernet MAC, PHY, and USB 2.0 interface. Supports multiple serial communication interfaces and real-time control features like PWM.

The board has two user switches, four user LEDs, reset and wake switches, and breadboard expansion capability. Supports two BoosterPack XL expansion connectors for extensive modular development. Pre-programmed demo enables secure remote monitoring and control via internet browsers.

Compatible with TI RTOS, WolfSSL, Exosite, and multiple development toolchains. Comes with breadboard connector, Ethernet cable, and USB debug cable. TivaWare for C Series software and out-of-the-box demo available for download.

This evaluation kit is ideal for industrial embedded systems, IoT connectivity, cryptography research, and educational development in microcontroller programming. Leverage the Texas Instruments ecosystem for rapid prototyping and secure application design. Explore more Evaluation Kits and development boards in the Electronics & Electricals section at EnvMart.
