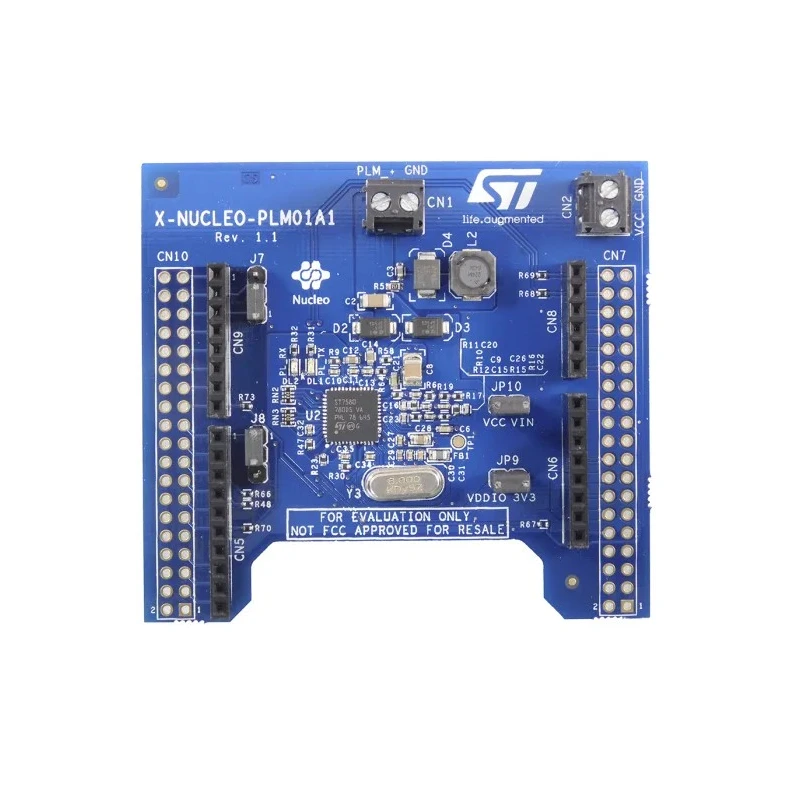

STMicroelectronics Communication & Wireless Development Evaluation Kit 250 kHz PSK Modem FSK STM32 Nucleo X-NUCLEO-PLM01A1
Specifications
| Country of Origin | India |
|---|---|
| Brand | STMicroelectronics |
| Model | X-NUCLEO-PLM01A1 |
| Technology | PSK modem, FSK |
| Interface Type | GPIO, UART |
| For Use With | STM32 Nucleo |
| Standards/Approvals | RoHS |
| Maximum Frequency | 250kHz |
| Kit Classification | Evaluation Kit |
| Featured Device | ST7580 |
| Kit Name | NUCLEO |
Key Features
- This evaluation kit features a PSK modem and FSK technology for reliable data transmission.
- Operates at a maximum frequency of 250 kHz, supporting industrial applications.
- Includes GPIO and UART interface for flexible connectivity options.
- Compatible with STM32 Nucleo boards with Arduino UNO R3 connectors for easy integration.
- The ST7580 device supports power line networking with up to 28.8 kbps transfer rate.
- Equipped with TX and RX filters optimized for CENELEC B frequency band (95-125 kHz).
- Supplies analog voltage from 8 to 18 V and digital voltage at 3.3 V for stable operation.
- Suitable for IoT, Smart Home, and Smart City applications requiring wired communication solutions.
Product Description
STMicroelectronics X-NUCLEO-PLM01A1 Communication & Wireless Development Evaluation Kit integrates the ST7580 power line networking system-on-chip tailored for the STM32 Nucleo platform. Operating at a maximum frequency of 250 kHz, this evaluation board supports robust wired communication through PSK and FSK modulation techniques, delivering data rates up to 28.8 kbps.
The kit is designed with industrial and consumer applications in mind, enabling development of advanced Internet of Things (IoT) and connected systems. It features GPIO and UART interfaces providing flexible connectivity and is fully compatible with STM32 Nucleo boards using Arduino UNO R3 connectors, easing prototyping and integration.
Power supply is supported with an analog input of 8 to 18 V and a regulated digital 3.3 V output, ensuring stable and efficient operation. The included TX and RX filters are optimized for the CENELEC B frequency band (95-125 kHz), making it well-suited for Smart Home, Smart City, and other IoT ecosystems that require reliable power line communication.
This Evaluation Kit is RoHS compliant and carefully engineered to facilitate fast development cycles for communication and wireless solutions within the STM32 ODE "Connect Series" of expansion boards.
This kit equips developers with an effective power line communication platform using the ST7580 modem. Robust modulation with PSK and FSK encodings ensures noise-resilient data transmission. Broad voltage supply range accommodates diverse power environments in industrial setups.
GPIO and UART interface types provide versatile communication and control capabilities. Optimized filters and transmission circuits are tailored for European CENELEC B frequency band compliance. Arduino UNO R3 connector compatibility enables easy integration with existing STM32 Nucleo development boards.
The product supports development of IoT applications requiring wired communication via power lines.
This product is ideal for industrial, IoT, smart home, and smart city wireless communication development and prototyping. For more cutting-edge communication tools, explore our Communication & Wireless Development Tools category at EnvMart.
Looking to purchase in bulk?
- Purchase item in bulk quantity
- Get best price for your business
Frequently Asked Questions
The evaluation kit operates at a maximum frequency of 250 kHz.
It supports PSK (Phase Shift Keying) and FSK (Frequency Shift Keying) modulation technologies for reliable data transmission.
The ST7580 device supports a data transfer rate of up to 28.8 kbps.
This model features GPIO and UART interfaces, providing flexible connectivity options.
It requires an analog voltage supply ranging from 8 to 18 V and provides a regulated digital output of 3.3 V.
This evaluation kit is suitable for industrial applications, IoT, Smart Home, and Smart City solutions requiring wired communication.
The country of origin for this evaluation kit is India.
This evaluation kit is RoHS compliant, ensuring it meets environmental standards.
The product is classified as an Evaluation Kit, designed for development and prototyping purposes.
The featured device included in this evaluation kit is the ST7580 power line networking system-on-chip.
