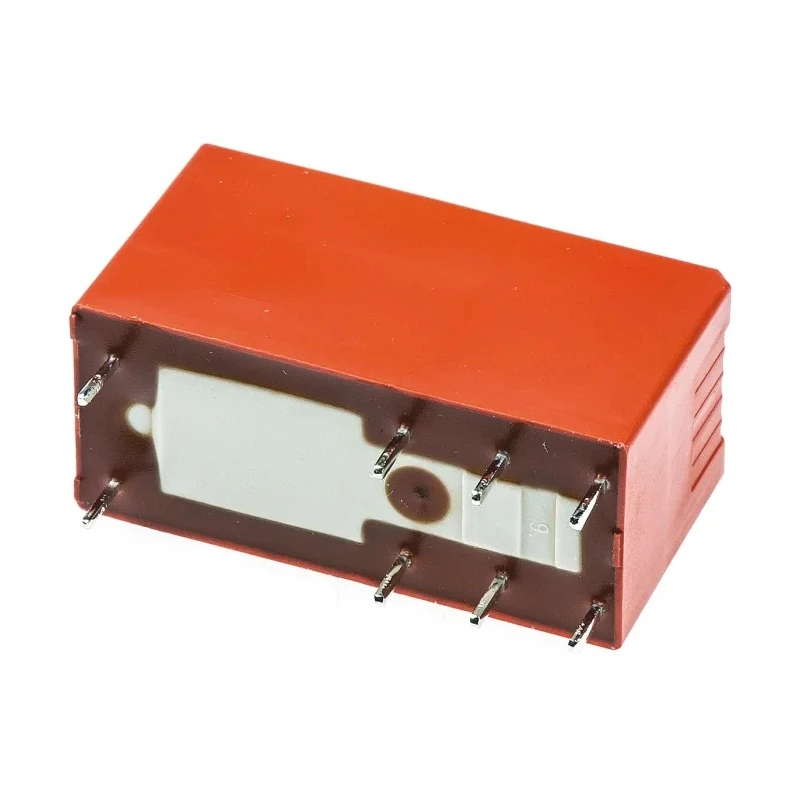

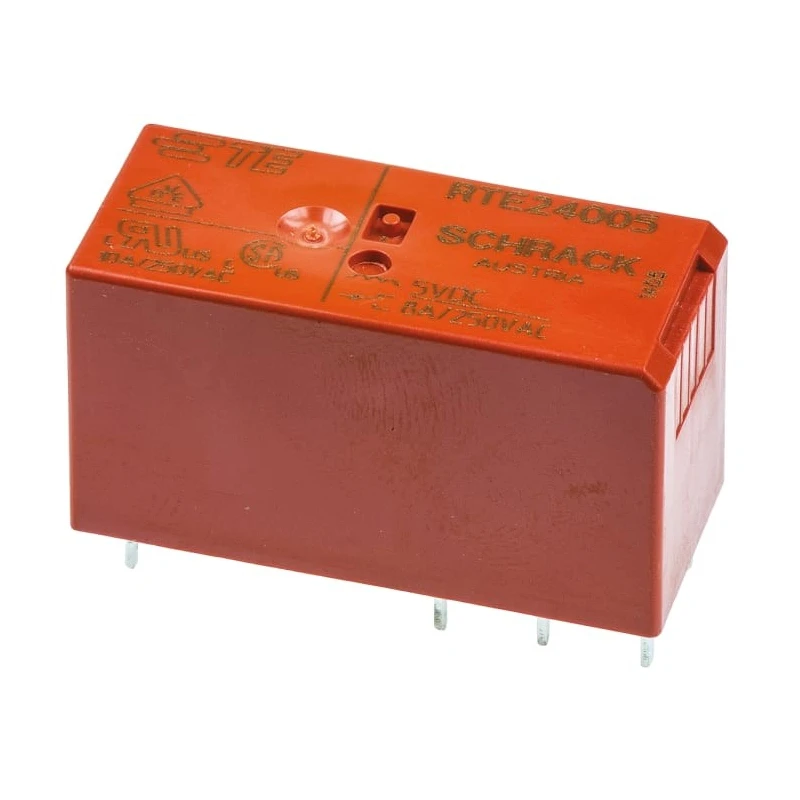

TE Connectivity RT2 Series PCB Power Relay 5V DC Coil 8A Switching Current DPDT RTE24005

TE Connectivity RTE24005 is a PCB power relay from the RT2 series designed for industrial, automation, and electronic applications requiring reliable switching performance. Featuring a 5V DC coil voltage and DPDT contact configuration, it supports an 8A switching current and a switching AC voltage of up to 400V AC. The relay uses solder terminals and is intended for through-hole PCB mounting, providing robust mechanical and electrical connections.

The relay's silver nickel alloy contacts ensure excellent conductivity and long service life under heavy electrical loads. It operates efficiently with a coil resistance of 62 ohms and low coil power consumption of 403mW, ideal for power-sensitive circuits. The device withstands a wide operating temperature range from -40°C to 85°C, suitable for demanding industrial and domestic environments.

Its compact physical dimensions (29mm length, 15.7mm height, 12.7mm width) allow easy incorporation into various PCB designs. This relay is certified to international standards including VDE and cULus, confirming its compliance with safety and quality requirements.

Applications include interface circuits, automation systems, heating controls, security lighting, and other domestic and industrial electrical control systems. The RT2 relay series offers flux-proof pinning with a 5mm pitch, providing improved reliability in various environments.

TE Connectivity's RT series relays also include variants such as RT1, RT3, RTB, RTD, and RT4, each offering specific mounting and environmental protection features to cater to diverse application needs.

The relay features a coil voltage of 5V DC for stable control. Double-pole double-throw (DPDT) configuration allows flexible switching. Rated switching current is 8A with AC voltage up to 400V. Robust silver nickel alloy contacts ensure durability and performance.

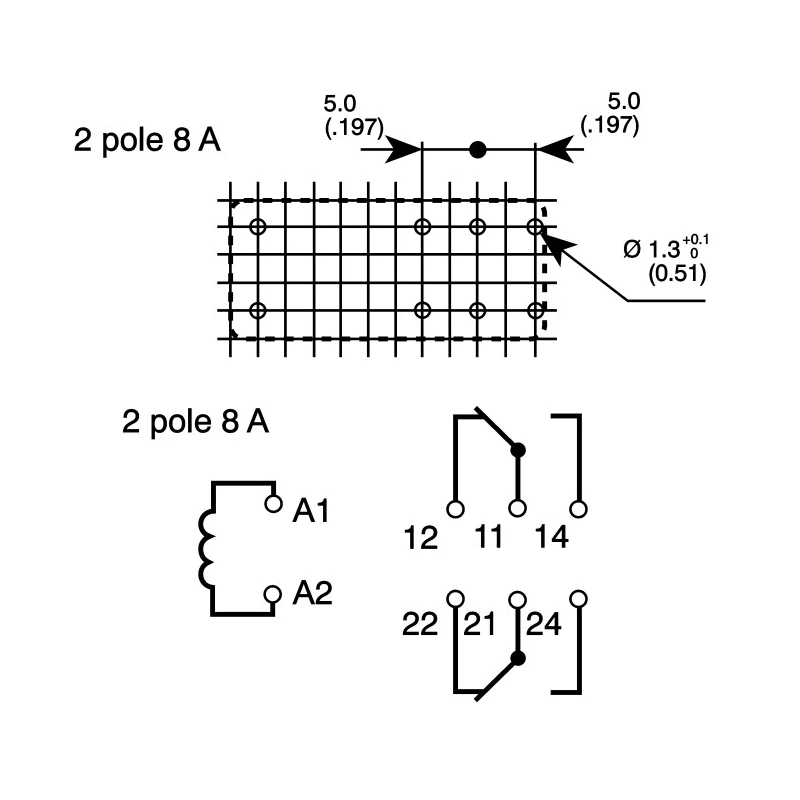

Wide ambient temperature range from -40°C to 85°C supports harsh conditions. Low coil power consumption of 403mW optimizes energy efficiency. Dimensions suitable for PCB mounting with 5mm pin spacing. International certifications from VDE and cULus validate safety.
