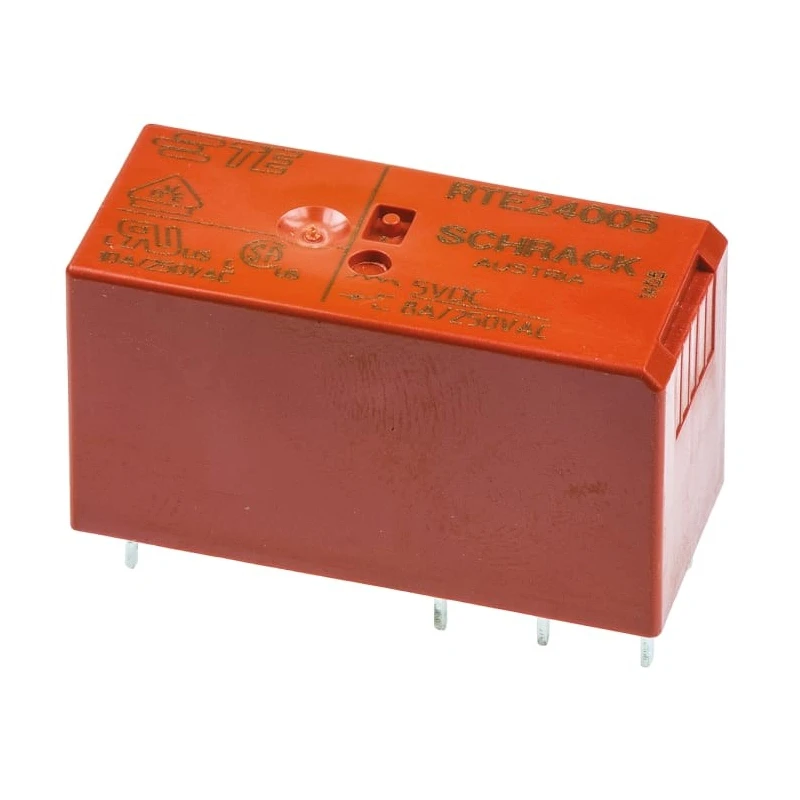

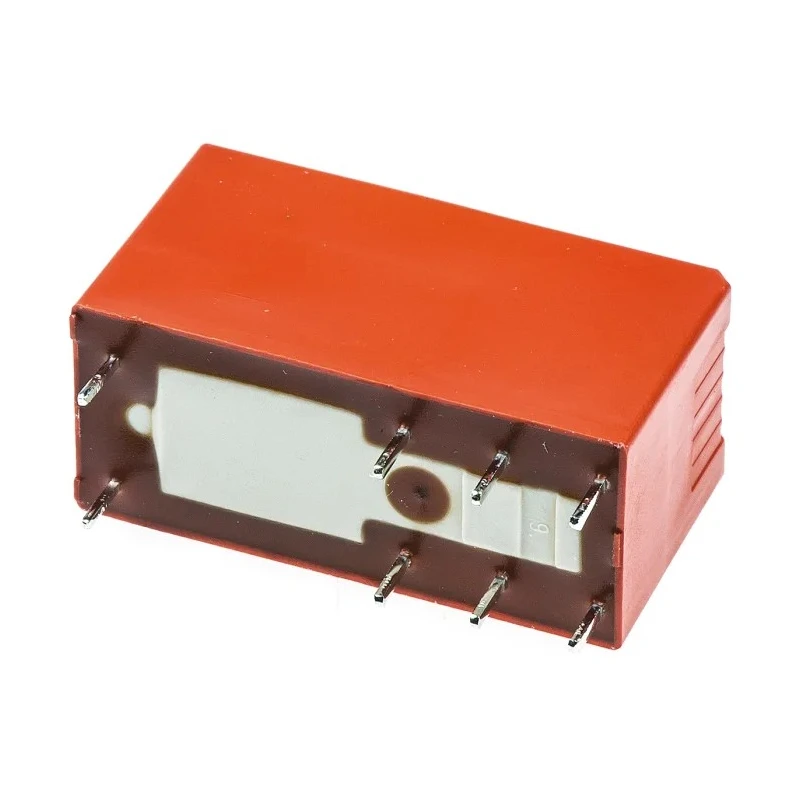

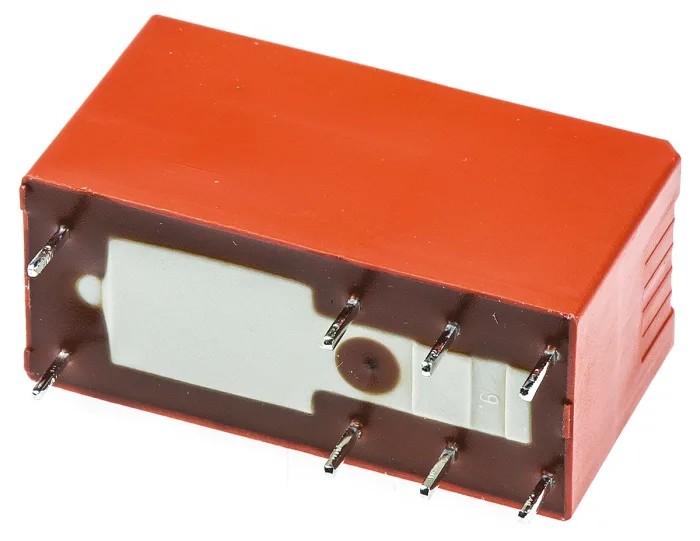

TE Connectivity Power Relay 5V DC Coil 8A Switching Current DPDT PCB Mount RTE24005
Specifications
| Country of Origin | Austria |
|---|---|
| Brand | TE Connectivity |
| Height | 15.7mm |
| Length | 29mm |
| Model | RTE24005 |
| Width | 12.7mm |
| Mount Type | PCB |
| Contact Material | Silver Nickel Alloy |
| Series | RT2 |
| Maximum Operating Temperature | 85°C |
| Contact Configuration | DPDT |
| Minimum Operating Temperature | -40°C |
| Switching Current | 8A |
| Terminal type | Solder |
| Standards/Approvals | VDE, cULus |
| Pay online using | Or choose to pay later via bank transfer |
| RS Stock No. | 198-6898Brand: TE ConnectivityManufacturers Part No.: RTE24005Distrelec Article No.: 300-11-958 |
| Coil Resistance | 62Ω |
| Coil Voltage | 5V dc |
| Switching AC Voltage | 400V ac |
| Coil Power | 403mW |
Key Features
- The relay supports a coil power of 403 mW and coil resistance of 62 Ω.
- Designed for robust operation with a temperature range of -40°C to 85°C.
- Features a silver nickel alloy contact material for reliable electrical conduction.
- Switching AC voltage rating is 400V AC and switching power rating is 2 kVA.

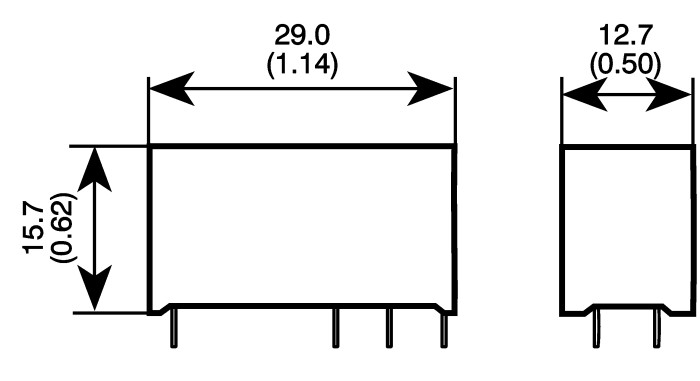

- Compact dimensions of 29mm length, 12.7mm width, and 15.7mm height suit PCB integration.

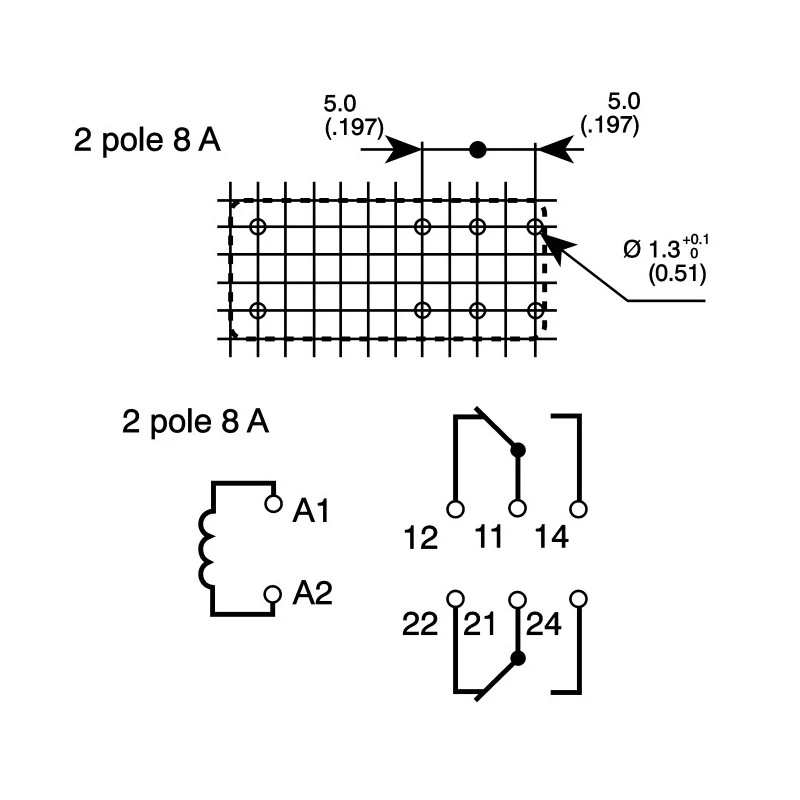

- Mount type is PCB with solder terminal type, series RT2 with 5mm pinning.
- Conforms to standards including VDE and cULus for safety and quality assurance.
- Application areas include interface circuits, automation, domestic systems, security lighting, and heating systems.
Product Description
TE Connectivity RTE24005 is a high-quality power relay for printed circuit board (PCB) mounting featuring a 5V DC coil voltage and an 8A switching current capability. The DPDT (Double Pole Double Throw) contact configuration ensures flexible switching options suitable for varied industrial and domestic applications.
This relay operates efficiently within a temperature range from -40°C to 85°C, making it suitable for harsh environmental conditions. It features a silver nickel alloy contact material which provides excellent conductivity and durability over prolonged operational life. The coil power consumption is low at 403 mW with a coil resistance of 62 ohms, promoting energy efficiency.
With a switching AC voltage rating of 400V AC and switching power of 2 kVA, it can handle significant loads safely. The compact dimensions (29mm x 12.7mm x 15.7mm) and PCB mount type with solder terminals facilitate seamless integration into various electronic assemblies.
The RTE24005 belongs to the RT2 series which ensures flux proof 5mm pinning for reliable assembly and conductivity. This product complies with industry standards including VDE and cULus, guaranteeing safety and quality for industrial, HVAC, manufacturing, automation, and domestic applications.
The relay is ideal for interface circuits, automation modules, security lighting systems, and heating control devices. Its double pole double throw (DPDT) configuration allows versatile switching functionalities. The relay housing and pin layout support robust soldering and mounting on PCBs.
The product is made in Austria, ensuring stringent manufacturing quality standards. Reliable contact material and coil design provide consistent switching performance. Compact design supports space-constrained applications without compromising performance.
Certified by relevant safety and compliance authorities including VDE and cULus.
This TE Connectivity power relay with model RTE24005 is an excellent choice for engineers and technicians requiring a dependable switching solution in critical applications. EnvMart offers this product as part of its high-quality relay range catering to electrical and automation needs.
Explore more products in our Power Relays category.
Looking to purchase in bulk?
- Purchase item in bulk quantity
- Get best price for your business
Frequently Asked Questions
The relay has a switching current capacity of 8A, making it suitable for various applications.
This model operates with a coil voltage of 5V DC, which is essential for its activation.
The relay has compact dimensions of 29mm in length, 12.7mm in width, and 15.7mm in height, facilitating easy PCB integration.
It operates efficiently within a temperature range of -40°C to 85°C, suitable for harsh environments.
This relay features a Double Pole Double Throw (DPDT) contact configuration, allowing for flexible switching options.
The switching AC voltage rating is 400V AC, enabling it to handle significant loads safely.
The coil resistance is 62Ω, which contributes to its energy efficiency.
The contacts are made from silver nickel alloy, providing reliable electrical conduction.
It conforms to standards including VDE and cULus, ensuring safety and quality assurance.
This model supports PCB mounting with solder terminals, designed for easy integration into electronic assemblies.
It is suitable for interface circuits, automation, domestic systems, security lighting, and heating systems.
The relay is manufactured in Austria, ensuring stringent quality standards in production.
