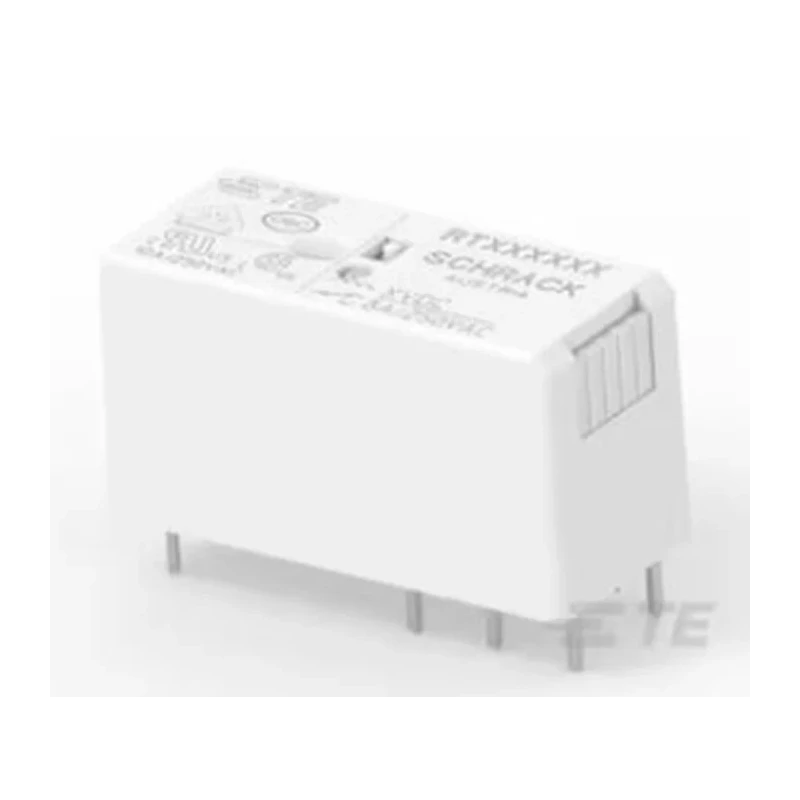

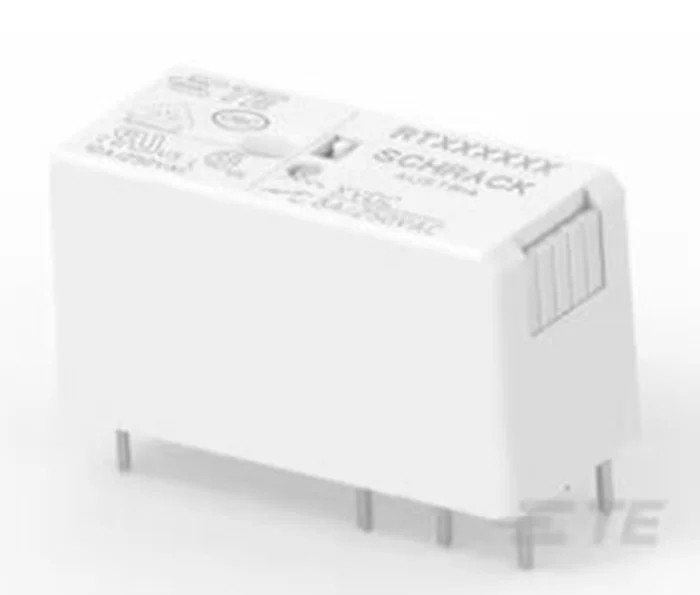

TE Connectivity RT2 Series PCB Power Relay, 24V dc Coil, 8A Switching Current, DPDT RTE24024 1-1393243-0
Specifications
| Country of Origin | Austria |
|---|---|
| Brand | TE Connectivity |
| Height | 15.7mm |
| Length | 29mm |
| Model | RTE24024 1-1393243-0 |
| Width | 12.7mm |
| Mount Type | PCB |
| Contact Material | Silver Nickel Alloy |
| Series | RT2 |
| Maximum Operating Temperature | 85°C |
| Contact Configuration | DPDT |
| Minimum Operating Temperature | -40°C |
| Switching Current | 8A |
| Terminal type | Solder |
| Standards/Approvals | RoHS |
| Pay online using | Or choose to pay later via bank transfer |
| Coil Resistance | 1.4kΩ |
| Coil Voltage | 24V dc |
| Switching AC Voltage | 400V ac |
| Coil Power | 400mW |
Key Features
- Operates with a coil resistance of 1.4kΩ ensuring efficient coil performance.
- Silver nickel alloy contact material provides durable and corrosion-resistant contacts.

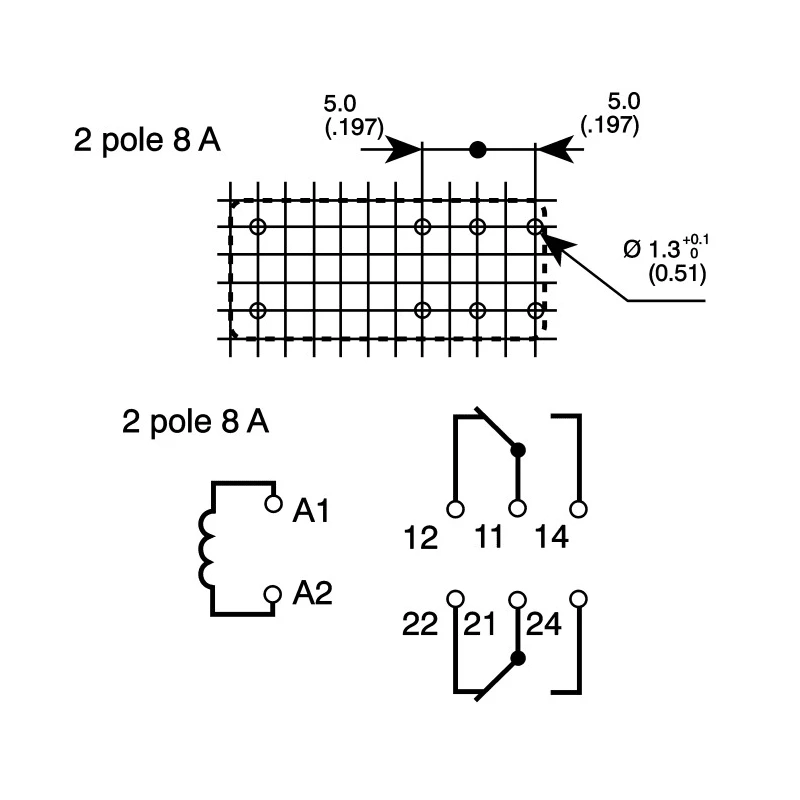

- Designed for PCB mounting with solder terminal type and 5mm pinning pitch.
- Handles switching AC voltage up to 400V AC and switching power of 2kVA.
- Operates reliably over a temperature range from -40°C to 85°C.

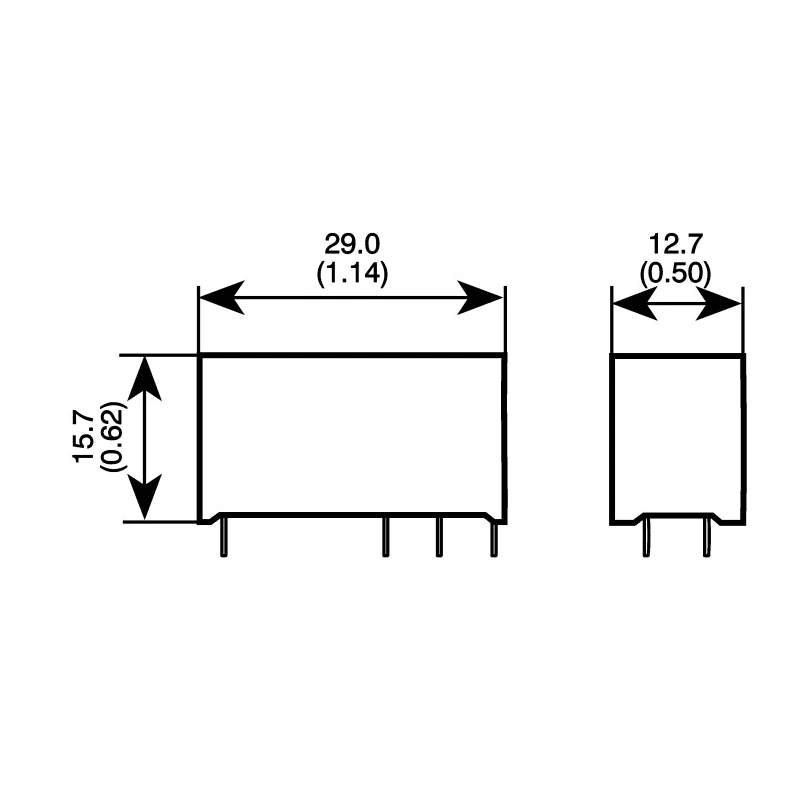

- Compact dimensions measuring 29mm length, 12.7mm width, and 15.7mm height.
- Non-latching relay suitable for automation, heating systems, security lighting, and interface applications.
- Complies with RoHS standards and carries CSA, UL, and VDE certifications.
Product Description
TE Connectivity RTE24024 1-1393243-0 is a high-quality RT2 series PCB power relay designed for industrial and automation applications. It features a 24V dc coil and a 8A switching current with a DPDT contact configuration.
The relay utilizes silver nickel alloy contacts that ensure excellent conductivity and wear resistance, making it suitable for long-term use in demanding environments. With a coil resistance of 1.4kΩ and coil power consumption of 400mW, this relay offers efficient performance.
Its compact size, with dimensions 29mm x 12.7mm x 15.7mm, allows for convenient PCB mounting using through-hole solder terminals spaced at 5mm. This non-latching relay provides switching capacity up to 2kVA and supports AC voltage switching up to 400V.
Engineered to operate under a wide temperature range from -40°C to 85°C, it is ideal for applications such as automation domestic devices, heating systems, security lighting, and industrial interface circuits. The relay is RoHS compliant and certified by CSA, UL, and VDE standards, assuring safety and material compliance.
Manufactured in Austria, this product guarantees robust construction and reliable operation for various industrial, laboratory, and commercial electronic setups. Operates with coil resistance of 1.4kΩ for optimal coil performance.
Equipped with silver nickel alloy contacts ensuring durability. Suitable for through-hole PCB mounting with solder terminals. Handles switching power up to 2kVA and switching voltage of 400V AC. Wide operating temperature range from -40°C to 85°C ensures reliability.
Non-latching design ideal for automation and heating applications. RoHS compliant and certified by CSA, UL, and VDE standards. Compact dimensions facilitate easy integration into PCB designs. Originates from Austria, promising consistent manufacturing quality.
Choose TE Connectivity RT2 series PCB Power Relay for dependable and safe electrical switching in your industrial and commercial electronic projects. Explore more products in EnvMart’s extensive catalog for electrical components and relays.
Explore more products in our Power Relays category.
Looking to purchase in bulk?
- Purchase item in bulk quantity
- Get best price for your business
Frequently Asked Questions
The relay operates with a coil voltage of 24V dc.
It has a maximum switching current of 8A.
This relay features a DPDT (Double Pole Double Throw) contact configuration.
It can handle switching AC voltage up to 400V AC.
The dimensions of the relay are 29mm in length, 12.7mm in width, and 15.7mm in height.
The coil resistance is 1.4kΩ.
It operates reliably over a temperature range from -40°C to 85°C.
The coil power consumption is 400mW.
This model is designed for PCB mounting with solder terminals.
The contacts are made of silver nickel alloy, providing good conductivity and wear resistance.
Yes, it complies with RoHS standards and is certified by CSA, UL, and VDE.
It is suitable for automation, heating systems, security lighting, and interface applications.
